Annotations

A colour-coded pole figure needs a colour scale before its values can be read. Markers, labels, legends, and grids then make particular features identifiable. Together these annotations turn a finished plot into a figure that another reader can interpret and compare. Without marked directions, only a reader who already knows the figure's contents can identify them.

This page starts with numerical colour scales. It then marks known directions and orientations, identifies plotted objects, and adds an angular grid. Each operation modifies an existing figure.

plottingConvention.default('y↑→x');

Colour scales for numerical data

mtexColorbar differs from MATLAB's colorbar in that it addresses the whole MTEX figure. Every axis in a multi-plot gets a colourbar. The example uses two model components so that the plotted pole densities have recognisable maxima.

% define a two-component model ODF
cs = crystalSymmetry('-3m');

mod1 = orientation.byEuler(110*degree,30*degree,80*degree,cs);
mod2 = orientation.byEuler(310*degree,70*degree,40*degree,cs);
odf = 0.7*unimodalODF(mod1) + 0.3*unimodalODF(mod2);

% plot two pole figures
plotPDF(odf,Miller({1,0,0},{1,1,1},cs))

% add a colourbar to each pole figure
mtexColorbar

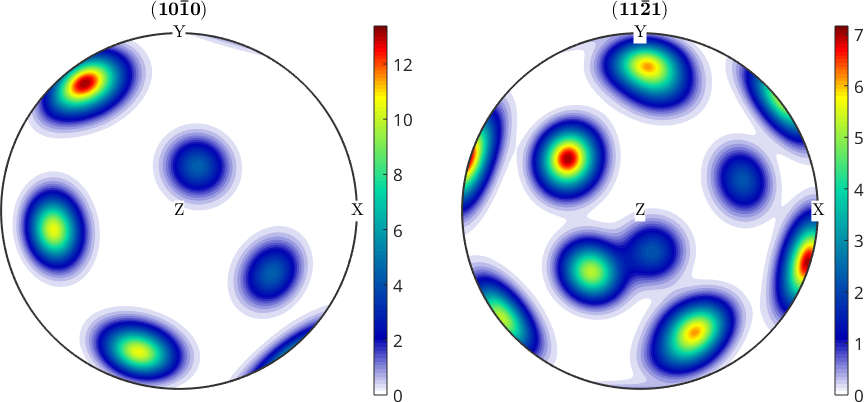

Notice that the two colourbars have different ranges. Equal colours do not yet represent equal pole densities in the two panels. Calling mtexColorbar again removes the colourbars. The 'location' option places the replacements below the panels, while 'title' names their unit. Pole density is measured in multiples of a random distribution, abbreviated mrd.

% remove the vertical colourbars
mtexColorbar

% add horizontal colourbars

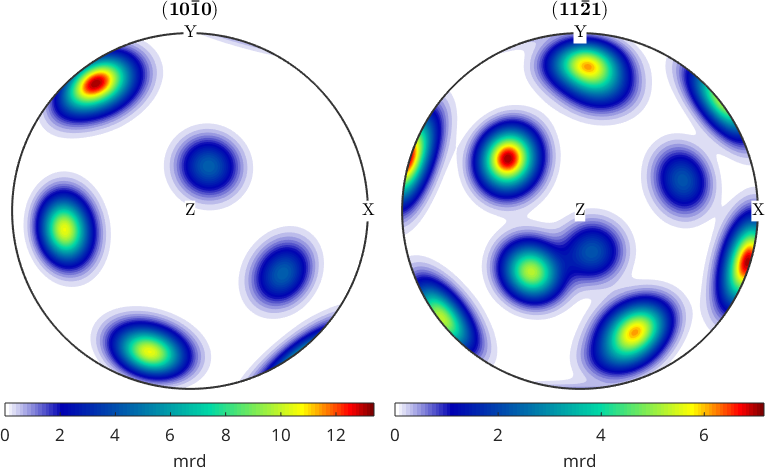

mtexColorbar('location','southoutside','title','mrd')

For a direct comparison, first give every axis the same colour range. One colourbar can then describe the entire figure. The same colour now means the same pole density in both panels. See Colour Coding for choosing the colours themselves.

mtexColorbar             % remove the colourbars
setColorRange('equal');  % use one colour range for all panels
mtexColorbar             % create one colourbar for the figure

Marking directions and orientations

annotate adds to an existing figure without disturbing it. It needs no hold on and does not change the colour range. First mark a specimen direction on both pole figures above. A specimen direction is a direction expressed in the specimen frame. The text passed through 'label' is arbitrary; here it names the vector drawn at \((1,1,1)\).

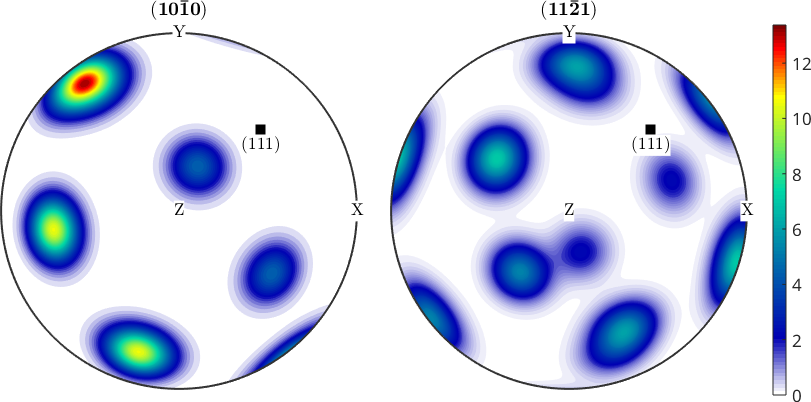

annotate(vector3d(1,1,1),'label',{'(111)'},'BackgroundColor','w')

In an inverse pole figure, a crystal direction is the natural annotation. It is a direction expressed in the crystal frame. The 'all' option draws every symmetrically equivalent direction. The 'labeled' option writes the Miller indices beside those markers.

plotIPDF(odf,[xvector,zvector],'antipodal','marginx',10)
mtexColorMap white2black

annotate(Miller({2,-1,-1,0},{2,-1,-1,1},cs), ...
  'all','labeled','BackgroundColor','yellow')

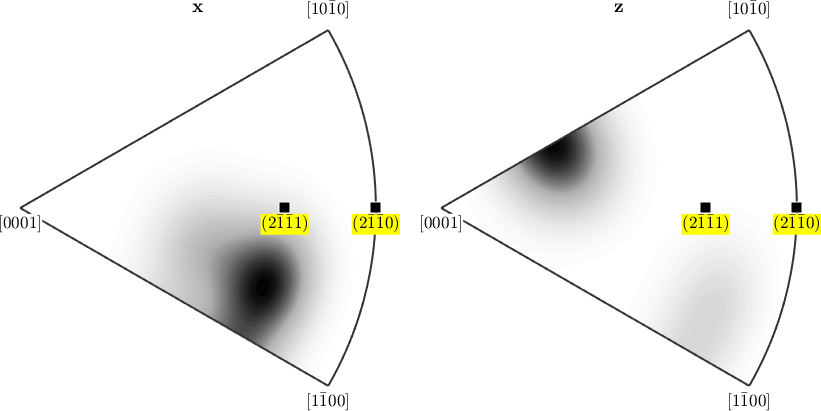

The axes of an inverse pole figure are the fundamental sector of the crystal symmetry, so most symmetrically equivalent copies of a direction fall outside them. Each supplied index is labelled where it lands inside the sector.

A whole orientation can also be marked. MTEX draws it wherever that orientation appears. It places one marker per pole in every axis. The next figure marks the two components used to construct the model ODF.

plotIPDF(odf,[xvector,zvector],'antipodal')
mtexColorMap white2black
annotate(mod1,...
    'marker','s','MarkerSize',6,'MarkerFaceColor','r',...
    'label','A','color','w')

annotate(mod2,...
    'marker','s','MarkerSize',6,'MarkerFaceColor','g',...
    'label','B')

drawNow(gcm,'figSize','normal')

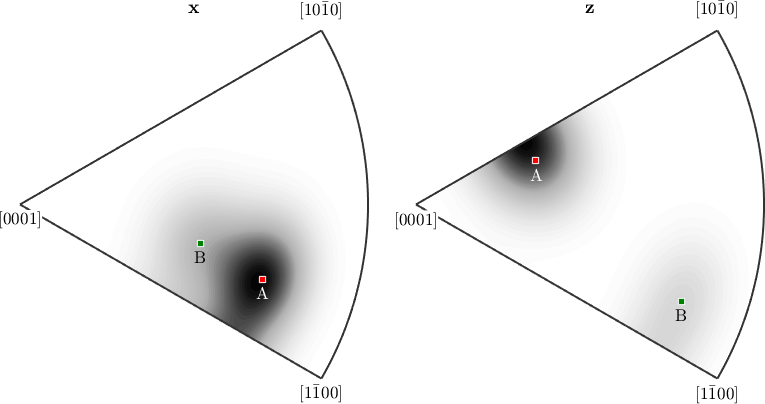

The red squares sit on the maxima, while the green ones mark the weaker component. These known orientations provide a direct check on the plot.

The same annotation works on ODF sections. In a section, an orientation is represented by one point rather than by one pole in every axis.

plot(odf,'sigma')
mtexColorMap white2black
annotate(mod1,'label','A','textColor','r',...
    'MarkerSize',15,'MarkerEdgeColor','r','MarkerFaceColor','none')

annotate(mod2,'label','B','textColor','b',...
  'MarkerSize',15,'MarkerEdgeColor','b','MarkerFaceColor','none')

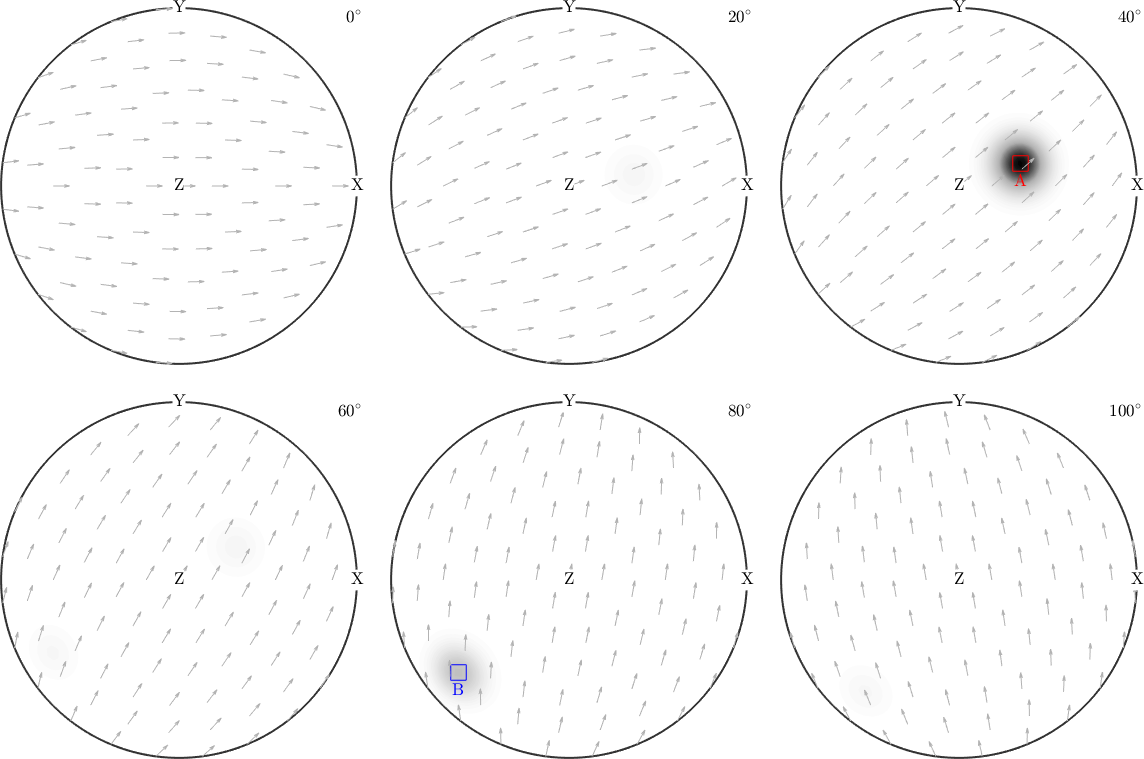

The outlined labels identify the two component positions without covering the density underneath. The same annotation also works on a scatter plot of individual orientations. It shows which model components the sampled point cloud lies around.

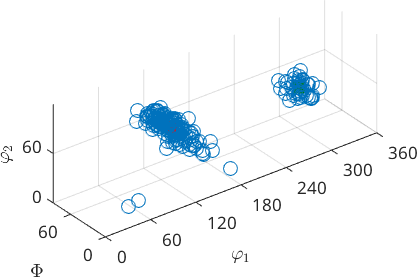

ori = odf.discreteSample(200);
scatter(ori);
annotate(mod1,...
  'MarkerSize',10,'MarkerEdgeColor','r','MarkerFaceColor','r')
annotate(mod2,...
  'MarkerSize',10,'MarkerEdgeColor','g','MarkerFaceColor','g')

Legends

A colourbar explains numerical values encoded by colour. A legend instead identifies plotted objects by a label and symbol. Anything plotted with a 'DisplayName' enters the legend, while everything else stays out. In a multi-plot figure, combine 'DisplayName' with 'add2all'. The object and its legend entry then appear on every panel.

plotPDF(odf,Miller({1,0,0},{1,1,1},cs))
plot(ori,'MarkerFaceColor','k','MarkerEdgeColor','black','add2all',...
  'DisplayName','randomSample')

f = fibre(Miller({1,1,-2,1},cs),vector3d.Y);
plot(f,'color','red','linewidth',2,'add2all','DisplayName','fibre')

legend show

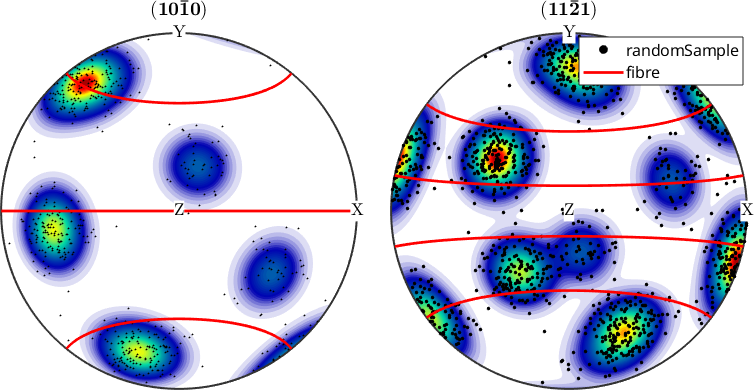

The black points and red curve now have the same names in both pole figures. See Legends for legend placement and formatting.

A line plot also needs a legend when several curves share one axis. Here the harmonic coefficients of the two-component ODF are compared with those of a fibre ODF through their power at each harmonic degree.

close all
plotSpektra(FourierODF(odf,32),'DisplayName','Two-component ODF','figSize','small')
hold on
fodf = fibreODF(Miller(1,0,0,cs),zvector);
plotSpektra(FourierODF(fodf,32),'DisplayName','Fibre ODF');
hold off
legend show

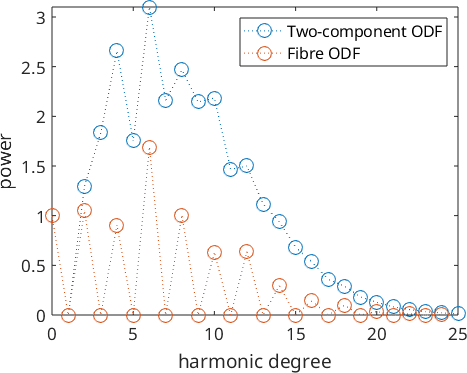

The fibre ODF decays faster, as a function with a rotational symmetry must. It has fewer degrees of freedom to spend at each harmonic degree. The legend makes it possible to assign that decay to the correct curve.

A spherical grid

A grid of latitude and longitude lines makes the projection legible and lets angles be read from the figure. The 'grid' flag switches it on, and 'grid_res' sets the angular spacing.

plotPDF(odf,[Miller(1,0,0,cs),Miller(0,0,1,cs)],...
  'grid','grid_res',15*degree,'antipodal');
mtexColorMap white2black

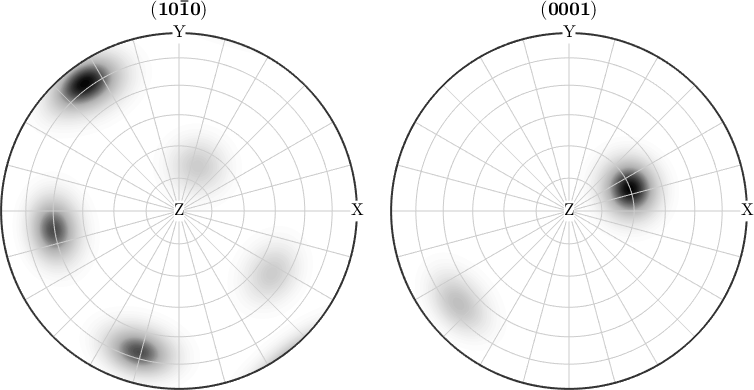

At 15 degrees the lines are close enough for approximate measurements and far enough apart not to compete with the pole-density pattern. The grid is part of the spherical projection; it does not change the sampled data.

References

Next

Once the figure carries the information needed to read it, continue with Exporting Figures. It explains how figure size, renderer, and file format affect the exported result.
