This page assumes the directions introduced in Defining Three-Dimensional Vectors and the active rotations introduced in Defining Rotations.
A reference frame is the coordinate system in which data are expressed. The rotations below move objects within one reference frame. They do not perform a frame change, which re-expresses the same physical object in a different reference frame without moving it.
The examples use proper rotations. Reflections and inversions are covered in Improper Rotations.
plottingConvention.default('y↑→x');Rotating a Direction
The product rot * v actively turns the direction v by rot.
rot = rotation.byEuler(90*degree,90*degree,0*degree,'Bunge');v = rot * vector3d.Xv = vector3d (y↑→x)
x y z
0 1 0The grey arrows are the specimen axes. The black arrow is X before the rotation, and the red arrow is its image.
arrow3d(1.2*[vector3d.X,vector3d.Y,vector3d.Z],...
'faceColor',[.75 .75 .75])
hold on
arrow3d(1.05*vector3d.X,'faceColor','black')
arrow3d(1.05*v,'faceColor','red')
hold off
axis off
The red arrow coincides with Y, so this rotation sends X to Y. \\ applies the inverse rotation and returns the direction to X.
rot \ vans = vector3d (y↑→x)
x y z
1 0 0Composing Rotations
Multiplication composes rotations. The rotation on the right acts first, just as it does in matrix multiplication.
rot1 = rotation.byEuler(90*degree,0,0,'Bunge');
rot2 = rotation.byEuler(0,60*degree,0,'Bunge');
rot = rot2 * rot1;The order matters. == tests rotation equality within an angular tolerance, rather than comparing printed Euler angles. Reversing these two rotations does not give the same result.
rot2 * rot1 == rot1 * rot2ans =
logical
0Their angular separation is 82.8192 degrees.
angle(rot2*rot1,rot1*rot2) ./ degreeans =

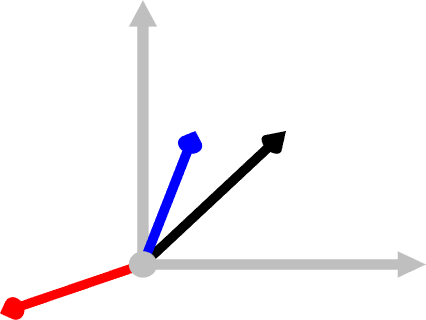

82.8192The black arrow below is one starting direction. The red arrow results from rot1 followed by rot2, while the blue arrow shows the reverse order.
startDirection = normalize(vector3d(1,1,1));
forwardDirection = rot2 * (rot1 * startDirection);
reverseDirection = rot1 * (rot2 * startDirection);
figure;
arrow3d(1.2*[vector3d.X,vector3d.Y,vector3d.Z],...
'faceColor',[.75 .75 .75])
hold on
arrow3d(1.05*startDirection,'faceColor','black')
arrow3d(1.05*forwardDirection,'faceColor','red')
arrow3d(1.05*reverseDirection,'faceColor','blue')
hold off
axis off
The separated red and blue arrows make the noncommutativity visible. Parentheses are useful whenever the intended order might otherwise be misread.
Axis and Angle
angle and axis read the axis--angle description from the composed rotation, however it was built.
rot.angle ./ degreeans =
104.4775rot.axisans = vector3d (y↑→x)
x y z
0.447 -0.447 0.775The composite is a 104.4775 degree turn about the displayed axis. This is not the sum of the two input angles because rotations about different axes do not add like vectors.
The Inverse Rotation
inv reverses a rotation. For a nonzero turn below 180 degrees, the inverse has the opposite axis and the same canonical, nonnegative angle.
invRot = inv(rot);
[rot.axis,invRot.axis]ans = vector3d (y↑→x)
size: 1 × 2
x y z
0.447 -0.447 0.775
-0.447 0.447 -0.775[rot.angle,invRot.angle] ./ degreeans =
104.4775 104.4775A rotation multiplied by its inverse is the identity. This is why rot \ v is the same operation as inv(rot) * v.
rot * invRotans = rotation
Bunge Euler angles in degree
phi1 Phi phi2
0 0 0The Angle Between Two Rotations
The relative rotation below acts after rot1 and carries its result to the result of rot. Its principal angle is the angular distance between the two rotations.
relativeRot = rot * inv(rot1);
[relativeRot.angle,angle(rot,rot1)] ./ degreeans =
60.0000 60.0000Both entries are 60 degrees. The second is the direct angle(rot,rot1) call, so there is usually no need to construct the relative rotation explicitly.
This angular distance is used throughout MTEX to compare a fit with a measurement and to quantify orientation variation. For orientations it additionally minimizes over symmetry-equivalent descriptions, as explained in Orientation Symmetry.
Lists of Rotations
MTEX objects are vectorized. If both operands are non-scalar, .* pairs corresponding entries while * forms every combination. A scalar operand is applied to the whole list with either operator.
rotations = rotation.byAxisAngle(vector3d.Z,[0 30 60]*degree);
directions = [vector3d.X,vector3d.Y,vector3d.Z];
size(rotations .* directions)ans =
1 3The elementwise result has size 1-by-3: one output for each pair.
size(rotations * directions)ans =
3 3The outer result has size 3-by-3: every rotation was applied to every direction. The same distinction applies when two rotation lists are composed.
Reading Other Parametrisations
A rotation can be inspected in any representation, regardless of how it was constructed.
|
the three Euler angles |
|
|
the Rodrigues--Frank vector |
|
|
the rotation matrix |
|
|
the homochoric vector |
|
|
the cubochoric vector |
|
|
axis and angle |
Euler angles depend on a convention. Naming Matthies here makes the result independent of the user's display preference.
[alpha,beta,gamma] = Euler(rot,'Matthies');
[alpha,beta,gamma] ./ degreeans =
270.0000 60.0000 180.0000The displayed 270, 60, 180 degree triplet is the Matthies description of the same composite rotation. See Rotation Representations before comparing coordinates produced by different programs.
The Maths Behind the Angular Distance
For rotations \(r_1\) and \(r_2\), MTEX uses the principal angle of a relative rotation:
\[ d(r_1,r_2) = \mathop{\rm angle}(r_2 r_1^{-1}) = \mathop{\rm angle}(r_1^{-1}r_2). \]
The two relative rotations generally have different axes, but they have the same angle. The distance is unchanged if the same rotation is composed onto both inputs from the left or from the right. This invariance is why the 60 degree result above does not depend on the starting orientation rot1.
References
- A. Morawiec, Orientations and Rotations: Computations in Crystallographic Textures, Springer, 2004, develops composition and the geometry of rotation space for texture analysis.
- D. Rowenhorst et al., Consistent representations of and conversions between 3D rotations, Modelling and Simulation in Materials Science and Engineering 23 (2015) 083501, documents the convention choices behind common parametrisations.
Next
Sets of rotations are drawn in Plotting. A rotation that maps crystal coordinates into specimen coordinates and carries crystal symmetry is an orientation.
