Spherical Density Estimation

A long list of measured directions is often easier to interpret as a smooth density on the sphere. High values identify directions that occur more often than they would in a uniform population.

This page applies kernel density estimation to vector3d data. It assumes the vector construction from Defining Three-Dimensional Vectors, the direction-axis distinction from Axes and Antipodal Symmetry, and the plots introduced in Spherical Projections. The general statistical idea is developed in Density Estimation.

plottingConvention.default('y↑→x');

From Measured Axes to a Density

The forsterite example map supplies one crystallographic c-axis for every indexed Forsterite pixel.

mtexdata forsterite silent

cAxes = ebsd('Fo').orientations * ebsd('Fo').CS.cAxis;
numCAxes = numel(cAxes)

numCAxes =
      152345

The calculation uses 152345 axes. One vector3d variable holds the entire list, which is why the object summary itself is suppressed above.

A crystallographic c-axis is an unoriented line: c and -c represent the same physical axis. The antipodal flag records that assumption.

cAxes.antipodal = true;

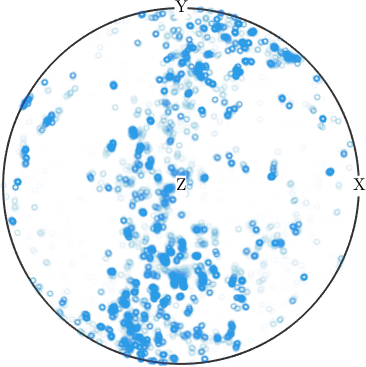

plot(cAxes,'upper','MarkerFaceColor','none',...
  'MarkerEdgeAlpha',0.01,'MarkerSize',4)

The projected sphere is almost covered by markers. Some concentrations are visible, but their relative strengths cannot be read from this overlap.

calcDensity replaces the point cloud by a continuous spherical function.

pdf = calcDensity(cAxes)

pdf = S2FunHarmonic (y↑→x)
  bandwidth: 25
  antipodal: true

The summary identifies a harmonic spherical function with bandwidth 25. It also reports antipodal: true because the estimate inherited the axis symmetry of cAxes.

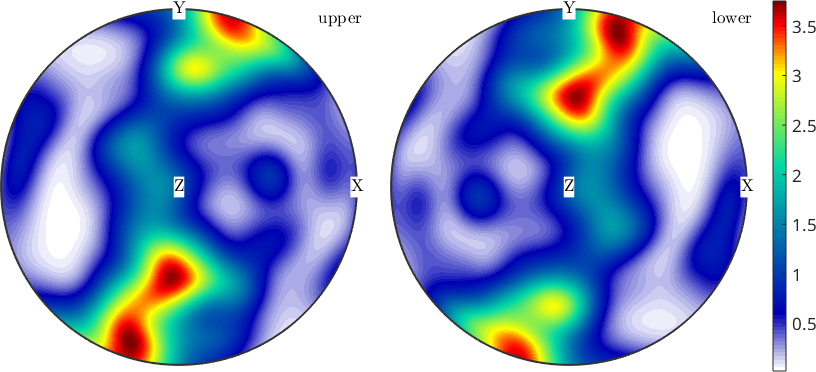

plot(pdf,'complete')
mtexColorbar

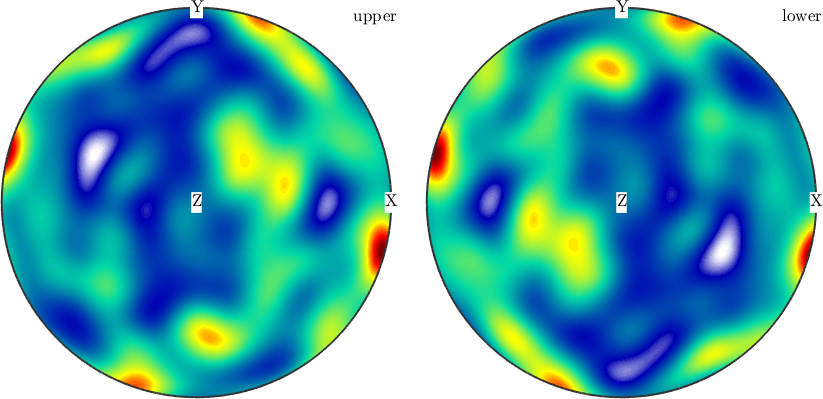

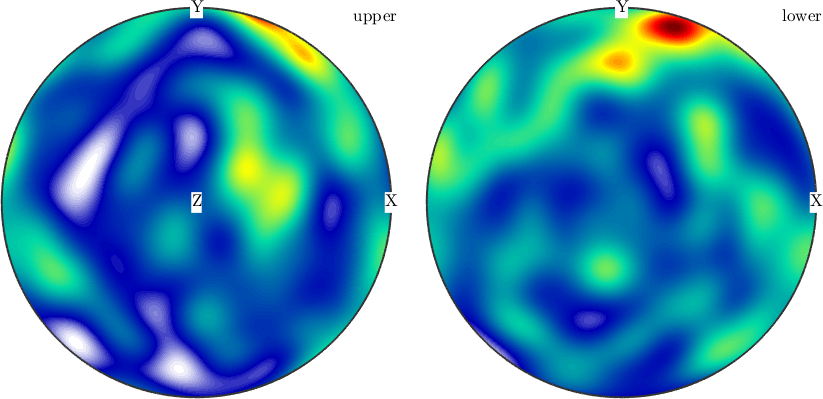

The upper- and lower-hemisphere patterns repeat through the centre of the sphere. Their unequal colour levels show the concentrations hidden by the scatter plot.

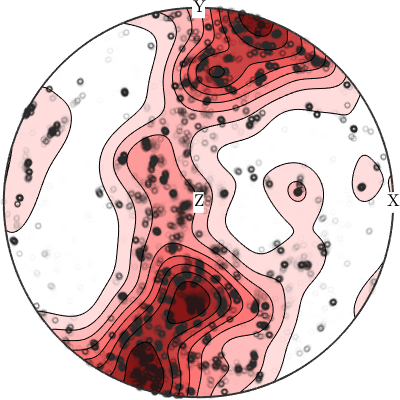

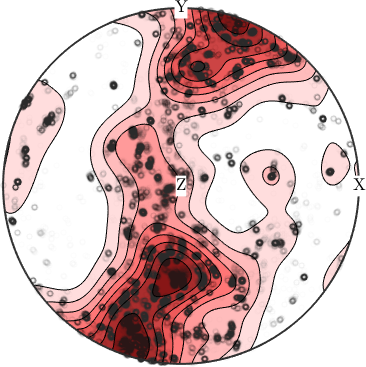

Overlaying the observations checks that the high-density regions coincide with the most crowded parts of the point cloud.

contourf(pdf)
mtexColorMap LaboTeX

hold on
plot(cAxes,'upper','MarkerFaceColor','none','MarkerEdgeColor','k',...
  'MarkerEdgeAlpha',0.01,'MarkerSize',4)
hold off

The darkest clusters of points lie inside the highest filled contours. The estimate summarizes their concentration without inventing a new location for a peak.

MTEX normalizes the density to have mean value one.

pdfMean = mean(pdf)

pdfMean =
     1

Values are therefore multiples of uniform density (m.u.d.). A value of 3 means three times the density expected from uniformly distributed axes. It is not the fraction of axes at one exact direction; fractions require integration over a finite region.

Choosing the Halfwidth

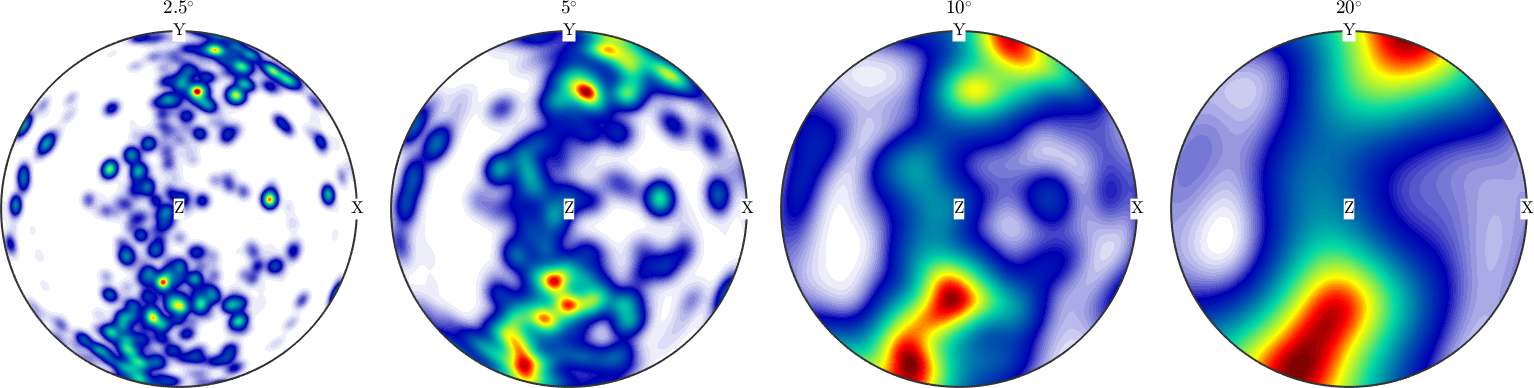

The kernel halfwidth controls how far each observation is spread. The 'halfwidth' option defaults to 10 degrees for vector3d.calcDensity. Compare four choices on the same axes.

hw = [2.5 5 10 20] * degree;
mtexFig = newMtexFigure('layout',[1 4]);

for k = 1:length(hw)

  plot(calcDensity(cAxes,'halfwidth',hw(k)),'upper')
  mtexTitle(['\(' xnum2str(hw(k)./degree) '^{\circ}\)'])

  if k < length(hw), nextAxis; end
end
mtexFig.drawNow

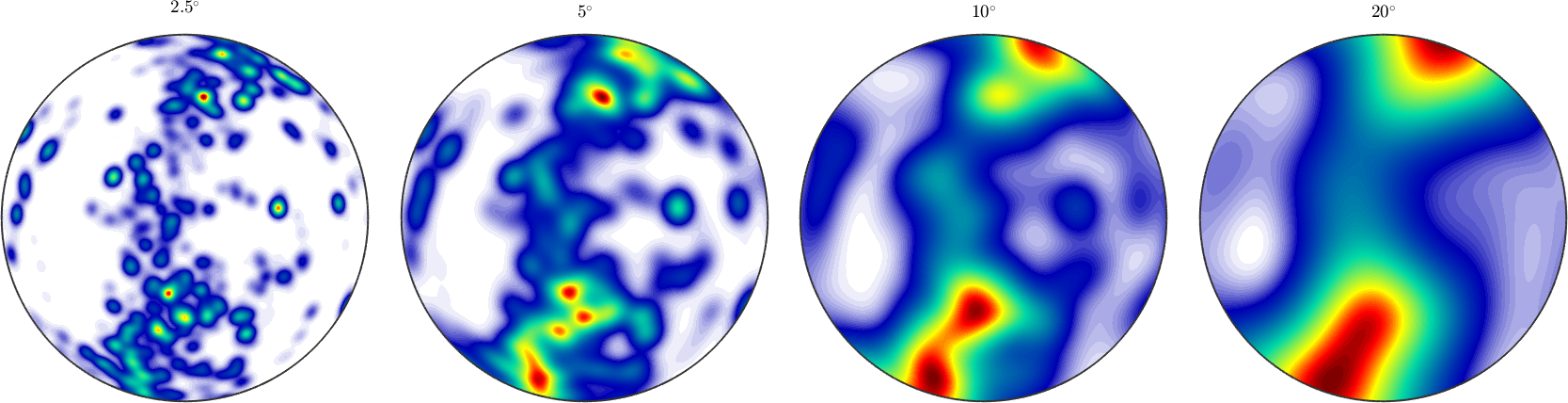

At 2.5 degrees the estimate contains many narrow peaks. At 20 degrees those peaks have merged into broad regions. A small halfwidth can preserve measurement-scale variation, while a large one can erase real structure. Neither choice is automatically more accurate.

The halfwidth also sets the harmonic bandwidth needed to represent the kernel. Print both the peak density and bandwidth for the four estimates.

for k = 1:length(hw)
  pdfK = calcDensity(cAxes,'halfwidth',hw(k));
  disp(['halfwidth: ' xnum2str(hw(k)./degree) mtexdegchar ...
    ' -> maximum: ' xnum2str(max(pdfK)) ' mud' ...
    ', bandwidth: ' xnum2str(pdfK.bandwidth)])
end

halfwidth: 2.5° -> maximum: 14 mud, bandwidth: 92
halfwidth: 5° -> maximum: 5.7 mud, bandwidth: 48
halfwidth: 10° -> maximum: 3.8 mud, bandwidth: 25
halfwidth: 20° -> maximum: 2.5 mud, bandwidth: 13

Across this sweep the maximum falls from 14 to 2.5 m.u.d., while the bandwidth falls from 92 to 13. A sharper estimate is more expensive as well as more sensitive to fine-scale variation.

The relevant sample size is the number of independent observations, not merely the number of pixels. Neighbouring EBSD pixels are spatially correlated because many sample the same grain. MTEX does not select a halfwidth automatically for directional data. For orientation data, ODF Estimation from EBSD Data explains this dependence and Optimal Kernel Selection describes automatic methods.

Weighting Changes the Question

A grain is a phase-homogeneous, spatially connected region of EBSD pixels produced by segmentation. Reconstruct the indexed map with an example 10 degree misorientation threshold, then keep the Forsterite grains.

[grains,ebsd] = calcGrains(ebsd('indexed'),'angle',10*degree);
grains = grains('Fo');

% one c-axis per grain
cAxesGrains = grains.meanOrientation * grains.CS.cAxis;
cAxesGrains.antipodal = true;
numGrainAxes = numel(cAxesGrains)

numGrainAxes =
        1151

The reconstruction gives 1151 Forsterite grain axes instead of 152345 pixel axes. Giving each grain one vote describes the distribution of grains. Weighting by sectional grain area describes the mapped material area, which is the question answered by equal pixel weights on this regular scan.

mtexFig = newMtexFigure('layout',[1 3]);

plot(pdf,'upper')
mtexTitle('one pixel - one vote')

nextAxis
plot(calcDensity(cAxesGrains),'upper')
mtexTitle('one grain - one vote')

nextAxis
plot(calcDensity(cAxesGrains,'weights',grains.area),'upper')
mtexTitle('weighted by grain area')

setColorRange('equal')
mtexColorbar
mtexFig.drawNow

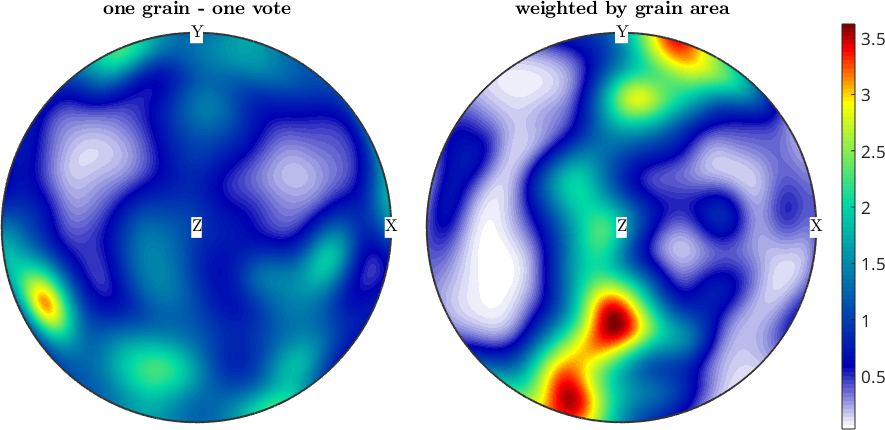

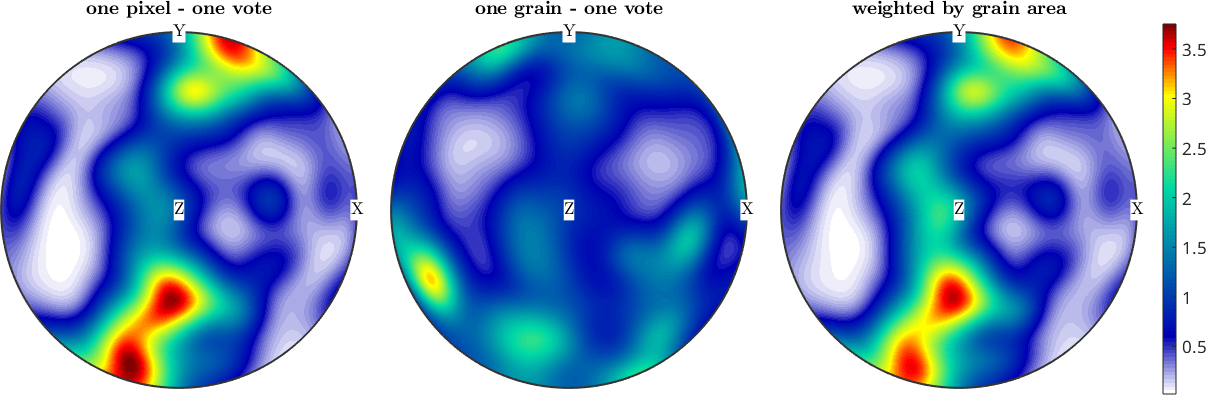

With a common colour range, equal grain weights give the flattest panel. Area weighting restores the main concentrations of the pixel estimate, although replacing every grain by its mean orientation removes the within-grain spread. The scientifically correct weights depend on whether the population of interest is grains, mapped area, or something else.

Working with the Density Function

A density is an S2Fun, so it can be evaluated, integrated, searched for peaks, combined with other spherical functions, and sampled. Operations on Spherical Functions develops that common interface.

First find the global maximum.

[globalDensity,globalPos] = max(pdf)

globalDensity =
    3.7532

globalPos = vector3d (y↑→x)
 antipodal: true
       x      y      z
  -0.295 -0.941  0.166

The output gives both the density and the specimen direction where it is attained. The 'numLocal' option requests several distinct local maxima.

[localDensity,localPos] = max(pdf,'numLocal',3)

localDensity =
    3.7532
    3.7026
    2.9869

localPos = vector3d (y↑→x)
 size: 3 × 1
 antipodal: true
        x       y       z
   -0.295  -0.941   0.166
  -0.0541  -0.668   0.742
    0.114   0.833   0.541

The first local maximum is the global one. Integrate the density within 20 degrees of that axis using volume.

smoothedFraction = volume(pdf,localPos(1),20*degree)

smoothedFraction =
    0.1723

The smoothed estimate assigns 0.1723, or 17.23 percent, of the population to that axial neighbourhood. Count the original axes in the same region.

observedFraction = mean(angle(cAxes,localPos(1)) < 20*degree)

observedFraction =
    0.1890

The direct count is 0.1890, or 18.90 percent. Smoothing moves some density across the boundary of the 20 degree neighbourhood, so the two questions do not have to give the same answer.

Evaluate the density at the three specimen basis directions.

basisDensities = pdf.eval([xvector,yvector,zvector])

basisDensities =
    0.4580
    1.6142
    1.2212

Among X, Y and Z, the Y direction has the largest density in this example. If only these values are needed, pass the evaluation directions directly:

f = calcDensity(cAxes,[xvector,yvector,zvector])

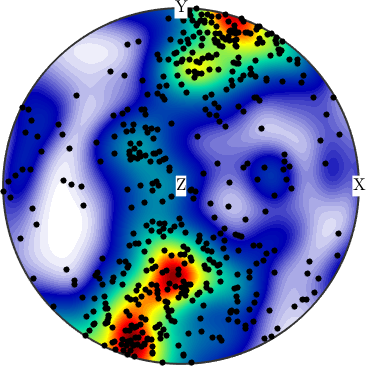

A random sample from the estimate can replace the large point cloud in a simulation or exploratory plot.

vRand = discreteSample(pdf,500);

plot(pdf,'upper')
hold on
plot(vRand,'MarkerFaceColor','k','MarkerSize',4)
hold off

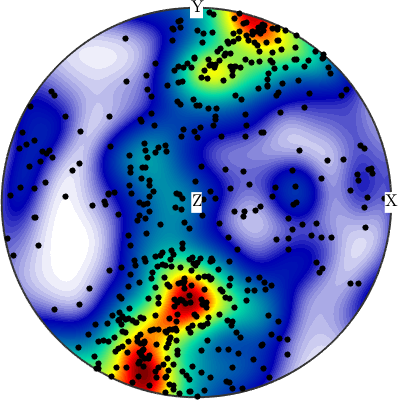

The 500 black points follow the same broad concentrations as the coloured density, but retain the sampling variation expected from a finite draw. They are simulated representatives, not a lossless compression of the original 152345 measurements.

Crystal Directions and Symmetry

The previous density lives in the specimen reference frame. An inverse pole density instead fixes a specimen direction and asks which crystal directions are parallel to it. Express specimen Z in the crystal frame of every Forsterite orientation.

h = inv(ebsd('Fo').orientations) .* vector3d.Z;

The result is a Miller array carrying the Forsterite crystal symmetry. Miller.calcDensity transfers that symmetry to the density automatically.

ipdf = calcDensity(h)

ipdf = S2FunHarmonicSym (Forsterite)
  bandwidth: 25
  antipodal: true

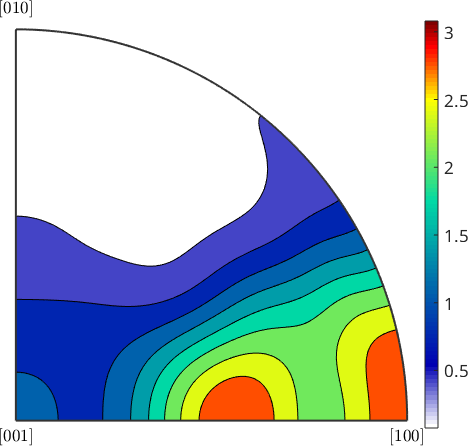

The summary identifies an antipodal S2FunHarmonicSym. Plotting only the fundamental sector shows every symmetry-inequivalent crystal direction once.

plot(ipdf,'contourf')
mtexColorbar

The coloured sector contains the complete inverse pole density without repeating symmetry-related directions. The 'noSymmetry' option disables crystal symmetrization when that is deliberately required.

Choosing a Different Kernel

The default is the non-negative de la Vallee Poussin kernel. Its finite harmonic expansion avoids truncation ringing. The 'kernel' option also accepts other spherical kernels.

Compare the default 10 degree kernel with a Dirichlet kernel truncated at bandwidth 12.

psi1 = S2DeLaValleePoussinKernel('halfwidth',10*degree);
psi2 = S2DirichletKernel(12);

plot(psi1,'linewidth',2)
hold on
plot(psi2,'linewidth',2)
hold off
xlim([0,60])
legend('de la Vallee Poussin','Dirichlet')

The de la Vallee Poussin curve decreases without crossing zero. The Dirichlet curve oscillates above and below zero, and those negative lobes pass into a density estimate made with it.

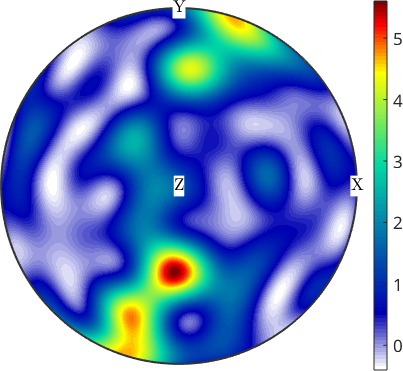

pdf2 = calcDensity(cAxes,'kernel',psi2);

plot(pdf2,'upper')
mtexColorbar

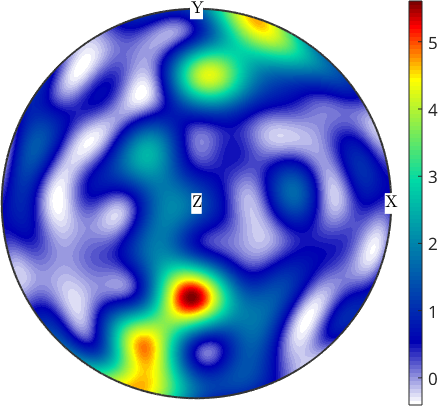

minimumDirichletDensity = min(pdf2)

minimumDirichletDensity =
   -0.4029

The minimum is -0.4029, which is not a valid probability density. Non-negative kernels are therefore the appropriate default for density estimation. A Dirichlet kernel remains useful for operations where exact harmonic truncation, rather than non-negativity, is the objective.

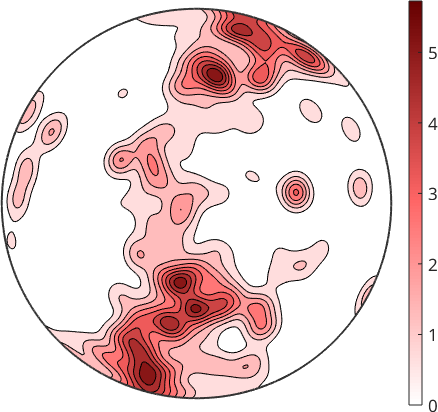

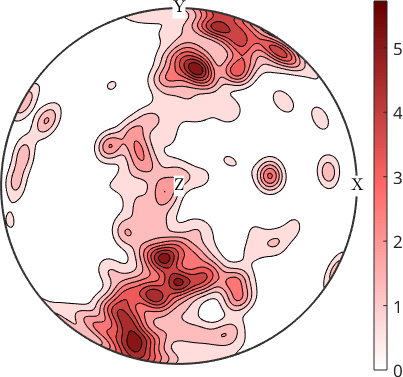

Density Estimation While Plotting

Smooth plotting options for a large vector3d list perform density estimation internally. The 'contourf', 'smooth' and 'pcolor' modes use a 5 degree halfwidth when none is supplied.

plot(cAxes,'contourf','upper')
mtexColorMap LaboTeX
mtexColorbar

This 5 degree plot is sharper than the explicit 10 degree estimate pdf. Use calcDensity explicitly when the density itself, its weights, its kernel, or a reproducible smoothing choice matters.

The Maths Behind the Estimate

Let \(v_n\) be unit directions with non-negative weights \(w_n\), and let \(\psi\) be a normalized radial kernel. MTEX computes the weighted kernel estimate

\[f(v) = \frac{1}{\sum_{n=1}^{N}w_n} \sum_{n=1}^{N} w_n\,\psi(v\mathbin{\cdot}v_n).\]

Equal weights reduce the denominator to \(N\). For axial input, the result is symmetrized so that \(f(v)=f(-v)\). The normalization makes the mean of \(f\) equal to one under MTEX's uniform spherical measure.

The estimate is a model of an unknown population density, not the unknown density itself. Decreasing the halfwidth reduces smoothing bias but raises sampling variation; increasing it does the reverse.

Further Reading

Next

Continue with Spherical Functions to work with densities as mathematical objects. Use ODF Estimation from EBSD Data when the input is a list of orientations rather than directions, and the ODF tutorial for the complete texture workflow.
