Properties

A property stores one value for every element of an MTEX list. When you select, sort, or concatenate the list, MTEX carries those values along in lockstep. This link between an object and its per-element data makes a property useful for filtering, colouring, and later calculations.

List-like classes include EBSD, grain2d, grainBoundary, and PoleFigure. For an EBSD map, a property has one value per measurement point. The expression ebsd(condition).mad therefore returns exactly the MAD values at the selected points.

Properties are not options

A command option changes one command call. It is not stored as per-element data. By contrast, EBSD properties live in ebsd.prop and are resized whenever ebsd(ind) selects part of the map.

Scan-level values live in ebsd.opt. They do not have one value per measurement point and are not resized when the map is subset. This distinction is the test to use: per-point data belongs in prop, while whole-scan data belongs in opt.

Inspecting imported properties

The available properties depend on the data source. An EBSD file usually contributes a confidence measure and an error-of-fit measure. Importers also preserve unrecognised per-point columns as properties.

Load the forsterite example and display the fields collected in prop.

plottingConvention.default('y↑→x');
mtexdata forsterite silent

ebsd.prop

ans =
  struct with fields:

    bands: [336×732 double]
       bc: [336×732 double]
       bs: [336×732 double]
    error: [336×732 double]
      mad: [336×732 double]
    oldId: [336×732 double]

Each property may also be read as though it were a regular field of the object. Here the first five MAD values are read as ebsd.mad.

ebsd.mad(1:5)

ans =
    0.1000    0.1000    0.3000    0.3000    0.2000

Subsetting keeps values aligned

Select every measurement whose MAD is below one. The two lengths printed below are equal because selecting EBSD points also selects the matching property values.

ebsdSub = ebsd(ebsd.mad < 1);

length(ebsdSub)
length(ebsdSub.mad)

ans =
      242352
ans =
      242352

Adding a property

Create a property by assigning to a new field of prop. The prop part is required for the first assignment. Writing ebsd.myQuality = ... directly would try to set a class property of EBSD and fail because MTEX cannot distinguish a new name from a typo.

This example turns MAD into a quality score that decreases as MAD grows.

ebsd.prop.myQuality = 1 ./ (1 + ebsd.mad);

ebsd.prop

ans =
  struct with fields:

        bands: [336×732 double]
           bc: [336×732 double]
           bs: [336×732 double]
        error: [336×732 double]
          mad: [336×732 double]
        oldId: [336×732 double]
    myQuality: [336×732 double]

Once the field exists, it can be read or overwritten as ebsd.myQuality without writing prop. It also survives indexing. The following values belong only to the selected forsterite points.

ebsd('Forsterite').myQuality(1:5)

ans =
    0.9091
    0.9091
    0.7692
    0.7692
    0.8333

Plotting a property

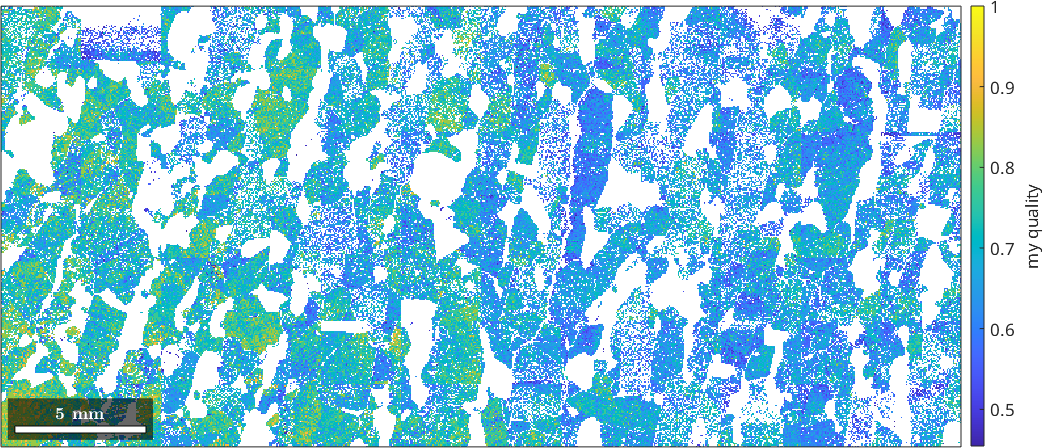

A numeric property can supply one colour value per point. The map shows lower myQuality where MAD is larger and higher myQuality where MAD is smaller; the colours remain attached to the correct measurement points.

newMtexFigure
plot(ebsd('Forsterite'),ebsd('Forsterite').myQuality)
mtexColorbar('title','my quality')

Properties may store MTEX objects

A property does not have to be numeric. Any value that supports indexing can be stored. The next property contains one vector3d per forsterite point. Each vector is the specimen direction of that point's crystallographic \(c\) axis.

ebsdFo = ebsd('Forsterite');
ebsdFo.prop.myAxis = ebsdFo.orientations .* Miller(0,0,1,ebsdFo.CS);

ebsdFo.prop

ans =
  struct with fields:

        bands: [152345×1 double]
           bc: [152345×1 double]
           bs: [152345×1 double]
        error: [152345×1 double]
          mad: [152345×1 double]
        oldId: [152345×1 double]
    myQuality: [152345×1 double]
       myAxis: [152345×1 vector3d]

Properties of grains

Grains use the same mechanism. MTEX supplies derived grain properties such as GOS and meanRotation. You may add any other value that has one entry per grain.

grains = calcGrains(ebsd('indexed'),'angle',10*degree);

grains.prop

ans =
  struct with fields:

    meanRotation: [3165×1 quaternion]
             GOS: [3165×1 double]

Store the ratio of the long-axis length to the short-axis length. Keeping this derived quantity as a property makes it available for later plotting and selection without recomputing it.

grains.prop.myRatio = grains.longAxis.norm ./ grains.shortAxis.norm;

newMtexFigure
plot(grains('Forsterite'),grains('Forsterite').myRatio)
setColorRange([1 5])
mtexColorbar('title','aspect ratio')

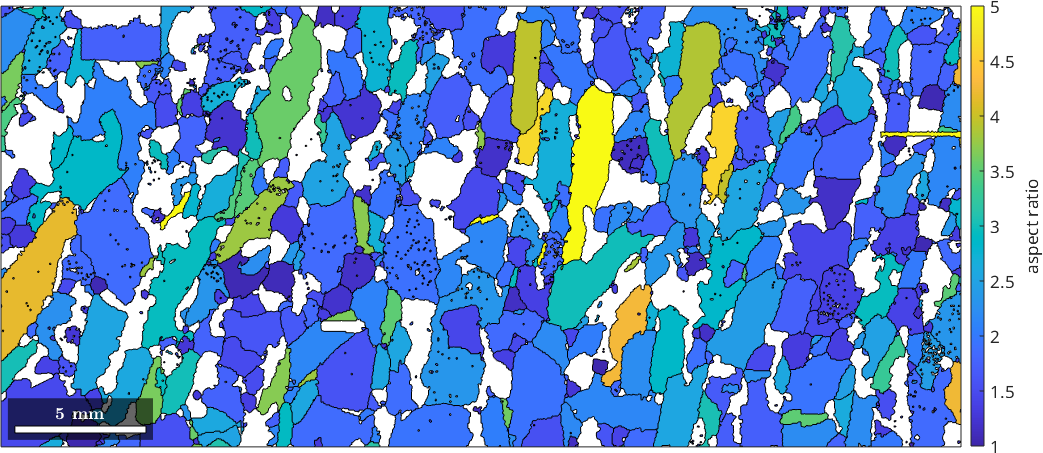

Elongated grains appear at the high end of the colour range, whereas nearly equiaxed grains appear near one. Values above five share the top colour because setColorRange([1 5]) clips the displayed range.

Check the length yourself

MTEX does not verify that a newly assigned property has the correct length. A property that is too short is accepted silently and fails only when later indexing requests an entry that does not exist.

grains.prop.nonsense = [1 2 3];

try
  grains(1:5).nonsense
catch e
  disp(e.message)
end

Index exceeds the number of array elements. Index must not exceed 3.

How properties are implemented

The dynProp class implements the prop structure and the overloaded indexing, concatenation, and subsetting used here. Classes such as EBSD and grain2d inherit that mechanism, so a new property automatically participates in those operations.

Import interfaces use the same mechanism. Every column of an .ang or .ctf file that MTEX does not recognise as position, phase, or orientation becomes a property.
