Syntax

grains = grain2d(V, poly, ori, CSList, phaseId, phaseMap, 'id', idList)

Input

`V`	`n × 3 list of vertices`
`poly`	`cell array of the polyhedrons`
`ori`	`array of mean orientations`
`CSList`	`cell array of symmetries`
`phaseId`	`list of phaseId for each grain`
`phaseMap`
`idList`	`option to provide grain ids`

Class Properties

`phaseId`	`phase identifier of each grain`
`id`	`id of each grain`
`poly`	`cell list of the vertex ids of each grain (index to V)`
`V`	`list of vertices (x,y coordinates)`
`boundary`	`grainBoundary`
`innerBoundary`	`grainBoundary`
`triplePoints`	`triplePoints`
`numPixel`	`number if pixels belonging to the grain`
`GOS`	`grain orientation spread`
`meanOrientation`	`average grain orientation (only single phase)`

Example

V = [0 0; 1 0; 2 0; 0 1; 1 1; 2 1];
poly = {[1 2 5 4 1];[2 3 6 5 2]};
rot = rotation.rand(2,1);
grains = grain2d(V,poly,rot,crystalSymmetry.load('quartz'))

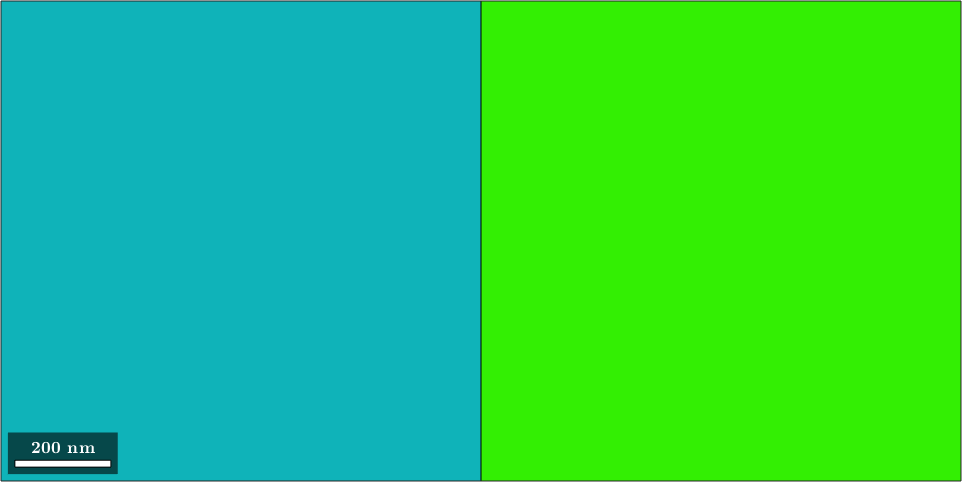

plot(grains,grains.meanOrientation)

grains = grain2d (y↓→x)

 Phase  Grains  Pixels  Mineral  Symmetry  Color
     1       2       2   Quartz       321

 boundary segments: 7 (7 µm)
 inner boundary segments: 0 (0 µm)
 triple points: 0

 Id   Phase   Pixels          meanRotation
  1       1        1   (157°,84.3°,151.3°)
  2       1        1   (9.3°,97.4°,118.9°)
