Syntax

ebsd = smooth(ebsd)

F = halfQuadraticFilter
F.alpha = 2;
ebsd = smooth(ebsd, F, 'fill', grains)

Input

`ebsd`	`EBSD`
`F`	`EBSDFilter`
`grains`	`grain2d if provided pixels at the boundary between grains are not filled`

Options

`fill`	`fill missing values (this is different then not indexed values!)`
`extrapolate`	`extrapolate up the the outer boundaries`

Example

mtexdata forsterite;
ebsd = ebsd('indexed');
% segment grains
[grains,ebsd] = calcGrains(ebsd,'minPixel',4);

ebsd = EBSDsquare (y↓→x, row↓→col)

 Phase  Orientations     Mineral         Color  Symmetry  Crystal reference frame
     0   58485 (24%)  notIndexed          none
     1  152345 (62%)  Forsterite  LightSkyBlue       mmm
     2   26058 (11%)   Enstatite  DarkSeaGreen       mmm
     3   9064 (3.7%)    Diopside     Goldenrod     12/m1        X||a*, Y||b, Z||c

 Properties: bands, bc, bs, error, mad, oldId
 Scan unit : um
 X x Y x Z : [0 → 36550] x [0 → 16750] x [0 → 0]
 Normal vector: (0,0,1)
 Square grid  :336 x 732

find largest grains

largeGrains = grains(grains.numPixel>800);
ebsd = ebsd(largeGrains(1));

figure
plot(largeGrains(1).boundary,'linewidth',2)
hold on
oM = ipfHSVKey(ebsd);
oM.ipfDirection = mean(ebsd.orientations) * oM.whiteCenter;
oM.colorStretching = 50;

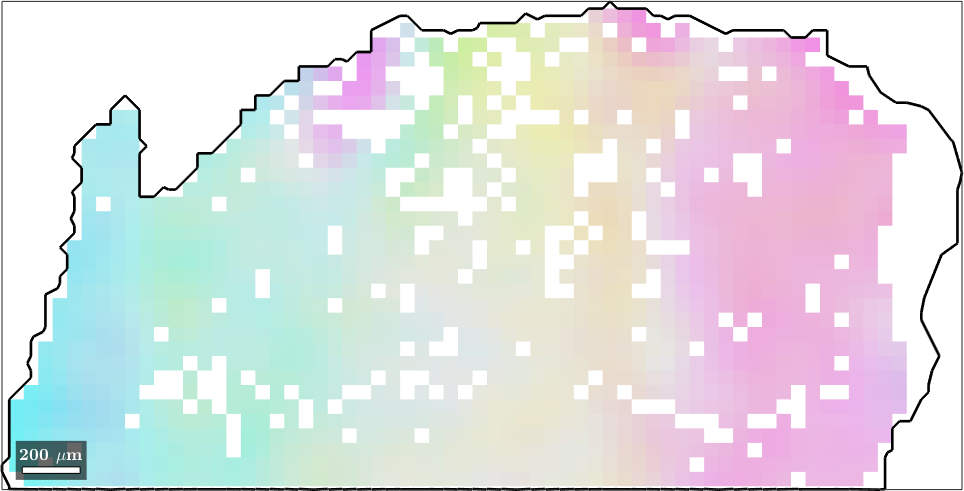

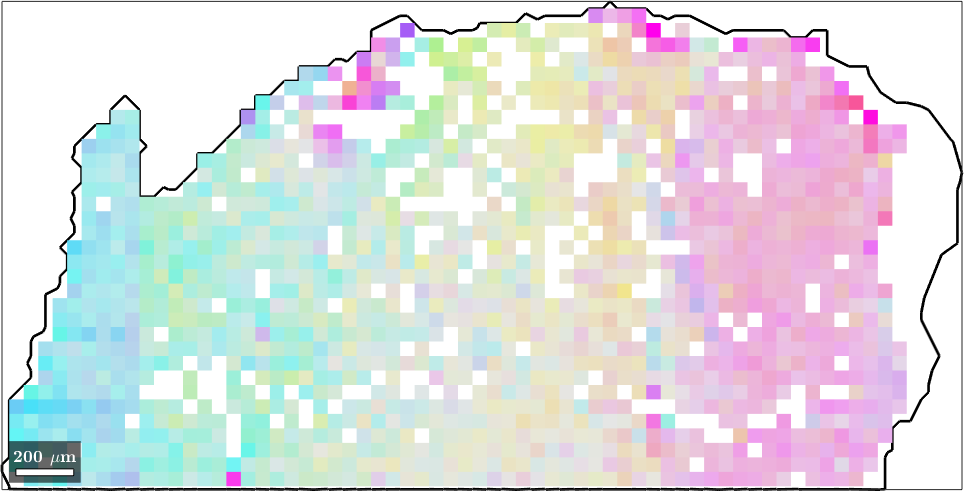

plot(ebsd,oM.orientation2color(ebsd.orientations))
hold off

ebsd_smoothed = smooth(ebsd);

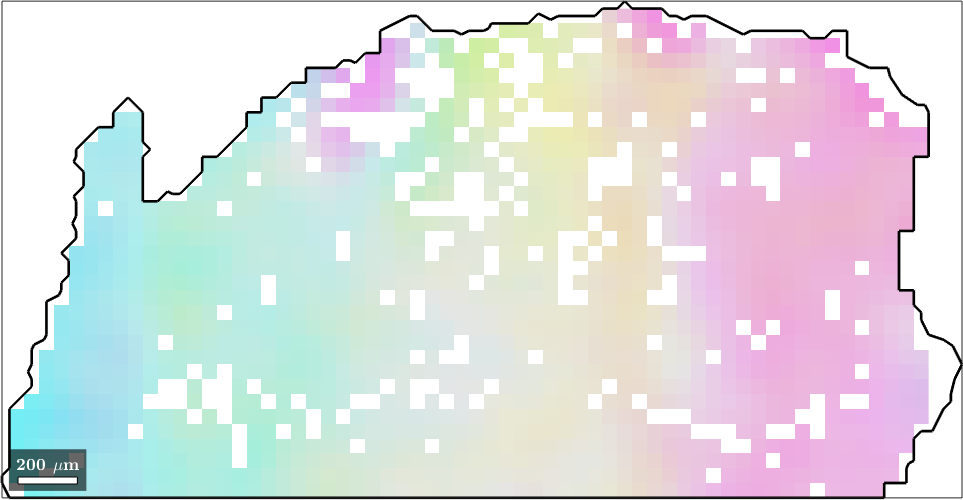

plot(ebsd_smoothed('indexed'),oM.orientation2color(ebsd_smoothed('indexed').orientations))
hold on
plot(largeGrains(1).boundary,'linewidth',2)
hold off
