findByLocation edit page

select EBSD data by spatial coordinates

Syntax

map = findByLocation( ebsd, xy, y )

Input

ebsd EBSD
xy list of [x(:) y(:)] coordinates, respectively [x(:) y(:) z(:)]

Output

ebsd EBSD subset

Example

mtexdata forsterite
plotx2east

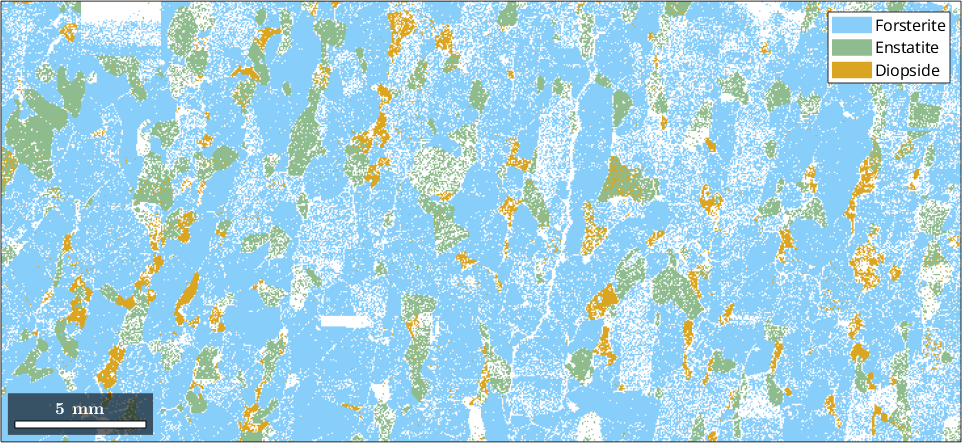

plot(ebsd)
p = [10000 5000] %ginput(1)
g = findByLocation(ebsd,p)
saving data to /home/hielscher/mtex/master/data/forsterite.mat

ebsd = EBSD

 Phase  Orientations     Mineral         Color  Symmetry  Crystal reference frame
     0   58485 (24%)  notIndexed
     1  152345 (62%)  Forsterite  LightSkyBlue       mmm
     2   26058 (11%)   Enstatite  DarkSeaGreen       mmm
     3   9064 (3.7%)    Diopside     Goldenrod     12/m1       X||a*, Y||b*, Z||c

 Properties: bands, bc, bs, error, mad, x, y
 Scan unit : um

p =
       10000        5000
g =
       73401

See also

EBSD.findByLocation grain2d.findByOrientation
