3d plot of orientation space in axis angle coordinates
An orientation is drawn at its rotational axis scaled by its rotational angle in degree. This is the default of plot and the base of the other ball shaped parametrisations.
Syntax
plot(ori,'axisAngle')
plot(ori,'axisAngle','ignoreFundamentalRegion')Options
| ignoreFundamentalRegion | plot orientations as they are |
| project2FundamentalRegion | project into the fundamental region, default |
| restrict2FundamentalRegion | drop orientations outside it |
| noBoundary | do not plot the boundary |
Class Properties
| oR | orientationRegion drawn as the boundary |
| CS1, CS2 | the two symmetry |
| ax | the axes handle |
Example

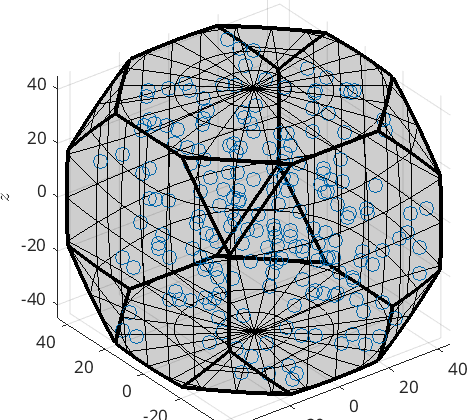

cs = crystalSymmetry('432');
plot(orientation.rand(200,cs),'axisAngle')
See also
orientationPlot RodriguesPlot homochoricPlot orientation.plot
