Syntax

ebsdLine = spatialProfile(ebsd,[xStart,xEnd],[yStart yEnd])

[ebsdLine,dist] = spatialProfile(ebsd,x,y)

xy = ginput(2)
[ebsdLine,dist] = spatialProfile(ebsd,xy)

Input

`ebsd`	`EBSD`
`xStart, xEnd, yStart, yEnd`	`double`
`x, y`	`coordinates of the line segments`
`xy`	`list of spatial coordinates \|[x(:) y(:)]\|`

Output

`ebsdLine`	`EBSD restricted to the line of interest`
`dist`	`double distance along the line to the initial point`

Example

import data

mtexdata twins

ebsd = EBSDsquare (y↓→x, row↓→col)

 Phase  Orientations     Mineral         Color  Symmetry  Crystal reference frame
     0     46 (0.2%)  notIndexed          none
     1  22833 (100%)   Magnesium  LightSkyBlue     6/mmm        X||a*, Y||b, Z||c

 Properties: bands, bc, bs, error, mad, oldId
 Scan unit : um
 X x Y x Z : [0 → 50] x [0 → 41] x [0 → 0]
 Normal vector: (0,0,1)
 Square grid  :137 x 167

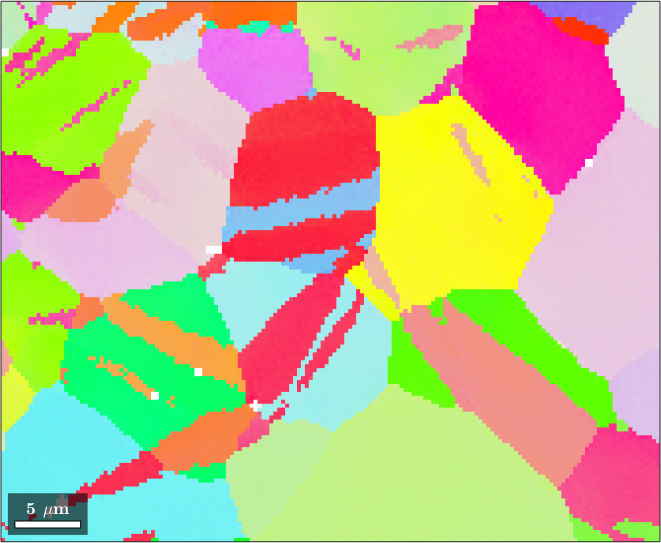

plot data

plot(ebsd('indexed'),ebsd('indexed').orientations)

select line coordinates

x = [15.5 27]; y = [20.5 11];

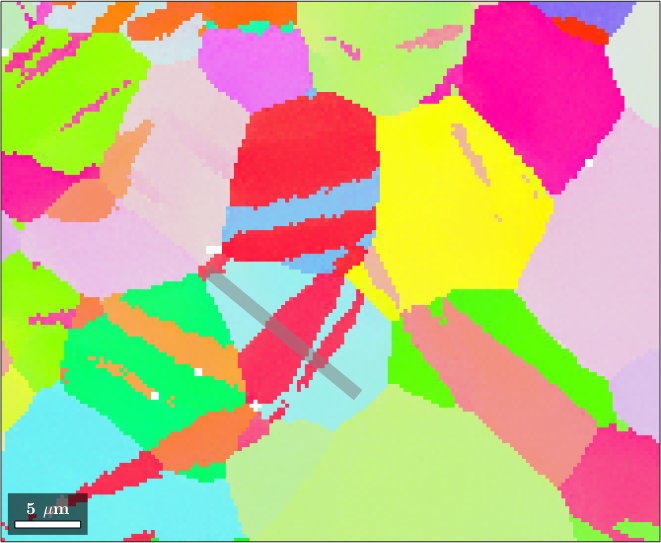

draw line with some translucency

line(x,y,'color',[0.5 0.5 0.5 0.5],'linewidth',10)

restrict ebsd data to this line

[ebsdLine,dist] = spatialProfile(ebsd,x,y);

extract orientations

ori = ebsdLine.orientations;

figure

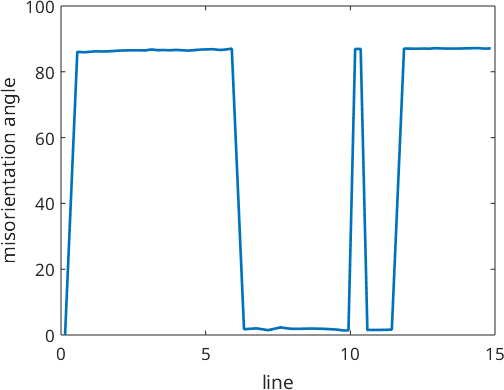

% plot misorientation angle along the profile
plot(dist,angle(ori,ori(1))./degree,'linewidth',2)
xlabel('line'), ylabel('misorientation angle')
