Syntax

[x,y] = intersect(gB,xy1,xy2)
[x,y,segLength] = intersect(gB,xy1,xy2)

Input

`gb`	`grainBoundary`
`xy1, xy2`	`coordinates of the endpoints of the line`

Output

x,y list of intersection points

Example

mtexdata small
grains = calcGrains(ebsd,'minPixel',3)
grains = smoothBoundary(grains,4)
plot(grains.boundary,'micronbar','off')
% define some line
xy1 = [33500,4500]; % starting point
xy2 = [36000,7500]; % end point

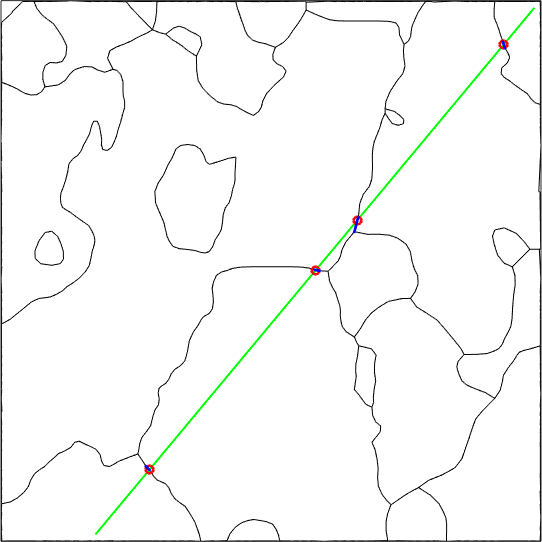

line([xy1(1);xy2(1)],[xy1(2);xy2(2)],'linewidth',1.5,'color','g')
[x,y] = grains.boundary.intersect(xy1,xy2);
hold on
scatter(x,y,'red','linewidth',2)

ebsd = EBSD (y↓→x)

 Phase  Orientations     Mineral         Color  Symmetry  Crystal reference frame
     0    1197 (32%)  notIndexed          none
     1    1952 (52%)  Forsterite  LightSkyBlue       mmm
     2    290 (7.8%)   Enstatite  DarkSeaGreen       mmm
     3    282 (7.6%)    Diopside     Goldenrod     12/m1        X||a*, Y||b, Z||c

 Properties: bands, bc, bs, error, mad, oldId
 Scan unit : um
 X × Y × Z : [33000 → 36000] × [4500 → 7500] × [0 → 0]
 Normal vector: (0,0,1)


grains = grain2d (y↓→x)

 Phase  Grains  Pixels     Mineral  Symmetry         Color
     0       1       1  notIndexed                    none
     1      15    1943  Forsterite       mmm  LightSkyBlue
     2       3     283   Enstatite       mmm  DarkSeaGreen
     3       6     240    Diopside     12/m1     Goldenrod

 boundary segments: 767 (39609 µm)
 inner boundary segments: 22 (1101 µm)
 triple points: 20

 Properties: meanRotation, GOS


grains = grain2d (y↓→x)

 Phase  Grains  Pixels     Mineral  Symmetry         Color
     0       1       1  notIndexed                    none
     1      15    1943  Forsterite       mmm  LightSkyBlue
     2       3     283   Enstatite       mmm  DarkSeaGreen
     3       6     240    Diopside     12/m1     Goldenrod

 boundary segments: 755 (35590 µm)
 inner boundary segments: 20 (955 µm)
 triple points: 20

 Properties: meanRotation, GOS

find the number of intersection points

sum(~isnan(x))
% mark the intersected boundary segments
plot(grains.boundary(~isnan(x)),'lineColor','b','linewidth',2)
hold off

ans =
     4
