orientation.calcCluster edit page

sort orientations into clusters

Syntax

[c,center] = calcCluster(ori,'halfwidth',2.5*degree)
[c,center] = calcCluster(ori,'numCluster',n,'method','hierarchical')
[c,center] = calcCluster(ori,'maxAngle',omega,'method','hierarchical')

Input

ori orientation
n number of clusters
omega maximum angle

Output

c list of clusters
center center of the clusters

Example

generate orientation clustered around 5 centers

cs = crystalSymmetry('432');
center = orientation.rand(5,cs);
odf = unimodalODF(center,'halfwidth',5*degree)
ori = odf.discreteSample(1500);
odf = SO3FunRBF (432 → y↑→x)

  multimodal components
  kernel: de la Vallee Poussin, halfwidth 5°
  center: 5 orientations

  Bunge Euler angles in degree
     phi1     Phi    phi2  weight
  156.958 109.836 223.608     0.2
  9.33344 126.207 190.491     0.2
  197.878 76.1995 48.4488     0.2
  156.716 113.621 184.888     0.2
  151.332 117.797 66.3984     0.2

find the clusters and its centers

[cId,centerRec] = calcCluster(ori,'silent');

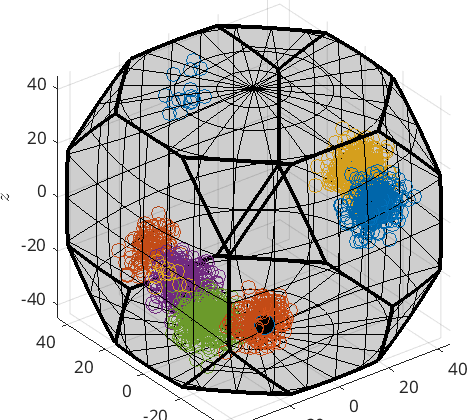

visualize result

for i = 1:length(centerRec)
plot(ori(cId==i),'axisAngle')
hold on
plot(centerRec(i),'MarkerFaceColor','k','MarkerSize',15)
end
hold off
%check the accuracy of the recomputed centers
min(angle_outer(center,centerRec)./degree)
ans =
    0.6137    2.0637    1.0360    2.1478    1.4003
