grain2d.findByLocation edit page

select a grain by spatial coordinates

Syntax

id = findByLocation( grains, pos )

Input

grains grain2d
pos vector3d, [x(:) y(:)], or [x(:) y(:) z(:)]

Output

grains list of grainIds

Example

mtexdata small silent
grains = calcGrains(ebsd)

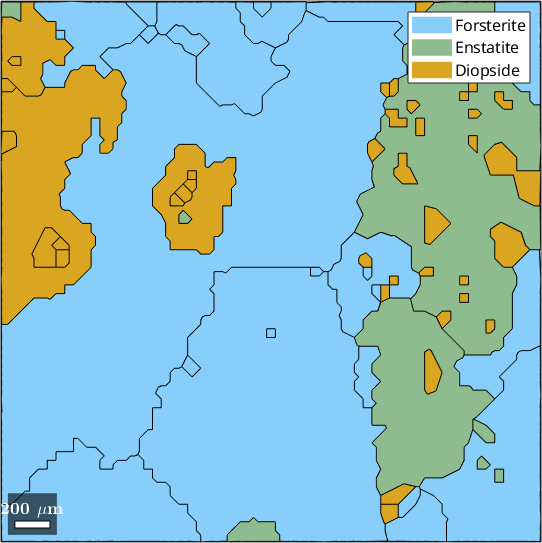

plot(grains)
grains = grain2d (y↓→x)

 Phase  Grains  Pixels     Mineral  Symmetry         Color
     1      24    1952  Forsterite       mmm  LightSkyBlue
     2       8     290   Enstatite       mmm  DarkSeaGreen
     3      44     282    Diopside     12/m1     Goldenrod

 boundary segments: 976 (51712 µm)
 inner boundary segments: 22 (1101 µm)
 triple points: 65

 Properties: meanRotation, GOS
p = [35000 5000] % for mouse selection use  p = ginput(1)
id = findByLocation(grains,p);

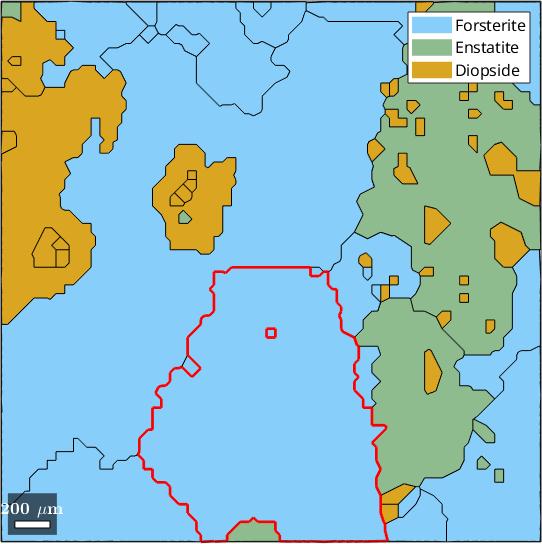

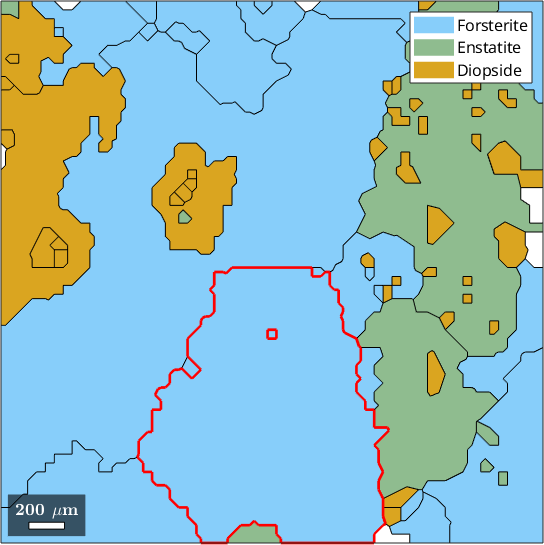

hold on, plot(grains(id).boundary,'linecolor','r','lineWidth',2), hold off
p =
       35000        5000

See also

EBSD.findByLocation grain2d.findByOrientation
