plotSection edit page

plot ODF sections

Syntax

plotSection(F,varargin)

Options

sections number of sections
points number of orientations to be plotted
all plot all orientations
resolution resolution of each plot

Flags

phi2 phi2 sections (default)
phi1 phi1 sections
gamma gamma sections
sigma sigma = phi1 - phi2 sections
axisAngle rotational angle sections
smooth smooth plot
countourf filled contour plot
contour contour lines
contour3, surf3, slice3 3d volume plot

Example

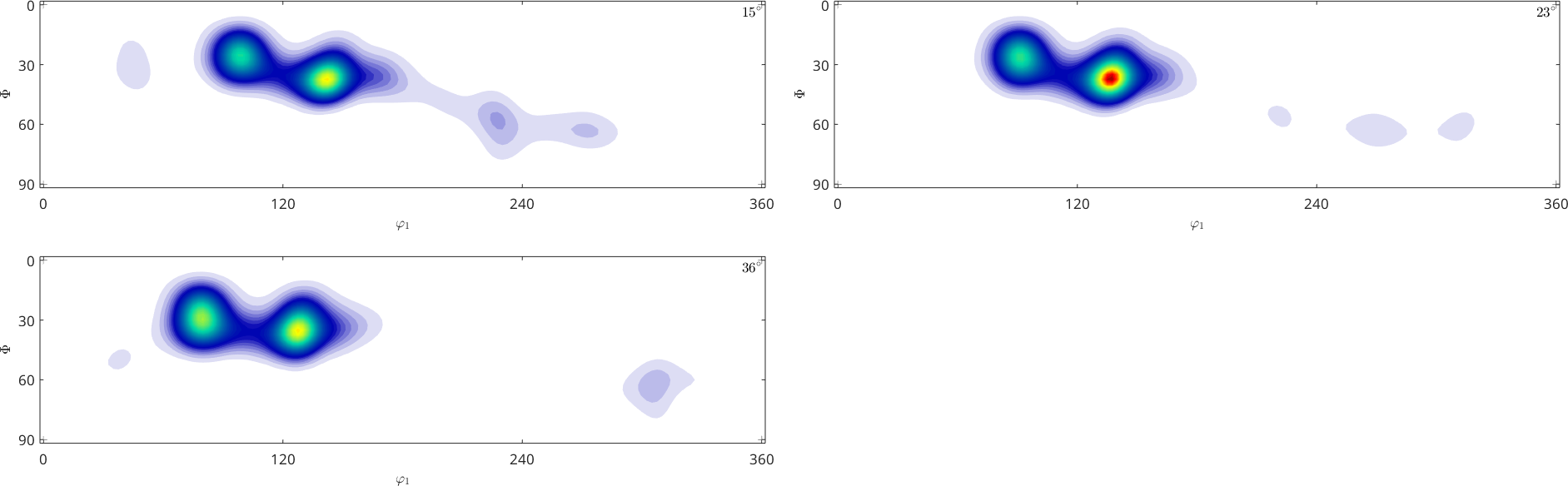

% Section plots at specific angles
plotSection(SO3Fun.dubna,'phi2',[15,23,36]*degree)

See also

saveFigure Plotting
