Syntax

[c,a,b] = fitEllipse(grains);
plotEllipse(c,a,b,'lineColor','r')

Input

grains grain2d

Output

`c`	`centroid`
`a`	`long axis`
`b`	`short axis`

Options

boundary scale to fit boundary length

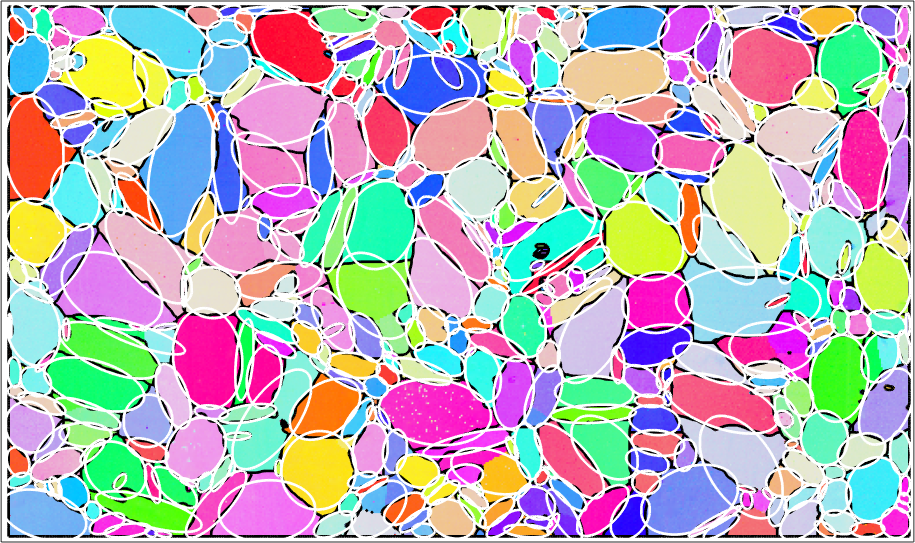

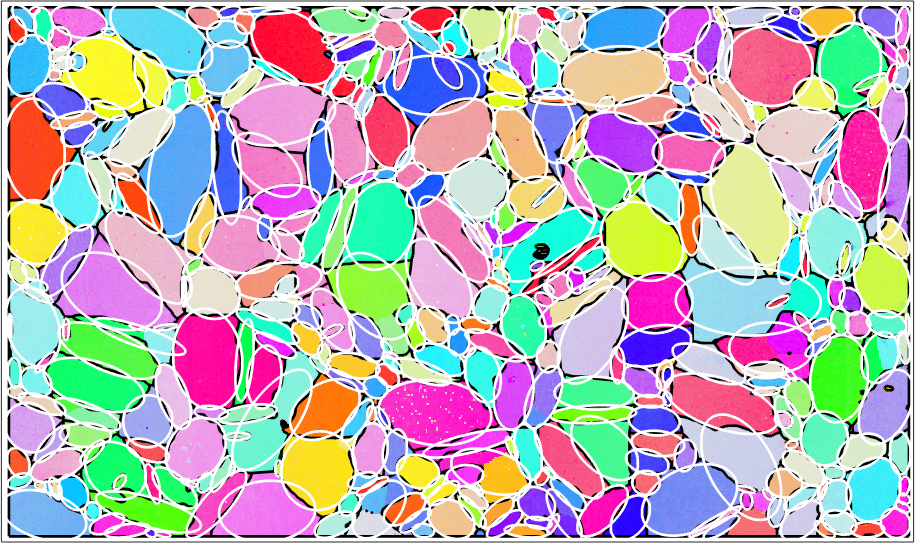

Example

mtexdata csl
grains = calcGrains(ebsd)
grains = smoothBoundary(grains,10)
plot(ebsd('indexed'),ebsd('indexed').orientations,'micronbar','off')
hold on
plot(grains.boundary,'lineWidth',2)
[c,a,b] = fitEllipse(grains(grains.numPixel>20));
plotEllipse(c,a,b,'lineColor','w','lineWidth',2)
hold off

ebsd = EBSD (y↓→x)

 Phase   Orientations     Mineral         Color  Symmetry  Crystal reference frame
     0    5 (0.0032%)  notIndexed          none
    -1  154107 (100%)        iron  LightSkyBlue      m-3m

 Properties: ci, error, iq
 Scan unit : um
 X × Y × Z : [0 → 511] × [0 → 300] × [0 → 0]
 Normal vector: (0,0,1)


grains = grain2d (y↓→x)

 Phase  Grains  Pixels  Mineral  Symmetry         Color
    -1     885  154107     iron      m-3m  LightSkyBlue

 boundary segments: 21982 (21981 µm)
 inner boundary segments: 93 (93 µm)
 triple points: 1451

 Properties: meanRotation, GOS


grains = grain2d (y↓→x)

 Phase  Grains  Pixels  Mineral  Symmetry         Color
    -1     885  154107     iron      m-3m  LightSkyBlue

 boundary segments: 19195 (17717 µm)
 inner boundary segments: 82 (78 µm)
 triple points: 1451

 Properties: meanRotation, GOS
