A notIndexed pixel is a real scan measurement whose diffraction pattern could not be indexed. Patterns measured at grain boundaries may combine signal from both neighbouring grains. Cracks, pores, scratches, surface contamination, or a phase omitted during indexing may also prevent a usable solution.
A missing lattice site is different: no retained measurement occupies that position. This can happen when a scan is interrupted or when selecting or cropping a map leaves an irregular footprint. Both cases appear as missing orientations, but their experimental meanings are not interchangeable.
MTEX can assign orientations to these positions from their neighbours. The assigned values are reconstructions, not measurements. Keep that provenance when the filled map is used for quantitative analysis.
This page assumes familiarity with selecting EBSD data, orientation maps, and grain reconstruction. Reducing random error at positions that already have orientations is the separate subject of Denoising Orientation Maps. Filling also cannot correct an indexed but wrong orientation. The next page, Correcting Pseudo Symmetry, treats one important source of that different error.
A complete map for comparison
The first example is an orientation map of ferrite. The object summary reports the indexed ferrite measurements and the measurements whose phase is notIndexed.
% import the data in its measurement frame
plottingConvention.default('y↓→x');
mtexdata ferrite
% reconstruct the grain structure
[grains,ebsd] = calcGrains(ebsd,'angle',10*degree,'minPixel',5);
% smooth the pixel staircase of the grain boundaries
grains = smoothBoundary(grains,5);
% plot the orientation map and its reconstructed grain boundaries

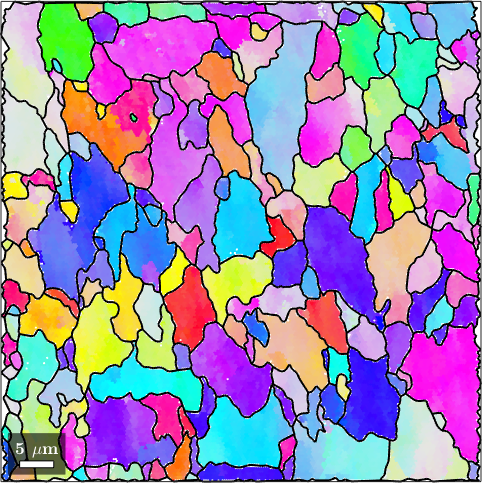

plot(ebsd,ebsd.orientations,'ipfDirection',zvector)
hold on
plot(grains.boundary,'linewidth',1.5)
hold offebsd = EBSDhex (y↓→x)
Phase Orientations Mineral Color Symmetry Crystal reference frame
-1 1 (0.0016%) notIndexed none
0 63044 (100%) Ferrite LightSkyBlue m-3m
Properties: ci, fit, iq, sem_signal, oldId
Scan unit : um
X × Y × Z : [0 → 70] × [0 → 70] × [0 → 0]
Normal vector: (0,0,1)
Hex grid :270 × 234

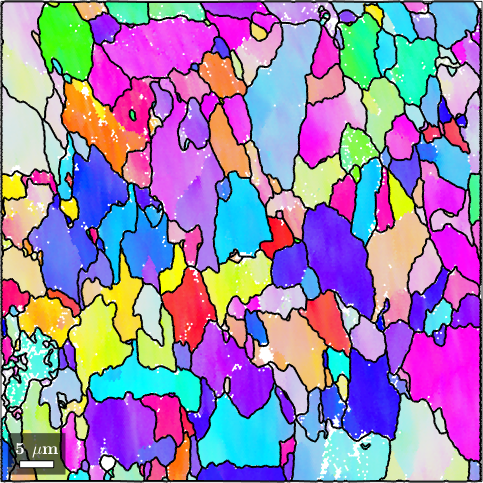

The boundary overlay supplies the geometric constraint used below. It separates missing positions in grain interiors from unresolved corridors along grain boundaries.
A very sparse measured data set
To make the two filling methods easy to compare, we discard approximately 75 percent of the measurements and retain approximately 25 percent. This removes measured positions as well as retaining the notIndexed measurements that happen to be sampled.
ebsdSub = ebsd(rand(length(ebsd),1) > 0.75)
% plot the retained data

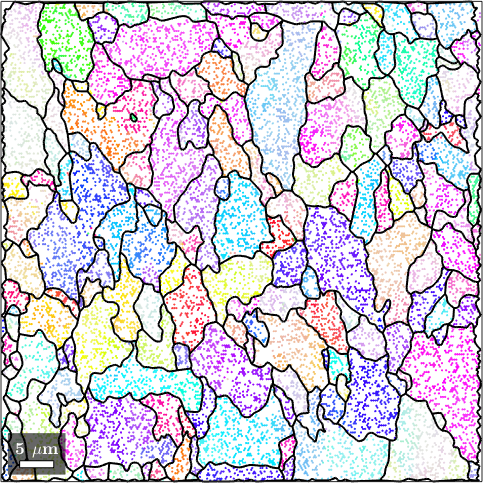

plot(ebsdSub,ebsdSub.orientations,'ipfDirection',zvector)ebsdSub = EBSD (y↓→x)
Phase Orientations Mineral Color Symmetry Crystal reference frame
-1 668 (4.2%) notIndexed none
0 15147 (96%) Ferrite LightSkyBlue m-3m
Properties: ci, fit, iq, sem_signal, oldId, grainId
Scan unit : um
X × Y × Z : [0 → 70] × [0 → 70] × [0 → 0]
Normal vector: (0,0,1)

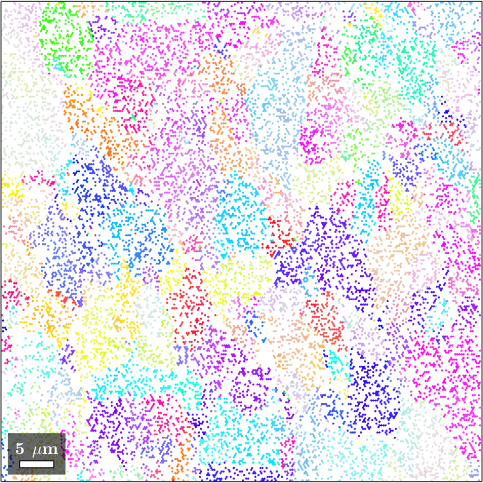

The object summary gives the exact retained counts. The plot now consists of isolated coloured measurements, so the original grain shapes cannot be read from the orientation map alone.
We first reconstruct grains from the retained quarter of the map. The option 'alpha' closes narrow notIndexed regions during segmentation; it does not itself assign orientations. See Grain Reconstruction for that distinction.
% reconstruct the grain structure
[grainsSub,ebsdSub] = calcGrains(ebsdSub,'angle',10*degree, ...
'minPixel',5,'alpha',15);
grainsSub = smoothBoundary(grainsSub,5);
hold on
plot(grainsSub.boundary,'linewidth',1.5)
hold off
The boundaries recover the main grain outlines despite the sparse input. They also divide the map into interiors that may be filled and boundary corridors that should remain unresolved.
Filling by nearest-neighbour interpolation
fill starts with nearest-neighbour interpolation. Pass the reconstructed grains whenever boundaries are known. MTEX then rejects positions outside every grain and prevents an orientation from being carried across a grain boundary. If the nearest measurement belongs to a different grain, MTEX uses the host grain's mean orientation instead. The flag 'gridify' returns the completed scan lattice as a matrix-shaped map; it does not change which values are assigned.
ebsdSub_filled = fill(ebsdSub,grainsSub,'gridify');

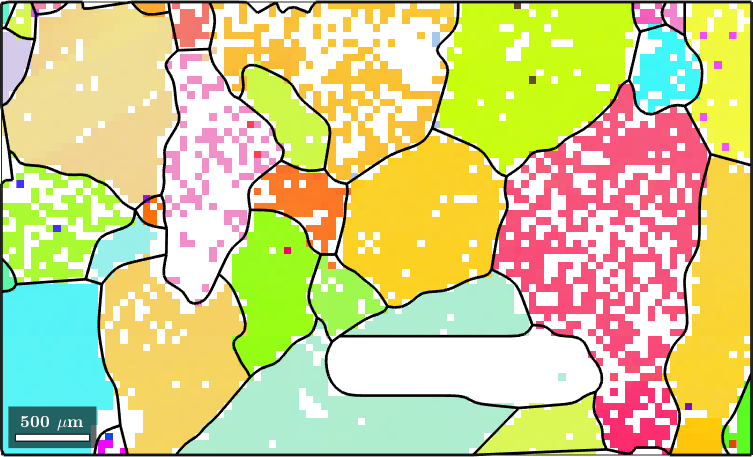

plot(ebsdSub_filled('indexed'), ...
ebsdSub_filled('indexed').orientations,'ipfDirection',zvector);
hold on
plot(grainsSub.boundary,'linewidth',1.5)
hold off
The grain interiors are now coloured. Sharp patches remain because a nearest-neighbour estimate repeats a measured orientation instead of creating a gradual orientation field. Positions not covered by a grain remain notIndexed, which preserves holes along the grain boundaries.
Filling with a denoising filter
A denoising filter can estimate the missing orientations while smoothing the orientation field. Supply the option 'fill' and the grains to smooth. The halfQuadraticFilter used here is a total-variation method for rotation-valued data; its mathematical basis is described by Bergmann et al. (2016).
In contrast to nearest-neighbour interpolation, the filter can create a smooth transition between the estimated orientations. It is still an estimate, and the reconstructed grain boundaries still constrain it. Neither method reconstructs the grains again. The supplied boundaries remain the segmentation model for the filled map.
F = halfQuadraticFilter;
F.alpha = 0.25;
% interpolate and smooth the missing orientations
ebsdSub_smoothed = smooth(ebsdSub,F,'fill',grainsSub);

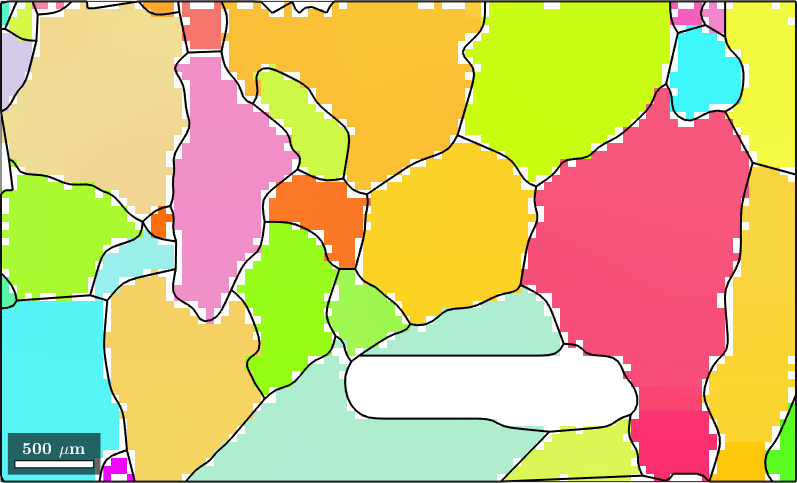

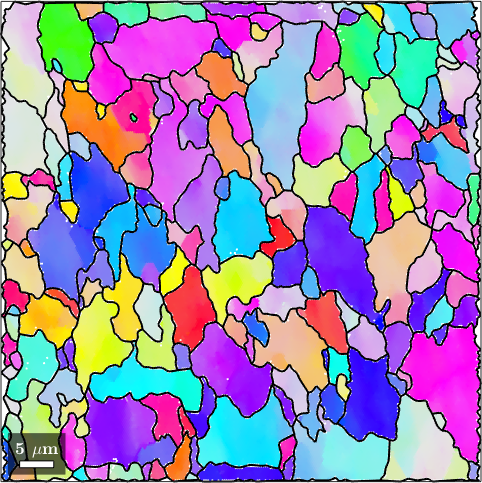

plot(ebsdSub_smoothed('indexed'), ...
ebsdSub_smoothed('indexed').orientations,'ipfDirection',zvector);
hold on
plot(grainsSub.boundary,'linewidth',1.5)
hold off
The repeated colour patches have become continuous fields inside the grains. The unfilled corridors still follow the reconstructed boundaries, so the smoother result has not erased the segmentation constraint.
Which data is interpolated
In these grain-constrained calls, both fill and smooth recover the orientation, phase, and grainId of a filled position. They do not invent values for the other per-pixel properties. The ferrite map carries these properties after filling:
fieldnames(ebsdSub_filled.prop)ans =
6×1 cell array
{'ci' }
{'fit' }
{'iq' }
{'sem_signal'}
{'oldId' }
{'grainId' }The properties ci, fit, and iq describe the recorded pattern or its indexing solution. The property sem_signal is the simultaneously recorded SEM signal. None has a measured value at a lattice site created by fill, so MTEX leaves each of them as NaN there.

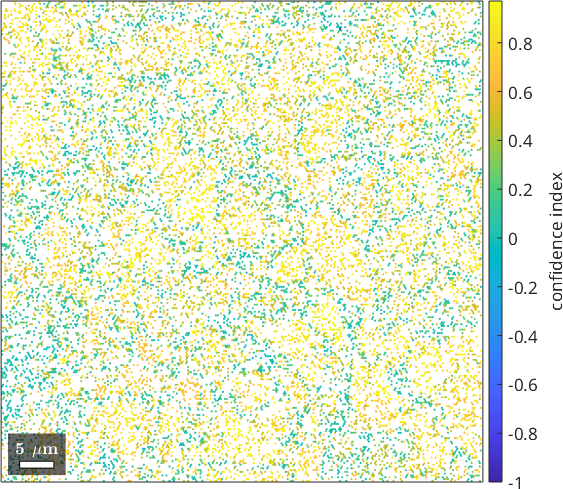

plot(ebsdSub_filled,ebsdSub_filled.ci)
mtexColorbar('title','confidence index')
The confidence-index map therefore retains blank sites even where the orientation map is filled. This is a feature: it prevents a reconstructed orientation from acquiring invented evidence of pattern quality.
For this data set, isnan(ci) identifies positions with no recorded confidence index. It is not a universal interpolation test because an imported quality property may already contain NaN. Store an explicit mask before filling when provenance must be tracked independently.
hasNoMeasuredCI = isnan(ebsdSub_filled.ci);
fprintf('%d of %d positions have no measured confidence index\n', ...
nnz(hasNoMeasuredCI),length(ebsdSub_filled))47400 of 63180 positions have no measured confidence indexThe command smooth provides a second marker. It stores a per-pixel property named quality and sets it to zero at every position that had no orientation before filtering. This includes original notIndexed measurements and lattice sites absent from the sparse subset.
fprintf('%d positions had no orientation before smoothing\n', ...
nnz(ebsdSub_smoothed.quality == 0))48134 positions had no orientation before smoothingFilling is not resampling
If all per-pixel properties are needed at arbitrary query positions, use interp. It transfers the complete record of the nearest existing measurement to a requested position. The page Interpolating EBSD Data develops that operation.
The requested position must be covered by an existing measurement cell. Thus interp resamples a map but does not fill a hole. Conversely, fill reconstructs missing orientations but deliberately leaves measured properties undefined.
A multiphase geological map
Geological samples often contain many notIndexed measurements because of relief, fractures, or phases that are difficult to index. The forsterite example also shows why phase and grain boundaries must constrain filling.
close all;
plottingConvention.default('y↑→x');
mtexdata forsterite silent
ebsd = ebsd(inpolygon(ebsd,[10 4 5 3]*10^3));
fprintf('The submap contains %.1f percent notIndexed measurements\n', ...
100*nnz(~ebsd.isIndexed)/length(ebsd))
plot(ebsd('Fo'),ebsd('Fo').orientations,'ipfDirection',zvector)
hold on
plot(ebsd('En'),ebsd('En').orientations,'ipfDirection',zvector)
plot(ebsd('Di'),ebsd('Di').orientations,'ipfDirection',zvector)
% compute and smooth grains
[grains,ebsd] = calcGrains(ebsd,'angle',10*degree, ...
'minPixel',3,'alpha',3);
grains = smoothBoundary(grains,5);
% plot the boundary of all grains
plot(grains.boundary,'linewidth',2)
hold offThe submap contains 29.0 percent notIndexed measurements
The printed fraction is 29.0 percent, and most of that white is speckle inside the grains. Some grains are peppered with it while their neighbours are almost clean, and 48 percent of all white pixels sit more than one 50 micrometre step from any boundary between two indexed grains. The two large white patches are areas that could not be indexed at all, which segmentation kept as notIndexed grains of their own.
Each phase is drawn with its own IPF key, so a colour identifies an orientation within a phase and not the phase itself. The figure shows where orientations are missing, not which mineral sits where.
The white that does follow the black outlines is the case filling must respect. There the interaction volume straddles two crystals, and giving such a position one neighbour's orientation would erase the uncertainty that marks the boundary.
Fill only grain interiors
The option 'fill' asks smooth to fill holes inside the grains. Passing grains is what lets MTEX decide whether a position is inside a grain. notIndexed positions along grain boundaries remain untouched.
F = halfQuadraticFilter;
F.alpha = 10;
ebsdS = smooth(ebsd,F,'fill',grains);
plot(ebsdS('Fo'),ebsdS('Fo').orientations,'ipfDirection',zvector)
hold on
plot(ebsdS('En'),ebsdS('En').orientations,'ipfDirection',zvector)
plot(ebsdS('Di'),ebsdS('Di').orientations,'ipfDirection',zvector)
% plot the boundary of all grains
plot(grains.boundary,'linewidth',1.5)
hold off
Colour now extends through holes in the grain interiors. The narrow white corridors that remain coincide with reconstructed boundaries, so the filled map does not claim a phase or orientation where the segmentation was deliberately unresolved.
Read the recovered orientation field
Absolute orientation colours can hide small intragranular changes. An axisAngleColorKey compares every orientation with its grain's mean orientation. The misorientation axis determines the hue, and the angle controls the colour saturation up to the chosen 2.5 degree maximum.
colorKey = axisAngleColorKey(ebsdS('Fo'));
colorKey.oriRef = grains(ebsdS('Fo').grainId).meanOrientation;
colorKey.maxAngle = 2.5*degree;
color = colorKey.orientation2color(ebsdS('Fo').orientations);
plot(ebsdS('Fo'),color,'micronbar','off')
hold on
colorKey.oriRef = grains(ebsdS('En').grainId).meanOrientation;
plot(ebsdS('En'), ...
colorKey.orientation2color(ebsdS('En').orientations))
% plot boundaries
plot(grains.boundary,'linewidth',4)
plot(grains('En').boundary,'lineWidth',4,'lineColor','r')
hold off

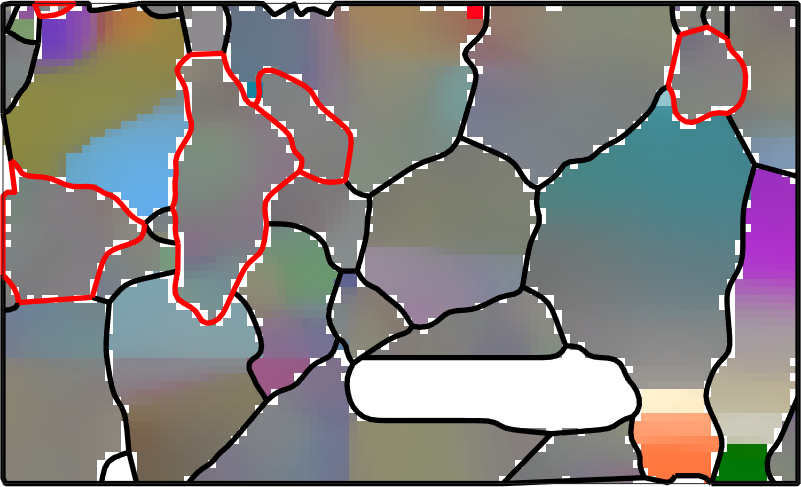

The colour changes smoothly through positions that previously lacked an orientation. This continuity is the filter's reconstruction of the intragranular orientation gradient, not newly measured deformation.
Compare it with the same view of the original map.
colorKey.oriRef = grains(ebsd('Fo').grainId).meanOrientation;
colorKey.maxAngle = 2.5*degree;
color = colorKey.orientation2color(ebsd('Fo').orientations);
plot(ebsd('Fo'),color,'micronbar','off')
hold on
colorKey.oriRef = grains(ebsd('En').grainId).meanOrientation;
plot(ebsd('En'),colorKey.orientation2color(ebsd('En').orientations))
% plot boundaries
plot(grains.boundary,'linewidth',4)
plot(grains('En').boundary,'lineWidth',4,'lineColor','r')
hold off
The original view breaks those smooth colour fields with white regions. The comparison shows exactly where filling supplied continuity and guards against reading the reconstructed pixels as independent observations.
Further reading
- F. Bachmann, R. Hielscher and H. Schaeben, Grain detection from 2d and 3d EBSD data - specification of the MTEX algorithm, Ultramicroscopy 111, 1720-1733, 2011, explains the spatial grain reconstruction that makes the boundary constraint possible.
- R. Hielscher, C. B. Silbermann, E. Schmidl and J. Ihlemann, Denoising of crystal orientation maps, Journal of Applied Crystallography 52, 984-996, 2019, compares filters, hole filling, and their effects on derived quantities.
- A. J. Schwartz, M. Kumar, B. L. Adams and D. P. Field, editors, Electron Backscatter Diffraction in Materials Science, second edition, Springer, 2009, provides the experimental background to indexing and cleanup.
- ASTM E2627-13(2019) standardizes EBSD grain-size measurements for fully recrystallized materials and requires a high proportion of reliably indexed patterns. It is a reminder that filled orientations do not increase the measured indexing rate.
Citing this page.
This page is part of the documentation of
MTEX, a free and open
source MATLAB toolbox for analyzing and modeling crystallographic textures.
It was written by The MTEX Developers and is published at
https://mtex-toolbox.github.io/EBSDFilling.html.
If you use MTEX, or reuse text or figures from this page, in your research,
please cite
F. Bachmann, R. Hielscher, H. Schaeben: Texture Analysis with MTEX - Free and Open Source Software Toolbox, Solid State Phenomena 160 (2010), 63-68. 10.4028/www.scientific.net/SSP.160.63
BibTeX
@article{bachmann2010mtex,
author = {F. Bachmann and R. Hielscher and H. Schaeben},
title = {Texture Analysis with MTEX - Free and Open Source Software Toolbox},
journal = {Solid State Phenomena},
volume = {160},
pages = {63-68},
year = {2010},
doi = {10.4028/www.scientific.net/SSP.160.63},
url = {https://doi.org/10.4028/www.scientific.net/SSP.160.63}
}
Other papers describing specific MTEX methods are listed under Publications — please cite the one that best fits your application. The MTEX source code is licensed under the GNU General Public License v2.0; the text and figures of this documentation are licensed under CC BY 4.0, which permits reuse — including by automated systems — provided The MTEX Developers and this page are credited.
