Fourier Series on the Circle

A function on the circle assigns a value to an in-plane angle \(\rho\). Its values repeat after \(2\pi\), so it is a \(2\pi\)-periodic function. Geometrically, its domain is also called the one-dimensional sphere \(\mathbb{S}^1\) or the one-dimensional torus.

The preceding Spherical Harmonics page introduced wave-like basis functions on the sphere. On the circle, only one integer mode remains, and the corresponding expansion is an ordinary Fourier series.

MTEX uses functions on the circle whenever a scalar quantity depends on an in-plane angle. Typical examples are

close all

Start from an explicit formula

MTEX offers two complementary representations. An S1FunHandle evaluates an explicit formula whenever a value is requested. An S1FunHarmonic stores a finite set of Fourier coefficients.

Begin with the formula

\[ f(\rho)=1+\frac{1}{2}\cos(2\rho). \]

Pass the anonymous MATLAB function to S1FunHandle.

S1F = S1FunHandle(@(rho) 1 + 0.5*cos(2*rho))

S1F = S1FunHandle
  eval: @(rho)1+0.5*cos(2*rho)

Plot the same function in two ways

A polar plot places each value along its angle. A Cartesian plot unfolds the circle and shows angle on the horizontal axis.

clf
subplot(1,2,1)
plot(S1F,'linewidth',2)
mtexTitle('Polar Plot')
subplot(1,2,2)
plot(S1F,'linewidth',2,'notPolar')
mtexTitle('Cartesian Plot')

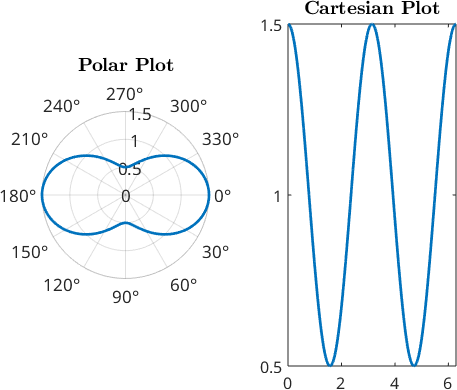

Read the two views

The Cartesian view makes the two maxima over one full turn easy to count. The polar view makes their opposite in-plane directions visible. Both panels show the same function, and neither changes its representation.

Construct a function from coefficients

Within S1FunHarmonic, the fhat property stores coefficients from mode \(-N\) through mode \(N\). It therefore contains an odd number of rows, and the centre row is the constant mode.

As an example, the following Fourier coefficients describe the real-valued function \(f(\rho)=4+\cos\rho+2\sin(2\rho)\).

fhat = [-1i; 0.5; 4; 0.5; 1i];
S1FCoeff = S1FunHarmonic(fhat)
coefficientMean = mean(S1FCoeff)

clf
subplot(1,2,1)
plot(S1FCoeff,'linewidth',2)
mtexTitle('Polar Plot')
subplot(1,2,2)
plot(S1FCoeff,'linewidth',2,'notPolar')
mtexTitle('Cartesian Plot')

S1FCoeff = S1FunHarmonic
  bandwidth: 2

coefficientMean =
     4

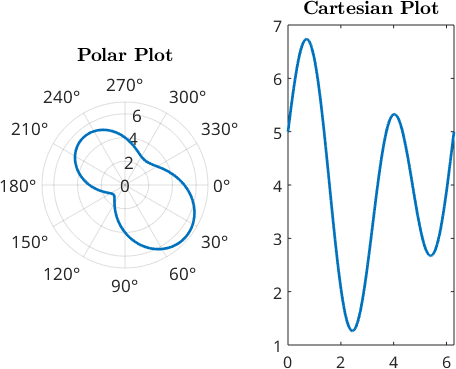

Read the coefficient example

The two coefficients of magnitude \(0.5\) form the cosine term. The outer imaginary coefficients form the sine term. A real-valued function has conjugate coefficients in opposite modes.

The centre entry is the mean value. In the vector as written it is 4, which is confirmed by coefficientMean.

Approximate a formula by a Fourier series

Constructing an S1FunHarmonic from an S1FunHandle computes the Fourier coefficients. The 'bandwidth' is the largest retained mode. A higher bandwidth generally improves the approximation but also increases the computational cost.

Computations with bandwidth 1024 are still very fast in practice and usually provide a good approximation. The much smaller bandwidth 20 is already sufficient for the smooth function below.

S1F = S1FunHandle(@(rho) exp(cos(rho)));
S1FH = S1FunHarmonic(S1F,'bandwidth',20)

rhoCheck = linspace(0,2*pi,1001).';
maxApproximationError = max(abs(S1F.eval(rhoCheck) - S1FH.eval(rhoCheck)))

clf
plot(S1F,'linewidth',2)
hold on
plot(S1FH,'--','linewidth',2)
hold off
legend('S1FunHandle','S1FunHarmonic')

S1FH = S1FunHarmonic
  bandwidth: 20
  even: true

maxApproximationError =
   1.0658e-14

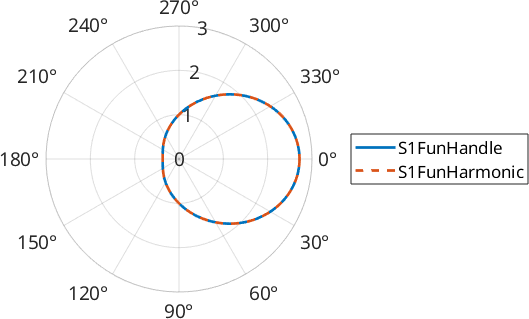

Read the approximation

The solid formula and dashed Fourier approximation overlap throughout the circle. The printed maximum error on the check grid is about \(1.1\mathbin{\times}10^{-14}\), so the remaining difference is at the scale of floating-point round-off.

Fit values sampled at angles

A function is often known only at a finite set of angles. S1FunHarmonic.interpolate constructs a periodic trigonometric polynomial from those samples. The result can be evaluated at arbitrary angles, plotted, differentiated, or used in later computations.

The bandwidth sets the number of Fourier modes in the interpolation. It should be large enough to resolve the measured angular variation. An unnecessarily large bandwidth can introduce oscillations or amplify noise.

rho = linspace(0,2*pi,11).';
values = 1 + cos(rho) + 2*sin(2*rho);

S1FI = S1FunHarmonic.interpolate(rho,values)
sampleResidual = max(abs(S1FI.eval(rho) - values))

clf
plot(rho,values,'x','displayName','samples')
hold on
plot(S1FI,'linewidth',2,'noPolar','displayName','periodic fit')
hold off
legend show

S1FI = S1FunHarmonic
  bandwidth: 3

sampleResidual =
   3.4361e-04

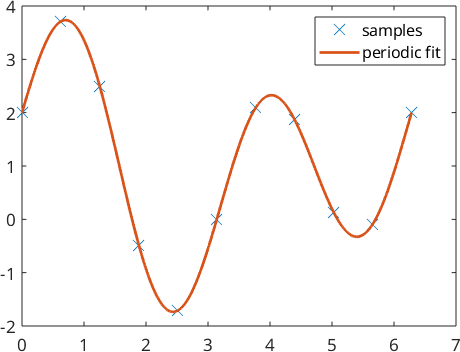

Read the sampled-data fit

The curve joins the angular trend and closes periodically between \(2\pi\) and zero. The default regularization leaves a maximum residual of about \(3.4\mathbin{\times}10^{-4}\) at these samples. Set bandwidth and regularization deliberately when the data contain noise or sharp changes.

Smooth small-scale oscillations

A harmonic function obtained from measured or interpolated data can contain small-scale oscillations or noise. smooth reduces those variations by convolution with an S1DeLaValleePoussinKernel.

The kernel halfwidth sets the angular scale of the smoothing. A small halfwidth preserves more local detail. A larger halfwidth produces a smoother function.

f = S1FunHandle(@(rho) 1 + cos(rho) + 0.4*cos(2*rho) + ...
  0.15*sin(20*rho) + 0.1*cos(35*rho));
f = S1FunHarmonic(f,'bandwidth',64);

fSmooth = f.smooth('halfwidth',8*degree);

clf
plot(f,'linewidth',2,'displayName','original')
hold on
plot(fSmooth,'linewidth',2,'displayName','smoothed')
hold off
legend show

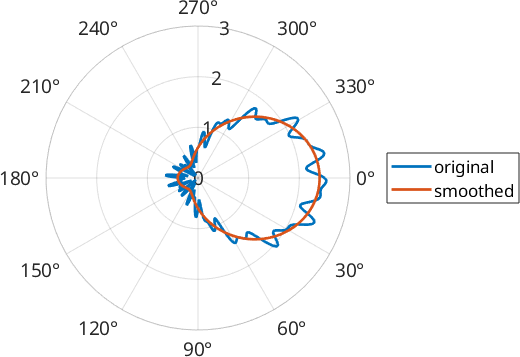

Read the smoothing result

The original curve has fine ripples from modes 20 and 35. The smoothed curve suppresses those ripples while retaining the broad mode-one and mode-two variation. Smoothing changes the function, so the halfwidth should be reported with any derived peak direction or density.

Compute integrals and extrema

Standard MATLAB operations apply directly to an S1FunHarmonic. Here S1FH is still the bandwidth-20 approximation of \(\exp(\cos\rho)\). mean returns its mean value, while sum returns its integral over the circle.

meanValue = mean(S1FH)
integralValue = sum(S1FH)

meanValue =
    1.2661
integralValue =
    7.9549

max and min return both the extreme value and its angular position.

[maxValue,maxPosition] = max(S1FH)
[minValue,minPosition] = min(S1FH)
extremePositionsDegree = [maxPosition,minPosition] ./ degree

maxValue =
    2.7183
maxPosition =
     0
minValue =
    0.3679
minPosition =
    3.1416
extremePositionsDegree =
         0  180.0000

Read the operations

The mean is about 1.2661, and the integral is about 7.9549. Their ratio is \(2\pi\). The maximum is \(\mathrm e\) at zero degrees, while the minimum is \(\mathrm e^{-1}\) at 180 degrees.

Estimate a density from angular data

Periodic functions also arise after density estimation from circular data. For example, rho is the azimuth angle of a three-dimensional direction. Passing these angles with the 'periodic' option makes calcDensity return an S1FunHarmonic.

rng default
v = vector3d.rand(1000);
fun = calcDensity(v.rho,'periodic')
densityMean = mean(fun)

clf
plot(fun,'linewidth',2)

fun = S1FunHarmonic
  bandwidth: 59

densityMean =
     1

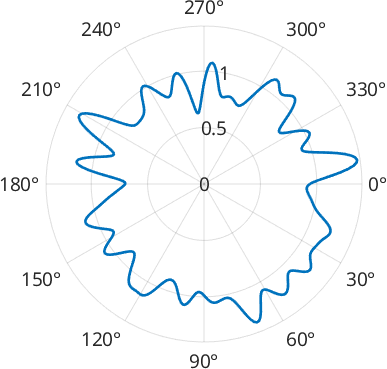

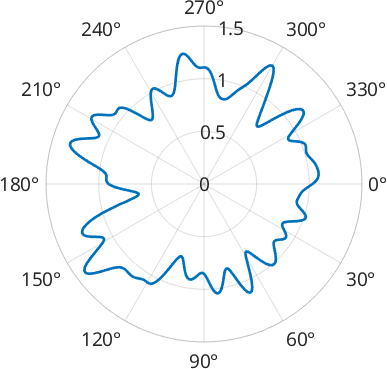

Read the angular density

The directions were sampled uniformly, so the density fluctuates around a flat value rather than forming a stable preferred direction. Its mean is one because calcDensity normalizes the periodic density. A pronounced reproducible peak would instead indicate a preferred azimuth.

The maths behind the Fourier representation

A \(2\pi\)-periodic function can be represented as a weighted sum of sines and cosines. MTEX uses the numerically convenient complex exponentials \(\mathrm e^{-\mathrm i k\rho}\). A finite series of bandwidth \(N\) is

\[ f(\rho)=\sum_{k=-N}^{N}\hat f_k\, \mathrm e^{-\mathrm i k\rho}, \qquad \rho\in[0,2\pi). \]

MTEX uses the coefficient convention

\[ \hat f_k=\frac{1}{2\pi}\int_0^{2\pi}f(\rho)\, \mathrm e^{\mathrm i k\rho}\,\mathrm d\rho. \]

The constant coefficient \(\hat f_0\) is therefore the mean value,

\[ \operatorname{mean}(f)=\frac{1}{2\pi}\int_0^{2\pi} f(\rho)\,\mathrm d\rho. \]

The integral returned by sum is

\[ \operatorname{sum}(f)=\int_0^{2\pi}f(\rho)\,\mathrm d\rho =2\pi\,\operatorname{mean}(f). \]

References

Next

Continue with Ellipse Based Shape Parameters to apply periodic density functions to grain long-axis and shortest-caliper directions.
