SO3Fun.transformReferenceFrame edit page

change reference frame of an ODF

Syntax

SO3F = transformReferenceFrame(SO3F,cs)

Input

odf SO3Fun
cs new crystalSymmetry

Output

odf SO3Fun

Example

cs1 = crystalSymmetry('121',[1 3 2]);
cs2 = crystalSymmetry('112',[2 1 3]);
ori = orientation.rand(cs1)
odf1 = SO3FunHarmonic(unimodalODF(ori))
%odf1 = BinghamODF([1 0 0 0],ori)
%odf1 = SO3FunHandle(@(ori) odf1.eval(ori),odf1.CS)
odf2 = transformReferenceFrame(odf1,cs2)
ori = orientation (121 → y↑→x)

  Bunge Euler angles in degree
     phi1     Phi    phi2
  156.958 161.468 197.878


odf1 = SO3FunHarmonic (121 → y↑→x)
  bandwidth: 25
  weight: 1


odf2 = SO3FunHarmonic (112 → y↑→x)
  bandwidth: 25
  weight: 1

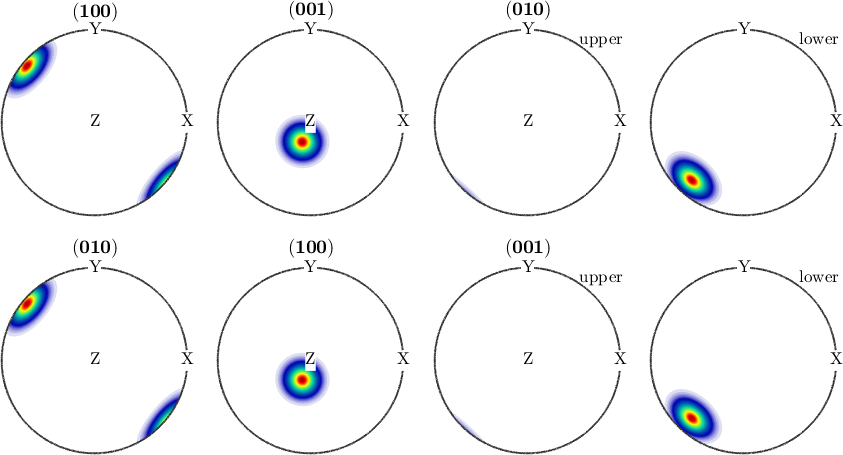

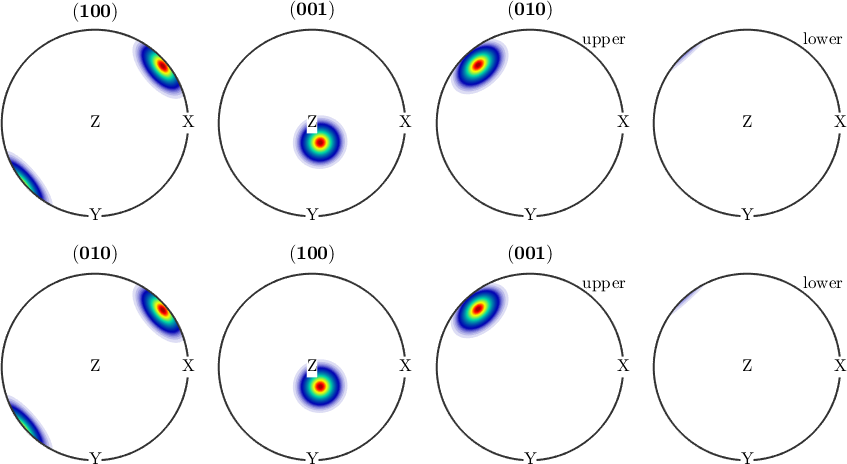

plotPDF(odf1,Miller({1,0,0},{0,0,1},{0,1,0},cs1))
nextAxis(2,1)
plotPDF(odf2,Miller({0,1,0},{1,0,0},{0,0,1},cs2))
