Grain Reconstruction introduced the threshold angle,
alpha, and minPixel. This page shows how to replace parts of the reconstruction
rather than tune those three settings.
A grain is a phase-homogeneous, spatially connected region of EBSD pixels produced by segmentation. This page assumes that definition and the basic reconstruction workflow. If misorientation is new to you, first see Misorientation Theory.
It helps to separate calcGrains into three operations:
- partition the measured surface into cells
- assign a connectivity to each pair of neighbouring cells
- collect connected cells into grains
The first sections replace the second operation. The later sections compare two spatial decompositions used by the first. Denoising orientations and filling missing orientations are separate preprocessing decisions; see Denoising Orientation Maps and Fill Missing Data in Orientation Maps.
We use the same subregion of the forsterite data set as the basic page.
import time
import numpy as np
from mtex import *
plottingConvention.default('y↑→x')
ebsd = mtexdata('forsterite')
ebsd = ebsd[ebsd.inpolygon(np.array([5, 2, 10, 5]) * 1e3)]
The grain boundary criterion
A grainBoundaryCriterion evaluates arrays of neighbouring pixel indices at once. It
returns one connectivity per pair, from 0 for separated to 1 for fully connected.
The discrete angle criterion uses three values:
1means no boundary0.5means a boundary drawn inside a connected grain0means a grain boundary that separates the cells
Without clustering, every positive connectivity joins the graph used to form grains. A
connectivity at or below 0.5 is also drawn as a boundary. A continuous criterion can
therefore draw a boundary between two cells that remain connected through the grain.
The soft-threshold example below makes this distinction visible.
Normally calcGrains constructs a criterion from its options. It also accepts a
criterion object directly. These calls perform the same reconstruction, so their
summaries would only repeat one another.
ebsdUniform = ebsd.copy()
grainsUniform = calcGrains(ebsdUniform, angle=10 * degree, minPixel=5)
ebsdFromObject = ebsd.copy()
grainsFromObject = calcGrains(ebsdFromObject, gbcAngle(10 * degree), minPixel=5)
print(f'Option and criterion object give identical grain ids: {int(np.array_equal(ebsdUniform.grainId, ebsdFromObject.grainId))}')
Option and criterion object give identical grain ids: 1
MTEX supplies gbcAngle, gbcSoft, gbcCustom, gbcVariants, and gbcFMC. The
default is gbcAngle. The basic page uses gbcFMC for
deformed microstructures. The criterion gbcVariants separates variant ids during
parent grain reconstruction. The three remaining
alternatives are developed here.
Phase-dependent thresholds
Different phases may require different boundary angles. A list gives one threshold per
phase, in the order of ebsd.CSList. Its displayed summary makes that order explicit.
ebsd.CSList
phaseList
Phase Mineral Color Symmetry Crystal reference frame
0 notIndexed
1 Forsterite LightSkyBlue mmm Forsterite
2 Enstatite DarkSeaGreen mmm Enstatite
3 Diopside Goldenrod 12/m1 Diopside
4 Silicon LightCoral m-3m Silicon
The first entry is notIndexed. It is never used as an angular threshold, but it must
be present. The other four entries belong to the four minerals. Here forsterite, the
phase that carries the deformation in this specimen, is separated at 5 degrees. The
other phases keep the 10 degree threshold.
threshold = [10 * degree, # notIndexed, never used
5 * degree, # Forsterite
10 * degree, # Enstatite
10 * degree, # Diopside
10 * degree] # Silicon
grainsPhase = calcGrains(ebsd.copy(), angle=threshold, minPixel=5)
print(f"Forsterite grains: uniform 10 degree = {len(grainsUniform['Forsterite'])}; phase-dependent = {len(grainsPhase['Forsterite'])}")
Forsterite grains: uniform 10 degree = 56; phase-dependent = 63
The printed counts show that the lower forsterite threshold splits that phase more finely. The other phases use exactly the same criterion as in the uniform reconstruction and are unchanged.
An entry may itself be a pair [highAngle, lowAngle]. The first angle separates grains;
the second records internal boundaries. See
Subgrain Boundaries for that distinction.
Soft thresholds
A hard threshold is discontinuous in the data. Neighbouring pixels 9.9 degrees apart remain together, while pixels 10.1 degrees apart separate, although the physical distinction is unlikely to be that sharp.
gbcSoft replaces the step with an error function. Its two parameters are the centre
angle and transition width. Connectivity then decreases gradually across the band.
grainsSoft = calcGrains(ebsd.copy(), gbcSoft(10 * degree, 2 * degree), minPixel=5)
grainsHard14 = calcGrains(ebsd.copy(), angle=14 * degree, minPixel=5)
softPhaseCounts = np.bincount(grainsSoft.phaseId, minlength=len(ebsd.CSList))
hardPhaseCounts = np.bincount(grainsHard14.phaseId, minlength=len(ebsd.CSList))
print(f'Soft [10 2] and hard 14 degree phase counts agree: {int(np.array_equal(softPhaseCounts, hardPhaseCounts))}')
print(f'Soft-criterion boundary segments inside grains: {len(grainsSoft.innerBoundary)}')
Soft [10 2] and hard 14 degree phase counts agree: 1
Soft-criterion boundary segments inside grains: 28
On its own, the soft criterion still forms grains from positive graph connections. The error function reaches numerical zero only after its transition has saturated, so this example merely raises the effective splitting angle. Its phase counts match a hard 14 degree threshold.
The fractional values still record the transition band. A pair past the centre can have a boundary drawn while remaining connected inside its grain. Those weights become useful when Markovian Clustering replaces connected components with a weighted graph clustering.
Segmenting by another per-pixel property
gbcCustom separates neighbouring pixels when a supplied per-pixel property differs by
more than a threshold. The property may be numeric, a vector3d, or a quaternion.
Vectors and quaternions are compared by their angle.
The custom criterion compares only that property; it does not add a phase check. Subset a multiphase map to one phase, as below, or enforce phase separation in a criterion of your own. This keeps the resulting grains phase-homogeneous.
Here grains are defined by their c-axis alone. Two forsterite pixels may belong to the same grain whenever their c-axes agree, regardless of the rotation about that axis.
fo = ebsd['Forsterite']
cAxis = fo.orientations * Miller(0, 0, 1, fo.CS)
grainsC = calcGrains(fo.copy(), gbcCustom(cAxis, 10 * degree, antipodal=True), minPixel=5)
grainsA = calcGrains(fo.copy(), angle=10 * degree, minPixel=5)
print(f'Full-orientation grains: {len(grainsA)}; c-axis grains: {len(grainsC)}')
Full-orientation grains: 73; c-axis grains: 70
The flag antipodal is passed to angle. It makes the c-axis an axis rather than a
direction. Without it, opposite senses of the same axis would be treated as different.

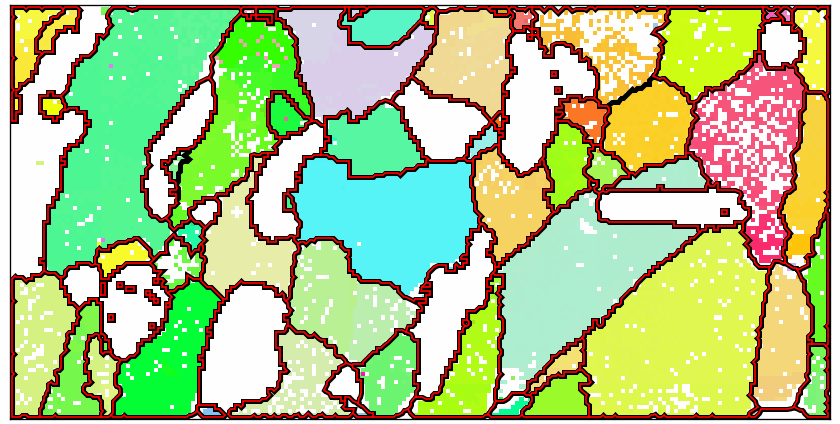

Draw the ordinary reconstruction in black and the c-axis reconstruction in red. Black segments that remain visible mark boundaries across which the c-axes agree but the rotations about them differ.
ipfKey = ipfColorKey(fo.CS)
ipfColor = ipfKey.orientation2color(fo.orientations)
plot(fo, ipfColor, micronbar=False)
hold(True)
plot(grainsA.boundary, lineWidth=3, lineColor='black')
plot(grainsC.boundary, lineWidth=1, lineColor='red')
hold(False)

Only a few black segments remain on this specimen. The printed counts show that 69 full-orientation grains become 66 c-axis grains. Such mergers would be more common in a material with a strong fibre texture.
Writing your own criterion
A custom criterion is a subclass of grainBoundaryCriterion. Implement the method
connectivity(ebsd, i, j). The arrays i and j list neighbouring pixel indices and
the output must have the same size.
This example requires both a small misorientation and adequate band contrast. The
second condition stops a grain from leaking through a chain of poorly indexed pixels.
The value minBC = 50 is specific to the data and acquisition settings; inspect the
band-contrast distribution before choosing it.
class gbcAngleAndBC(grainBoundaryCriterion):
def __init__(self, threshold=10 * degree, minBC=50):
self.threshold, self.minBC = threshold, minBC
def connectivity(self, ebsd, i, j):
# delegate the misorientation part
out = gbcAngle(self.threshold).connectivity(ebsd, i, j)
# veto connections through low band contrast
bad = (ebsd.bc.reshape(-1)[i] < self.minBC) | (ebsd.bc.reshape(-1)[j] < self.minBC)
out[bad] = 0
return out
It can then be passed like any other criterion:
grains = calcGrains(ebsd, gbcAngleAndBC(), minPixel=5)
The spatial decomposition
The option alpha changes the first reconstruction operation: the spatial support from
which cells are built. By default, MTEX closes the indexed region with a raster disk
whose radius is alpha pixel spacings. A notIndexed region narrower than 2*alpha is
crossed by surrounding cells; a wider region remains a separate notIndexed grain. The
default is alpha = 3.1.
The work of raster closing grows with the area of the disk. MATLAB’s flag 'delaunay'
instead computes a Delaunay triangulation of the indexed pixels and keeps a triangle
when its circumradius is at most alpha pixel spacings, an exact alpha complex whose
cost changes little as alpha grows; that route is not part of this port, the closing
here is by a distance transform whose cost does not grow with the disk either.
t = time.time()
grainsRaster = calcGrains(ebsd.copy(), angle=10 * degree, minPixel=5, alpha=60)
print(f'Elapsed time is {time.time() - t:.3f} seconds.')
Elapsed time is 13.452 seconds.
Diagnose the notIndexed regions first
Choosing one alpha for a whole map need not be guesswork. calcGrains returns
connected notIndexed areas as grains, so their size and shape can be inspected with
the tools from Shape Parameters. Setting alpha = 0 closes
nothing, so narrow notIndexed areas stay where they are instead of being absorbed into
their neighbours.
grainsOpen = calcGrains(ebsd.copy(), angle=10 * degree, alpha=0)
notIndexedGrains = grainsOpen['notIndexed']
notIndexedGrains
grain2d (y↑→x)
size: 1064
Phase Grains Mineral Color Symmetry Crystal reference frame
0 1064 (3229 pixels) notIndexed
boundary segments: 7456, inner: 0, triple points: 807
Pixel counts give a first scale estimate. The equivalent-circle radius of a region with
n pixels is sqrt(n/pi) pixel spacings.
numPixel = notIndexedGrains.numPixel
print(f'median pixels: {np.median(numPixel):g}, 99th percentile: {np.nanquantile(numPixel, 0.99):g}, '
f'maximum: {np.max(numPixel)}, maximum equivalent radius in pixels: {np.sqrt(np.max(numPixel) / np.pi):.2f}')
median pixels: 1, 99th percentile: 31.85, maximum: 355, maximum equivalent radius in pixels: 10.63
The table shows that most areas are isolated failed measurements, while a few are regions in their own right. The largest contains 355 pixels and has an equivalent-circle radius of about 10.6 pixels. This radius suggests the scale to inspect; it does not predict the closing value by itself. Closing responds to the narrowest width and therefore also to shape.
The ratio below is a quick size-and-compactness diagnostic. It is high for large,
compact blobs and low for small or ragged areas. It is not a scale-free compactness
measure because the numerator grows with area and the denominator counts boundary
segments. Use shapeFactor when shape must be compared apart from size.

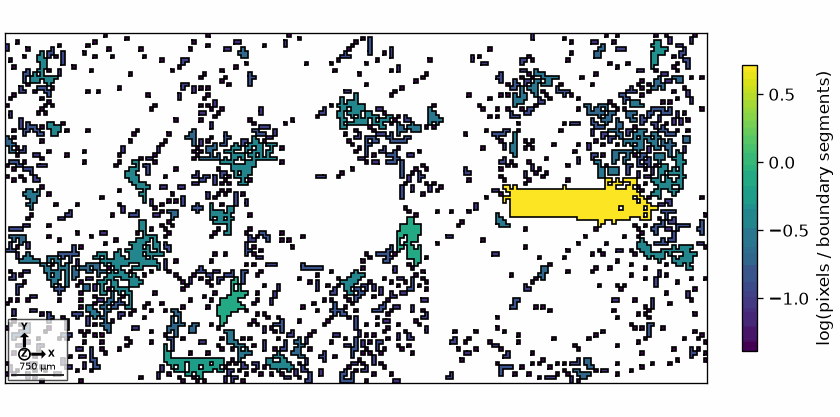

plot(notIndexedGrains, np.log(notIndexedGrains.numPixel / notIndexedGrains.boundarySize))
mtexColorbar(title='log(pixels / boundary segments)')

High colours identify the larger, more compact holes that can justify preservation. Low
colours mark isolated pixels and ragged indexing failures that a closing may reasonably
absorb. The map is a diagnostic, not an automatic choice of alpha.
A notIndexed pixel and an absent grid position have different experimental meanings.
The first is a real measurement whose pattern could not be indexed; the second has no
retained measurement. The spatial decomposition treats both as positions without an
indexed orientation, so alpha acts on both. Deleting measurements therefore creates a
gap for segmentation; it does not assign orientations there. To reconstruct
orientations, see Fill Missing Data in Orientation Maps.
Choosing the next step
Use a custom criterion when the physical separator is another per-pixel quantity. Use the spatial options when the uncertainty is where the map has support. In either case, repeat the reconstruction over defensible nearby settings before treating a grain count or size distribution as measured.
Continue with Markovian Clustering when fractional criterion weights should influence the grouping itself. The resulting boundaries and their internal boundaries are developed in Grain Boundaries and Subgrain Boundaries. Standards for reporting EBSD grain size are listed on the basic reconstruction page.
References
- F. Bachmann, R. Hielscher, and H. Schaeben,
Grain Detection from 2d and 3d EBSD Data - Specification of the MTEX Algorithm,
Ultramicroscopy 111 (2011), 1720-1733. This paper derives the Voronoi
reconstruction used by
calcGrains. - H. Edelsbrunner, D. G. Kirkpatrick, and R. Seidel, On the Shape of a Set of Points in the Plane, IEEE Transactions on Information Theory 29 (1983), 551-559. This paper introduces planar alpha shapes.
- P. Soille, Morphological Image Analysis: Principles and Applications, 2nd ed., Springer, 2003. The chapters on dilation, erosion, opening, and closing provide the image-processing basis for the raster decomposition.
Technical details
calcGrains writes into the map it is given, so every reconstruction here runs on
ebsd.copy() to keep the comparisons on the same map. gbcSoft([10 2]*degree) is
gbcSoft(10 * degree, 2 * degree), and a custom criterion overrides connectivity
where MATLAB’s overrides doEvaluate. The Delaunay route and the Markovian clustering
are not ported; the closing is a distance transform at integer radius, which absorbs
less than MATLAB’s raster disk at small alpha.
