The boundary of a set of three-dimensional grains is one surface mesh for the whole volume. Every face separates two grains and, when the grains were reconstructed from voxels, knows the two voxels it separates. Along the edges where three grains meet run the triple lines, and where four grains meet sits a quadruple point. These contacts constrain grain growth and provide possible paths for intergranular transport or damage. This page measures how much interface is present and shows how the junctions connect it, using the IN100 volume of the reconstruction page.
plottingConvention.default('y↑→x');
how2plot = plottingConvention.default3D;
fname = fullfile(mtexDataPath,'EBSD','SmallIN100_MeshStats.dream3d');
ebsd = EBSD3.load(fname);
[grains,ebsd] = calcGrains(ebsd,'angle',5*degree);
gB = grains.boundarygB = grain3Boundary (y↑→x)
faces mineral 1 mineral 2 area
120000 unknown notIndexed 16%
637562 unknown unknown 84%One face, two grains, two voxels
A face is a triangle, two per voxel face. grainId holds the two grains it separates, with the face normal pointing from the first into the second. ebsdId holds the two voxels on either side, and misorientation the misorientation between their orientations, computed from the voxels rather than from the grain means. Faces on the outer hull of this voxel reconstruction have a zero in the second column of both. In a general imported mesh the zero can occur on either side, so test both columns.
[gB.grainId(1:5,:), gB.ebsdId(1:5,:)]ans =
150 56 21 22
150 56 21 22
56 137 26 27
56 137 26 27
137 51 35 36Count area, not triangles: refining a face changes its mesh count without adding any physical interface. The following fractions distinguish the measurement hull from contacts between indexed grains.
faceArea = gB.area;
isHull = any(gB.grainId == 0,2);
isIndexed = all(gB.isIndexed,2) & ~isHull;
[sum(faceArea(isHull)), sum(faceArea(isIndexed))] / sum(faceArea)ans =
0.1584 0.8416Select faces
A boundary is selected like a list: by the grains at its sides, by phase, or by any property of the faces. The faces of one grain, the faces between two grains, and the faces above a misorientation angle are three common selections.
[~,largestIndex] = max(grains.volume);
id = grains(largestIndex).id;
gBid = gB(any(gB.grainId == id,2));
neighbours = setdiff(unique(gBid.grainId(:)),[0 id]).';
gBpair = gB(any(gB.grainId == id,2) & any(gB.grainId == neighbours(1),2));
gBhigh = gB(gB.misorientation.angle > 30*degree & all(gB.grainId > 0,2));
[length(gBid), length(gBpair), length(gBhigh)]ans =

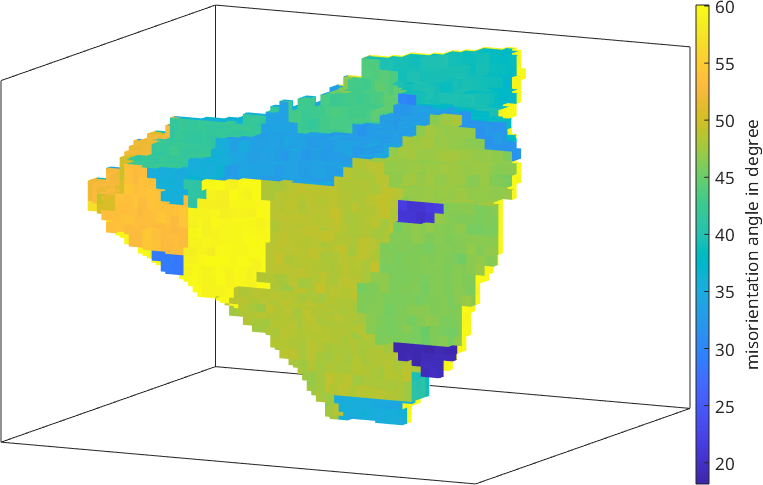

16524 300 547682The largest grain, with its faces coloured by the misorientation angle across them. Each triangle has one value, but the values may vary over a contact between the same two grains: they come from the local voxel orientations. Missing orientations and the measurement hull do not supply a meaningful misorientation angle.
plot(gBid,gBid.misorientation.angle./degree,'edgeAlpha',0.1,'micronbar','off')
setCamera(how2plot)
mtexColorbar('title','misorientation angle in degree')
Edges, triple lines and quadruple points
edges lists every edge once and tells for each face which three edges bound it. An edge on two faces lies inside a boundary face, an edge on three or more faces on a triple line. nodeType counts the grains at every vertex: 2 inside a face, 3 on a triple line, 4 at a quadruple point, and 10 more for a vertex on the outer hull.
[E,F2E] = edges(gB);
isTripleLine = accumarray(F2E(:),1) >= 3;
t = nodeType(gB);
[size(E,1), nnz(isTripleLine), nnz(mod(t,10) == 3), nnz(mod(t,10) >= 4)]ans =

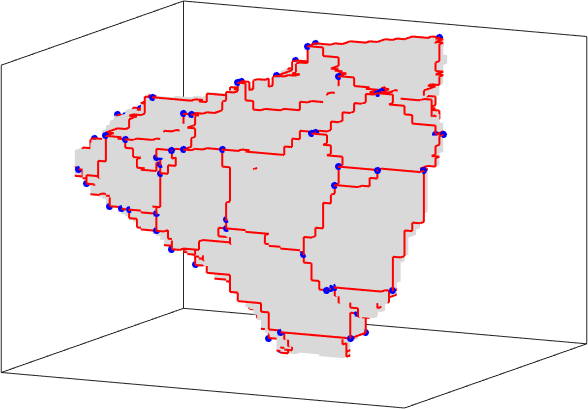

1103992 62789 42406 4004The triple lines of the largest grain, drawn over its faces. Every line is where a neighbour ends and the next one begins, and the lines meet at the quadruple points.
V = gB.allV.xyz;
onGrain = false(size(V,1),1); onGrain(gBid.F(:)) = true;
onGrainEdge = false(size(E,1),1);
onGrainEdge(F2E(any(gB.grainId == id,2),:)) = true;
Eid = E(isTripleLine & onGrainEdge,:);
X = [V(Eid(:,1),1), V(Eid(:,2),1), nan(size(Eid,1),1)].';
Y = [V(Eid(:,1),2), V(Eid(:,2),2), nan(size(Eid,1),1)].';
Z = [V(Eid(:,1),3), V(Eid(:,2),3), nan(size(Eid,1),1)].';
plot(gBid,'FaceColor',[0.85 0.85 0.85],'edgeAlpha',0.1,'micronbar','off')
hold on
line(X(:),Y(:),Z(:),'Color','r','LineWidth',1.5)
isQuad = mod(t,10) >= 4 & onGrain;
scatter3(V(isQuad,1),V(isQuad,2),V(isQuad,3),30,'b','filled')
hold off
setCamera(how2plot)
The counts describe mesh vertices, not numbers of physical junctions. A triple line has many vertices, and voxel corners can join more than four grains. Types above 10 identify junctions on the measurement hull.
n = accumarray(t(t>0),1);
[find(n), n(n>0)]ans =
2 241422
3 41328
4 3806
5 167
6 4
11 46985
12 11912
13 1078
14 27From faces to the boundary character

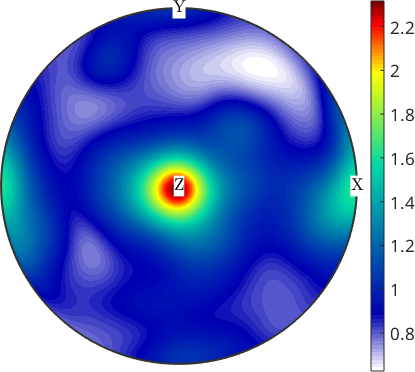

Each face carries all five parameters of a grain boundary: the misorientation of the two grains and the normal of the face. The normals of the voxel surface point along the axes, so the surface has to be smoothed first, see Smoothing, before the boundary normal distribution or the boundary character distribution reads anything but the voxel grid.
grainsS = smoothBoundary(reduceBoundary(grains,2,'quadric'),taubinFilter(20));
gBS = grainsS.boundary('indexed');
plot(calcGBND(gBS),'upper','micronbar','off')
mtexColorbar
How much internal boundary is there per unit volume?
Boundary area per specimen volume is a useful geometric input when comparing interfacial storage or transport between microstructures. Each shared face appears once in grains.boundary. Summing grains.surface instead would count an internal interface twice and include the hull.
internal = all(grainsS.boundary.grainId > 0,2);
internalArea = sum(grainsS.boundary(internal).area);
boundaryAreaDensity = internalArea / sum(grainsS.volume)boundaryAreaDensity =
0.8423The unit is inverse length. This value uses all internal contacts and the full reconstructed volume. To report only indexed grain boundaries, use grainsS.boundary('indexed') and state the corresponding volume denominator.
What fraction of indexed boundary area has a low angle?
Use a stated angle threshold and weight by face area. This describes the local misorientation stored on the reconstructed faces, rather than a count of low-angle grain pairs. After coarsening, the retained faces carry inherited misorientations; remeasure from the original data if local orientation gradients are the quantity of interest.
angleLimit = 15*degree;
lowAngle = gBS.misorientation.angle < angleLimit;
lowAngleAreaFraction = sum(gBS(lowAngle).area) / sum(gBS.area)lowAngleAreaFraction =
0.0292A low-angle fraction alone does not establish a connected boundary path. Connectivity also requires the grain pairs and junction network. Likewise, the specimen-frame normal distribution above describes preferred interface inclinations, not preferred crystallographic planes. For one selected phase, calcGBND(gBS,grainsS('phase name')) transforms normals into the crystal frame; see Boundary Normal Distribution.
Function reference
|
Function |
Purpose |
Function |
Purpose |
|
list mesh edges and face incidence |
classify junction vertices |
||
|
colour boundary faces |
draw face-normal directions |
||
|
estimate the normal distribution |
list adjacent grain pairs |
References
- G. S. Rohrer, Measuring and interpreting the structure of grain-boundary networks, Journal of the American Ceramic Society 94 (2011), 633-646, the five parameter description of a boundary and its distribution from a triangle mesh.
- M. A. Groeber, M. A. Jackson, DREAM.3D: a digital representation environment for the analysis of microstructure in 3D, Integrating Materials and Manufacturing Innovation 3 (2014), the node types of the boundary network.
Next
Continue with Neper Interface to construct a synthetic comparison, or go to Properties to measure grain size and shape. Smoothing explains the geometric treatment used before the surface measurements above.
