Authors: Vivian Tong; Stefan Olovsjö, Seco Tools AB, R&D Materials and Technology, 737 82 Fagersta, Sweden. Contact: vivian.tong@extern.tu-freiberg.de
Sometimes the EBSD map and the SEM images are not stored the same way round. Rotate the stage between two acquisitions, load a map from software that writes its scan lines in the other direction, or import images taken in a separate session, and the two no longer agree about which way the sample points.
TrueEBSD will not guess at this, because guessing wrong does not fail loudly — the matching still runs, still fits, and hands back a finished-looking result that is quietly nonsense. So it asks, and this page shows how to answer.
What a reference frame is, what a layout is and how gridify and imageFrame put a map in the order a picture is stored in is MTEX rather than TrueEBSD, and is explained on Maps and Images. This page assumes it and gets on with the workflow.
The short WC-Co page is the ordinary case, where everything was collected in one session and there is nothing to say. Read that one first; this page is the same workflow with one extra step.
Everything here is part of MTEX - nothing has to be installed alongside it.
The data
The same cut-down WC-Co dataset as the short page: an EBSD map and four SEM images of the same area.
No plotting convention is set here. A convention decides how things are drawn; it has no bearing on how they are stored, and it is the storage that matters when two pictures are compared pixel by pixel.
mtexdata trueEbsdWCCoSmall
img = ebsd.opt.trueEbsdImgs;ebsd = EBSDsquare (y↓→x, row↓→col)
Phase Orientations Mineral Color Symmetry Crystal reference frame
0 89 (0.72%) notIndexed none
1 11180 (91%) W C LightSkyBlue -6m2 X||a*, Y||b, Z||c
2 991 (8.1%) Co-fcc DarkSeaGreen m-3m
3 28 (0.23%) Co-hcp Goldenrod 6/mmm X||a*, Y||b, Z||c
Properties: bc, bs, bands, MAD, quality, oldId
Scan unit : um
X × Y × Z : [10 → 30] × [8 → 23] × [0 → 0]
Normal vector: (0,0,1)
Square grid :96 × 128
source: trueEbsdWCCo, centre half of the field of view, coarsened 4x
madeBy: trueEBSD tools/makeWCCoSmall.mTurn the map, to have something to fix
To get a map and images that disagree, turn the map through 90°. This is what a stage rotation between acquisitions would leave you with: the map now shows the specimen at right angles to what the detectors saw.
ebsd = rotate(ebsd,90*degree);Build the sequence
Exactly as on the short page. Nothing here mentions the rotation — as far as this code knows, these are just five pictures of one sample.
imgList = [mapImage(ebsd.bc, ebsd, 'name','bcImg'), ...
mapImage(img.fsdB3, 'dxy',img.pixSzImg, 'name','fsdB3'), ...
mapImage(img.fsdT3, 'dxy',img.pixSzImg, 'name','fsdT3'), ...
mapImage(img.fsdT1, 'dxy',img.pixSzImg, 'name','fsdT1'), ...
mapImage(img.fsdT10, 'dxy',img.pixSzImg, 'name','fsdT10')];
% some simple filtering
imgList(2:end) = rescale(imboxfilt(imgList(2:end),3));
% the same four distortions as the short page, one per hop
T = [spatialTransformShift + spatialTransformDrift, ...
spatialTransformId, ...
spatialTransformShift, ...

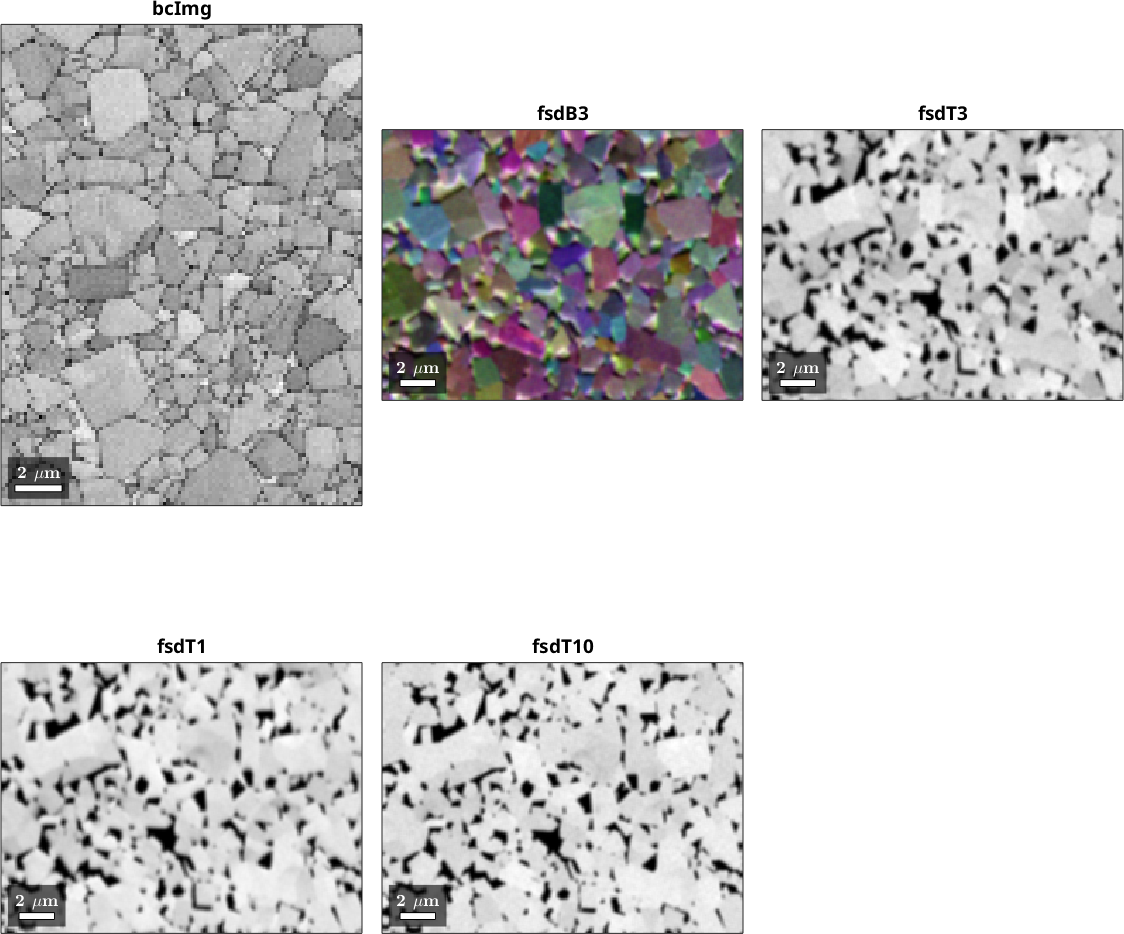

spatialTransformTilt];Plotting the sequence shows the problem at once: the EBSD map is on its side relative to the four images.
plot(imgList)
Fix it by turning the map's frame until the plots agree with each other — here the map needs 'x↑→y' and the images keep the default. This is the part only you can supply: it is a fact about how the data was collected, and no amount of looking at the numbers will recover it.
ebsdFrame = imgList(1).frame;
ebsdFrame.how2plot = 'x↑→y';

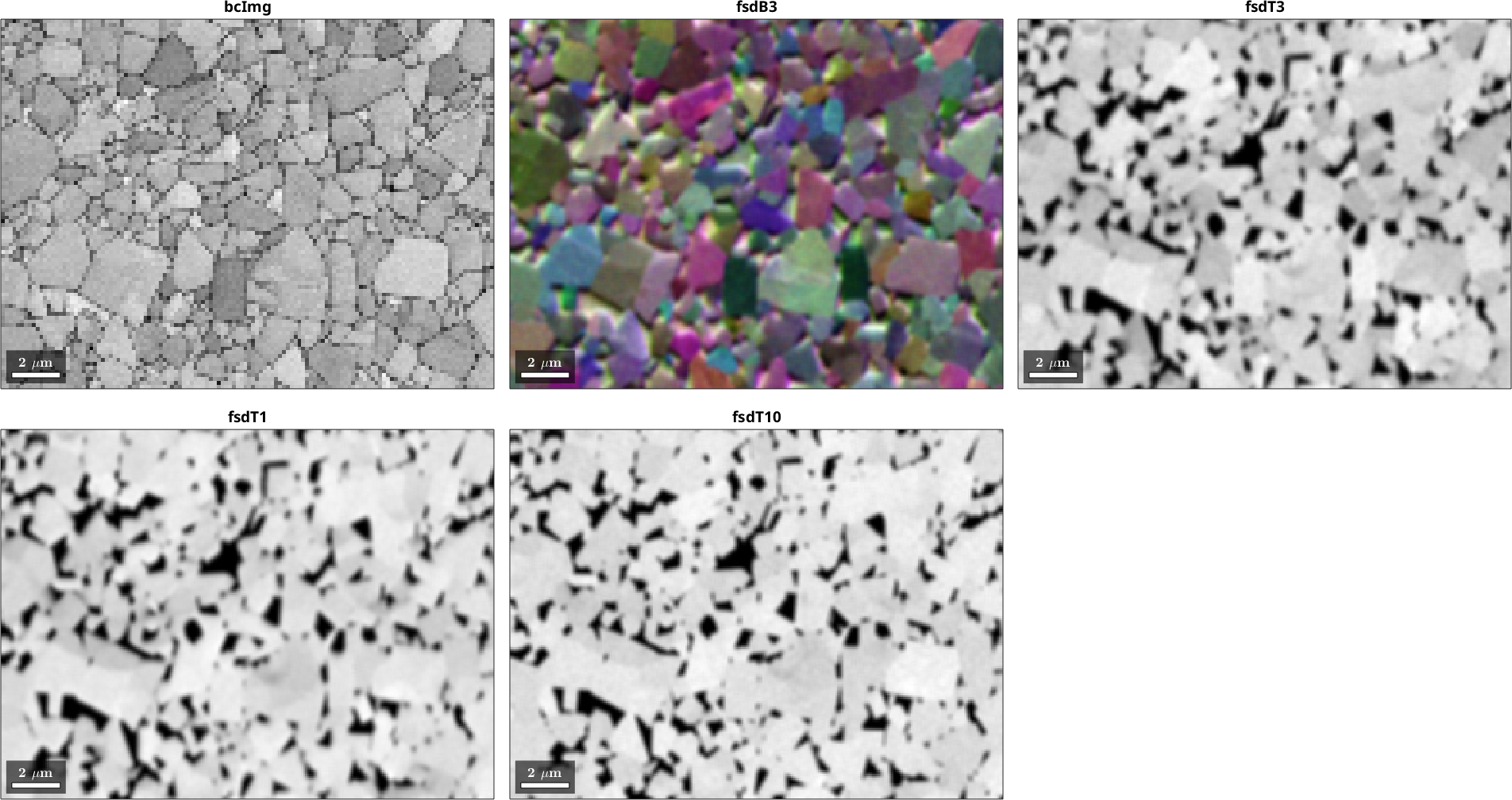

plot(imgList)
All five now agree on screen, which is the assertion TrueEBSD needs, and 'byScreenAlignment' restates it as a rotation.
imgList = transformReferenceFrame(imgList, ebsdFrame, 'byScreenAlignment')
plot(imgList)imgList = mapImage (x↑→y)
image pixel frame layout name EBSD
1 96 × 128 0.16 um x↑→y row↓→col bcImg W C, Co-fcc, Co-hcp
2 192 × 256 × 3 0.08 um x↑→y row↓→col fsdB3 -
3 192 × 256 0.08 um x↑→y row↓→col fsdT3 -
4 192 × 256 0.08 um x↑→y row↓→col fsdT1 -
5 192 × 256 0.08 um x↑→y row↓→col fsdT10 -
Run the workflow
From here nothing is different. The sequence is in one frame, so the rest is the ordinary workflow — see the short page for what each step does.
job = trueEbsd2(imgList,T);
job.pixelSizeMatch
job.setOptions('numROI',16)
job.setOptions(3:5,'registerOn','raw')
job.calcDistortion('fitErr')using default pixel size of 0.079501 um, minimum from imgList
ans = trueEbsd2 (pixel size matched)
name image distortion shift, px residual, px
1 bcImg 192 × 256 shift-drift - -
2 fsdB3 192 × 256 × 3 identity - -
3 fsdT3 192 × 256 shift - -
4 fsdT1 192 × 256 tilt - -
5 fsdT10 192 × 256 - -
common grid: 192 × 256 at 0.08 µm
ans = trueEbsd2 (pixel size matched)
name image distortion shift, px residual, px
1 bcImg 192 × 256 shift-drift - -
2 fsdB3 192 × 256 × 3 identity - -
3 fsdT3 192 × 256 shift - -
4 fsdT1 192 × 256 tilt - -
5 fsdT10 192 × 256 - -
common grid: 192 × 256 at 0.08 µm
ans = trueEbsd2 (pixel size matched)
name image distortion shift, px residual, px
1 bcImg 192 × 256 shift-drift - -
2 fsdB3 192 × 256 × 3 identity - -
3 fsdT3 192 × 256 shift - -
4 fsdT1 192 × 256 tilt - -
5 fsdT10 192 × 256 - -
common grid: 192 × 256 at 0.08 µm
◆ measured settings, override with setOptions
▸ edgeWidth per map 4 4 5 5 5 px
▸ roiSize per hop 32 64 64 64 px ← shifts 5.0 1.2 3.2 3.5 px, features 4 7 5 5 px
◆ distortion across 5 maps, 4 hops
distortion stage ROI shift, px residual, px
──────────── ───────────── ──────── ────────────────── ──────────────────
● bcImg
│ shift-drift shift 32 px 4.19 (+0.99,+0.12)
│ drift 32 px 3.72 (+0.33,+0.34)
│ ↳ residual 3.36 (+0.26,+0.19)
│ ↻ residual over 2 px, retrying with a 64 px ROI
│ shift-drift shift 64 px 3.64 (+2.20,+1.84)
│ drift 64 px 2.04 (+0.23,+0.49)
│ ↳ residual 1.53 (+0.07,+0.09)
▼
● fsdB3
│ identity · · 0.00 (+0.00,+0.00)
│ ↳ difference 1.20 (-0.11,-1.02)
▼
● fsdT3
│ shift shift 64 px 3.18 (-2.67,-1.73)
│ ↳ residual 0.33 (+0.12,+0.23)
▼
● fsdT1
│ tilt projective 64 px 3.63 (+2.84,-2.25)
│ poly11 64 px 0.29 (+0.07,-0.12)
│ poly22 64 px 0.29 (+0.07,-0.12)
│ ↳ residual 0.28 (+0.06,-0.12)
▼
● fsdT10
ans = trueEbsd2 (shifts calculated)
name image distortion shift, px residual, px
1 bcImg 192 × 256 shift-drift 1.08 (+0.20,+0.08) 1.53 (+0.07,+0.09)
2 fsdB3 192 × 256 × 3 identity 0.00 (+0.00,+0.00) 1.20 (-0.11,-1.02)
3 fsdT3 192 × 256 shift 3.18 (-2.67,-1.73) 0.33 (+0.12,+0.23)
4 fsdT1 192 × 256 tilt 0.35 (+0.16,-0.03) 0.28 (+0.06,-0.12)
5 fsdT10 192 × 256 - -

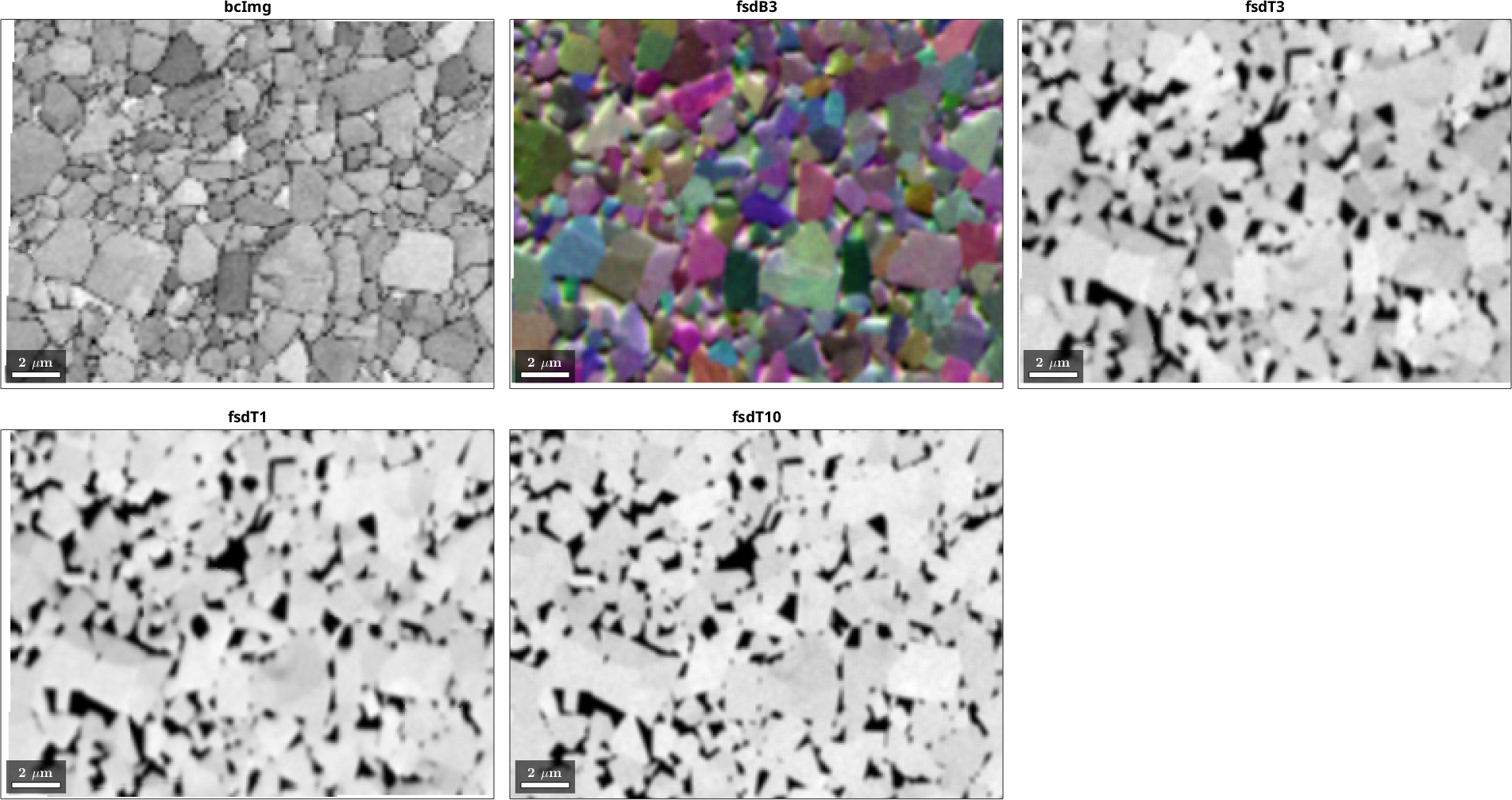

common grid: 192 × 256 at 0.08 µmjob.undistort
plot(job.undistortedList)ans = trueEbsd2 (undistorted)
name image distortion shift, px residual, px
1 bcImg 192 × 256 shift-drift 1.08 (+0.20,+0.08) 1.53 (+0.07,+0.09)
2 fsdB3 192 × 256 × 3 identity 0.00 (+0.00,+0.00) 1.20 (-0.11,-1.02)
3 fsdT3 192 × 256 shift 3.18 (-2.67,-1.73) 0.33 (+0.12,+0.23)
4 fsdT1 192 × 256 tilt 0.35 (+0.16,-0.03) 0.28 (+0.06,-0.12)
5 fsdT10 192 × 256 - -
common grid: 192 × 256 at 0.08 µm
Check the result
The aligned images are properties of the map, exactly as on the short page.

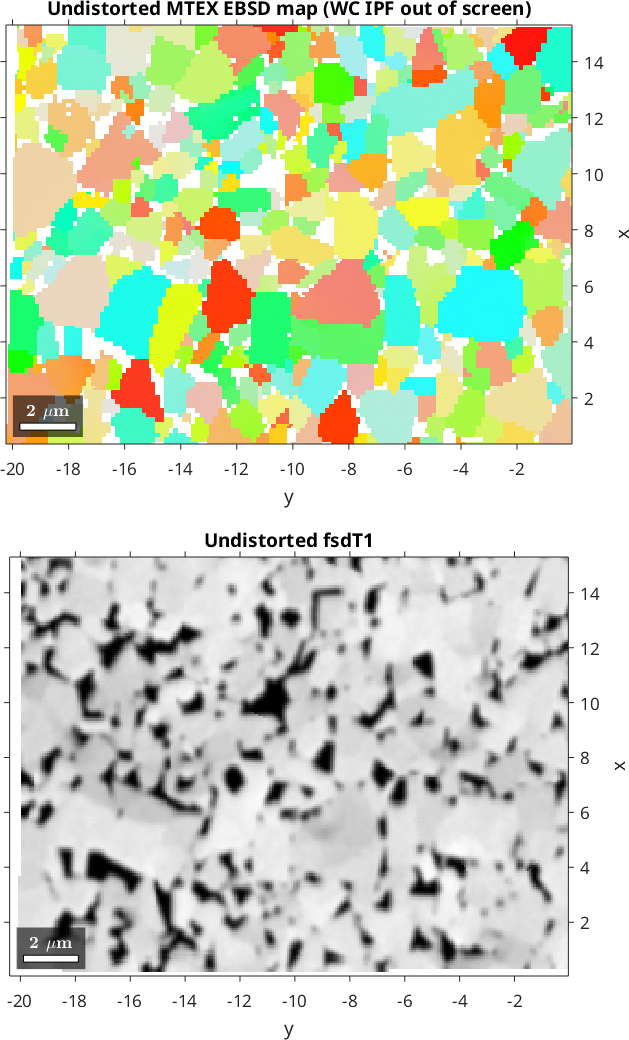

The map and the images come out the same way round and the same shape. That is the point of having said which frame everything is in: gridify takes a layout, so the map is rebuilt in the frame you asked for rather than in MTEX's standard one, and ebsd.bc can then be put beside an aligned image pixel for pixel with nothing in between.
ebsdOut = job.undistortedList(1).ebsd;
fprintf('aligned image: %d × %d\n', size(job.undistortedList(1).img,1), size(job.undistortedList(1).img,2));
fprintf('EBSD object : %d × %d\n', size(ebsdOut,1), size(ebsdOut,2));
figure
nextAxis
plot(ebsdOut('W C'), ebsdOut('W C').orientations, 'coordinates','on')
title('Undistorted MTEX EBSD map (WC IPF out of screen)','Color','k')
nextAxis
im = ebsdOut.fsdT1;
if size(im,3) > 1, im = mean(im,3); end
plot(ebsdOut, im, 'coordinates','on')
mtexColorMap gray
title('Undistorted fsdT1','Color','k')aligned image: 192 × 256
EBSD object : 192 × 256
The real test is whether the alignment worked. Compare the map's band contrast against the image aligned to it — they should track each other closely, and they do, just as well as on the short page where no rotation was involved. Saying which way round the map was cost nothing in quality; it only made an otherwise impossible case possible.
a = double(ebsdOut.bc);
b = double(job.undistortedList(1).img);
k = isfinite(a) & isfinite(b) & a > 0;
r = corrcoef(a(k),b(k));
fprintf('corr(ebsd.bc, aligned image) = %.4f\n', r(1,2));corr(ebsd.bc, aligned image) = 0.9305Finish
Everything this page added to the short workflow was two lines: turning the map's frame until the plots agreed, and one call to transformReferenceFrame to say so. The sequence, the distortions, the box settings and the result are identical.
If your map and images were collected the same way up you need none of it. Reach for this when the plots disagree, or when building the job stops with trueEbsd:frameMismatch — which is TrueEBSD telling you it has spotted the problem rather than guessing past it.
