Importing Crystal Orientations

A list of crystal orientations usually arrives as a text file with one orientation per row. Unlike an EBSD map, the list has no spatial positions. Importing it requires the numeric representation, the crystal symmetry, and the reference frames in which the numbers were defined.

This page assumes the orientation map introduced in Defining Orientations and the Euler-angle conventions from Defining Rotations. It uses a three-column file of Bunge Euler angles in degrees.

from mtex import *

plottingConvention.default('y↑→x')

# load the quartz symmetry and its crystal reference frame from a CIF file
cs = crystalFrame.load('quartz.cif')

Name the Columns

The file contains three numeric columns but no header. Their names tell orientation.load that the columns are the Bunge angles \((\varphi_1,\Phi,\varphi_2)\). The file is one of the sample data sets, fetched on first use.

fname = mtexdatafile('tongue')
ori = orientation.load(fname, cs, columnNames=['phi1', 'Phi', 'phi2'])
ori

orientation (Quartz → y↑→x)
  size: 382
  Bunge Euler angles in degree
  phi1   Phi  phi2
   309  21.7  98.4
   297  31.2   101
  58.9    13  56.8
   285  31.1  17.7
   290  31.3  13.5
     ⋮     ⋮     ⋮
   3.4  21.1    47
   318  53.9  73.2
   135  47.2  88.8
   131   9.2  81.8
   321    42  70.8

The display reports a list of 382 orientations. It also identifies the quartz crystal symmetry and the specimen frame. MTEX stores all 382 orientations in this one vectorized object.

Check the Imported Texture

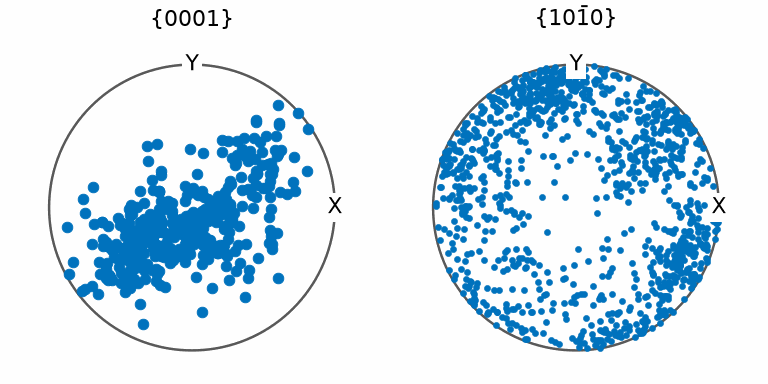

A pole figure is a useful first sanity check, although it cannot prove a convention by itself. Here the \((0001)\) and \((10\bar{1}0)\) poles should show the texture carried by the imported orientations.

plotPF(ori, Miller([[0, 0, 0, 1], [1, 0, -1, 0]], cs))

Notice that the \((0001)\) poles concentrate around ND, whereas many \((10\bar{1}0)\) poles lie closer to the rim. The imported population is therefore textured rather than randomly distributed.

What the Options Are For

For Euler input, the three angle columns are mandatory. Further named columns are returned in a dictionary by loadOrientation, as in ori, properties = loadOrientation(...). The keys are converted to lower case and have whitespace removed.

The names and positions solve different problems. For example, columns=[3, 1, 6] selects physical columns 4, 2, and 7, while columnNames=['phi1', 'Phi', 'phi2'] assigns their meanings in that order.

Four columns named ['Quat real', 'Quat i', 'Quat j', 'Quat k'] are read as the quaternion components. Quaternions avoid the Euler-angle sequence and angular-unit questions, but they do not identify the mapping direction or either reference frame.

Four Questions to Answer Before Trusting the Result

A plain numeric file does not contain enough information to distinguish several valid interpretations. All four questions below must be answered from its header, accompanying documentation, or a known physical feature.

• Which Euler-angle convention? This example uses the Bunge column names; the columns alpha, beta, gamma are read as Matthies angles. Equal angle triplets in other conventions describe different orientations. Import those numeric columns and pass them to orientation.byEuler with the convention named explicitly; see Defining Rotations.

• Degrees or radians? The importer reads degrees unless radians=True is passed; it does not guess the unit from the values. A file of angles in radians read as degrees gives valid-looking results, so the unit must come from the file’s documentation.

• Active or passive? MTEX orientations map coordinates from the crystal frame into the specimen frame. Do not select passive=True merely because a source calls its convention Bunge: reported Bunge Euler angles are copied directly when the frames agree. The distinction is developed in MTEX vs. Bunge Convention.

• Which crystal and specimen frames? The alignment between Cartesian crystal axes and lattice axes belongs to the crystalFrame loaded above; see The Crystal Reference System. The file documentation must also say which physical specimen directions its axes denote. The explicit plotting convention on this page states TD upward and RD to the right; it does not infer those directions from the three columns.

A known direction provides the strongest check. Verify that one indexed crystal direction maps to the specimen direction observed in the experiment. A plausible pole figure alone cannot distinguish every wrong combination of convention and frame.

References

• H.-J. Bunge, Texture Analysis in Materials Science: Mathematical Methods, Butterworths, English ed., 1982, establishes the Euler-angle convention used in texture analysis.
• G. Nolze, Euler angles and crystal symmetry, Crystal Research and Technology 50, 188–201, 2015, explains why unit-cell settings and specimen axes can give different Euler triplets for the same orientation.
• D. Rowenhorst et al., Consistent representations of and conversions between 3D rotations, Modelling and Simulation in Materials Science and Engineering 23, 083501, 2015, gives reproducible conversion rules for Euler angles, matrices, axis–angle pairs, and quaternions.
• ISO 24173:2024, Microbeam analysis – Guidelines for orientation measurement using electron backscatter diffraction, covers reliable and reproducible orientation measurements when a list originates from EBSD.

Next

Writing orientations back to a file is Export. Orientations measured on a grid across a specimen are imported as a map instead; see Importing EBSD Data.

Technical Details

MATLAB’s generic importer ignores 'radians' and guesses the unit from the values (degrees only when an angle exceeds 15), applies 'passive' twice so that it has no effect, and fails on the quaternion columns it advertises; its page warns about all three. The port reads the unit it is told, inverts once, and reads the quaternion columns.
