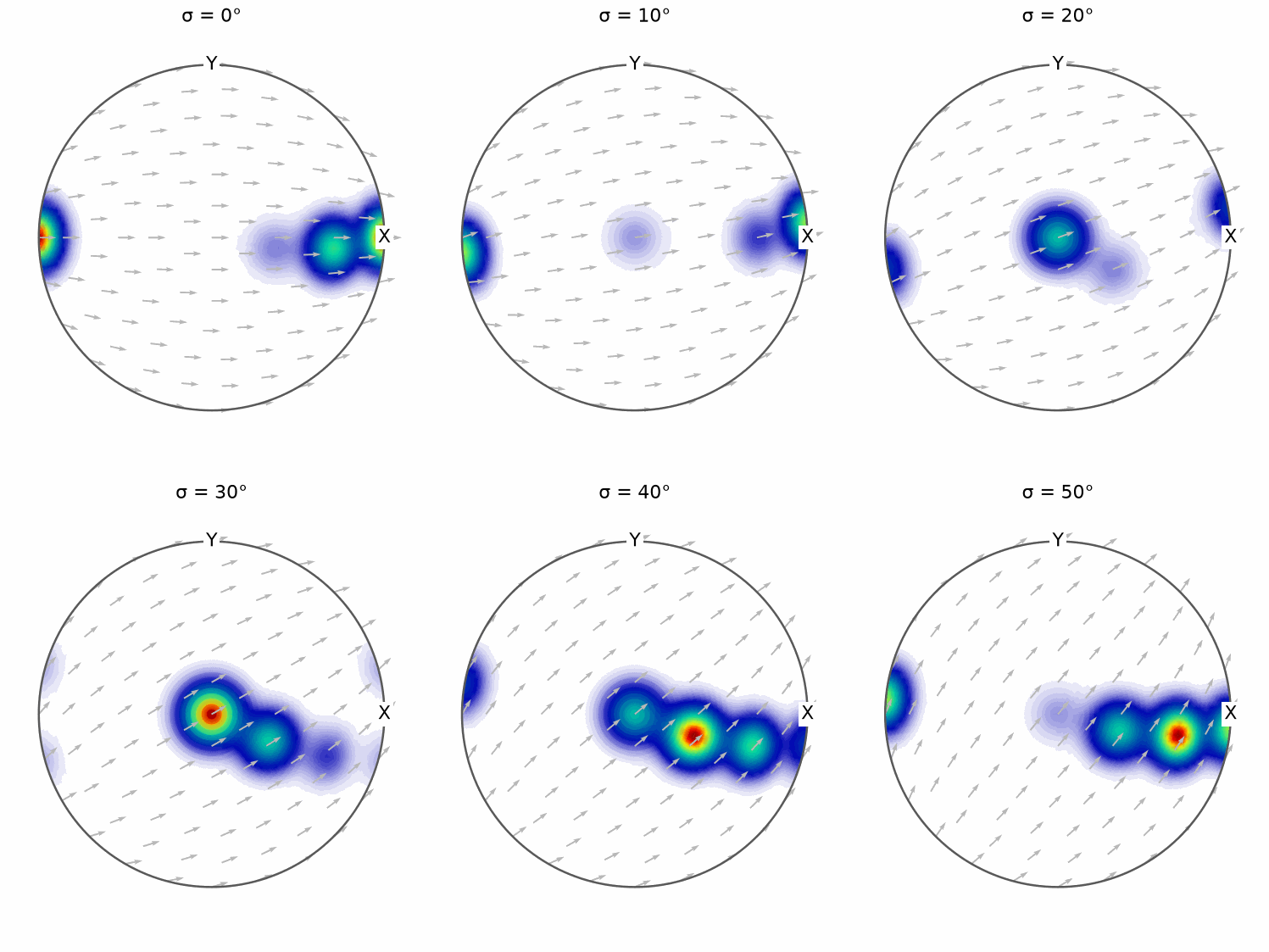

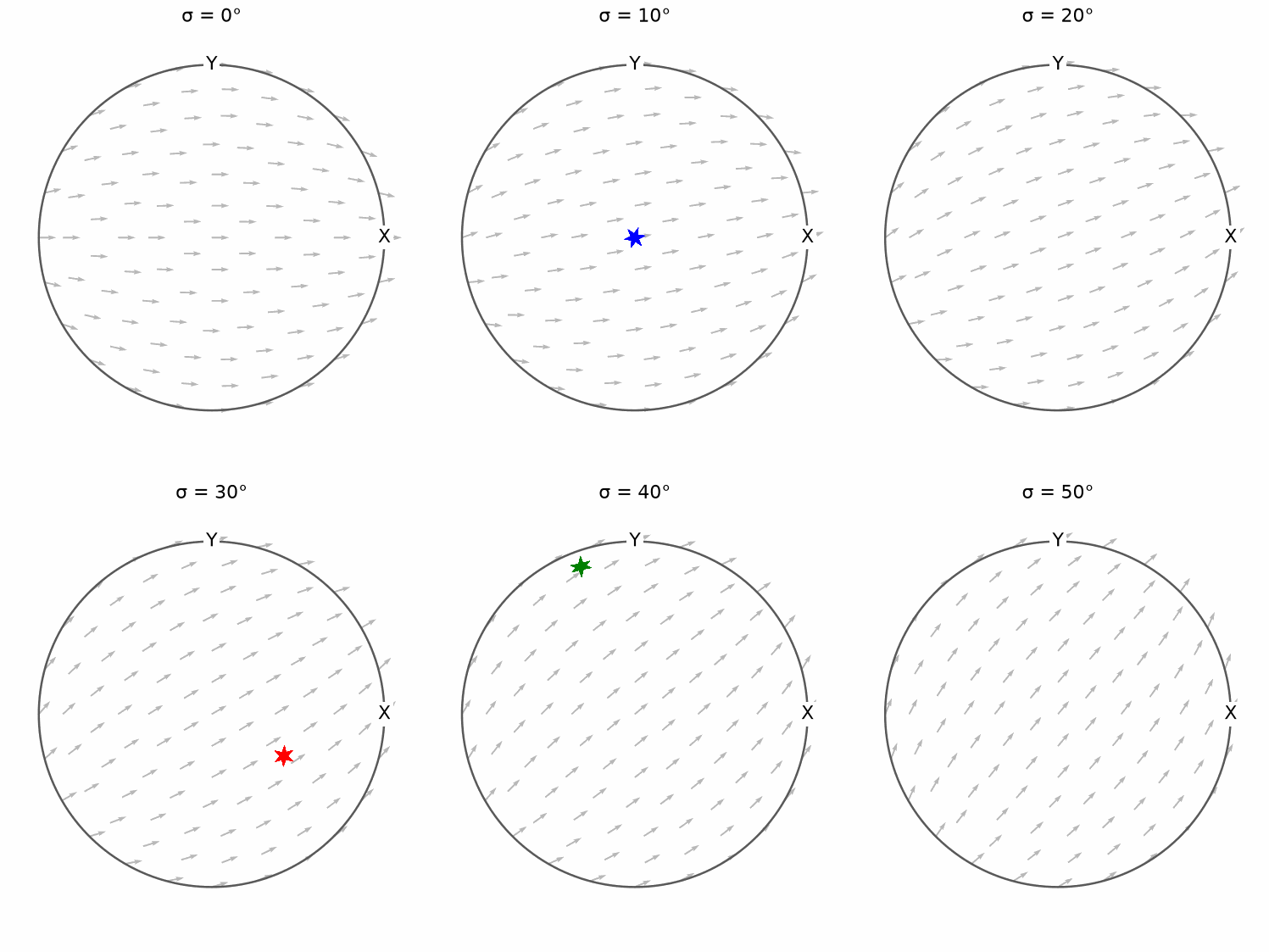

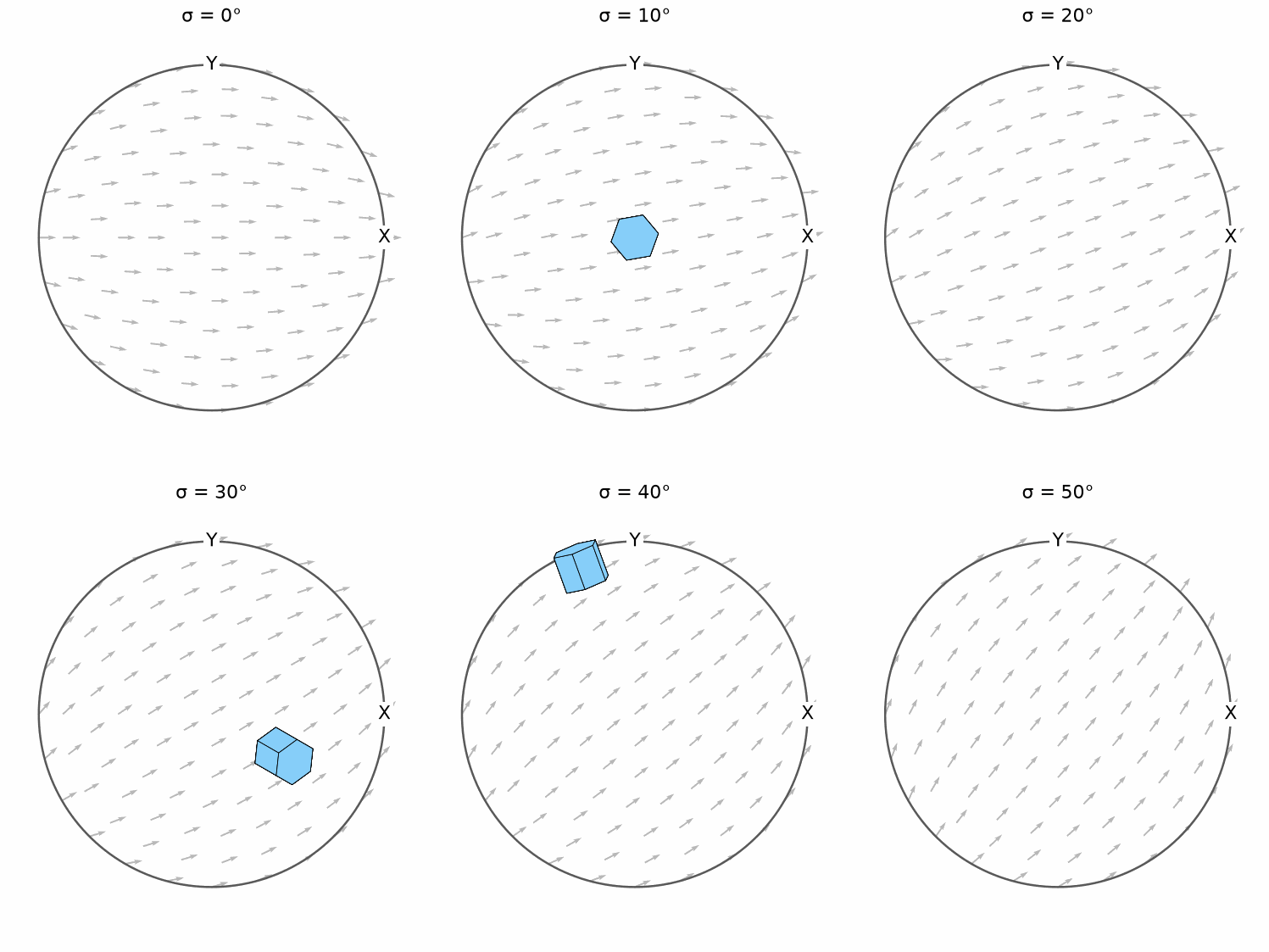

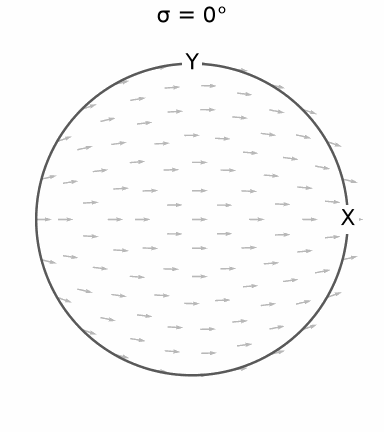

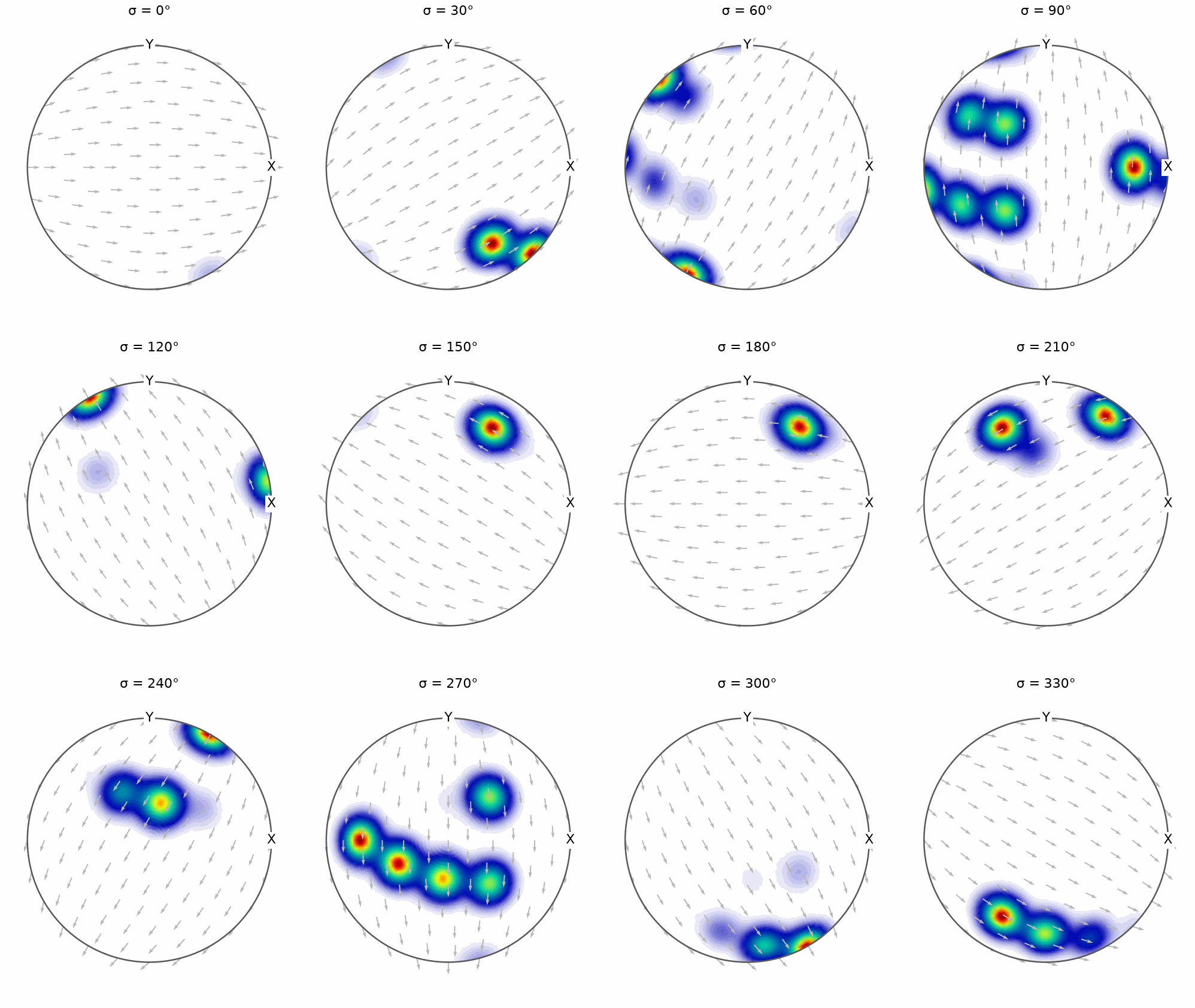

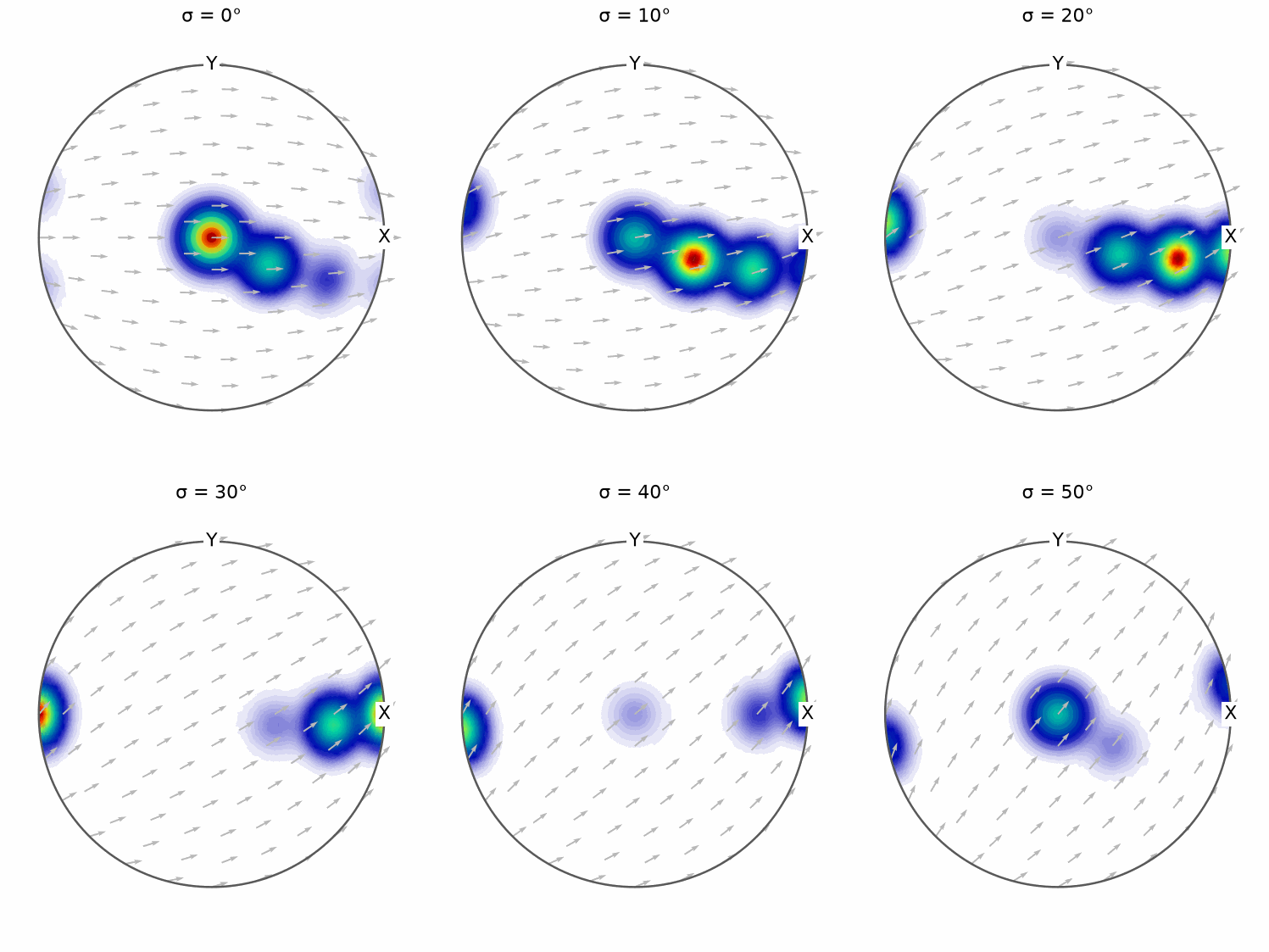

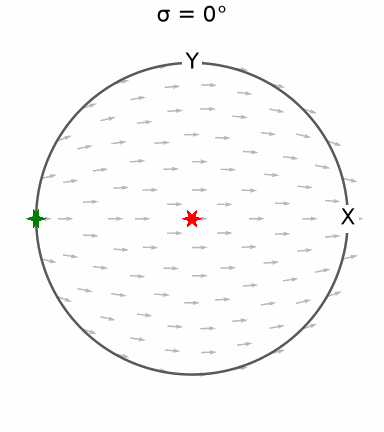

pole figure sections of the c axis split by the twist sigma of the a axis about it, the sections MATLAB’s sigma sections draw

Syntax

oS = sigmaSections(cs, ss, sections=6)
oS = sigmaSections(cs, ss, sigma=np.arange(0, 60, 10)*degree)

Input

frameA crystal reference frame
frameB specimen reference frame; None uses the default
h1 first crystal direction; default reciprocal c axis
h2 second crystal direction, defining twist about h1; default a axis; must not be parallel to h1
sections section count when explicit twist angles are omitted; default 6
values explicit twist angles in radians
tol angular assignment tolerance in radians; default 5*degree
maxOmega maximum twist angle in radians; None uses the symmetry-dependent period
kwargs twist angles may also be supplied as sigma=values

Members

sigma the sigma values of the sections

Used on

SigmaSections, TaylorModel

MATLAB’s sigmaSections
