A misorientation has an axis and an angle. The axis distribution function (ADF) keeps the crystal direction about which the rotation occurs and integrates out the angle. It is the spherical counterpart of the angle distribution and a marginal of the misorientation distribution function (MDF).
MTEX represents an ADF by an S2Fun. Start with Theory of Misorientations if symmetry-equivalent rotations and the fundamental region are unfamiliar. The kernel smoothing used below is introduced in Density Estimation.
The axis distribution of random orientations
Random crystal orientations do not produce a constant ADF. Crystal symmetry restricts every misorientation to a fundamental region. The largest permitted angle depends on the axis direction, so some axes represent more rotations than others.
calcAxisDistribution computes this
symmetry-only reference. Point group 432 gives the cubic example.
import numpy as np
from mtex import *
cs = crystalFrame('432')
adf = calcAxisDistribution(cs)
adf
S2FunHandle (432)
bandwidth hint: 128
antipodal : true
Like any spherical function, adf can be plotted, evaluated, and integrated. The
convenience command plotAxisDistribution draws the same
density. Passing both symmetries describes a same-phase pair, while antipodal applies
grain exchange symmetry.
plotAxisDistribution(cs, cs, antipodal=True)
mtexColorbar()

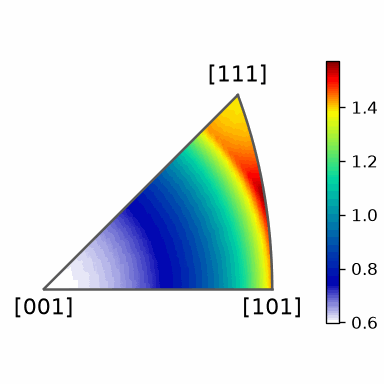

The light \([001]\) corner is the minimum. The red band towards the \([101]\)– \([111]\) edge is more probable because the fundamental region extends to larger angles there.
MTEX normalizes a density to have mean one. The numerical range and its ratio quantify the variation visible in the colour scale.
uniformRange = np.array([min(adf)[0], max(adf)[0]])
uniformRatio = uniformRange[1] / uniformRange[0]
uniformRange, uniformRatio
(array([0.5981, 1.5784]), 2.6390297639148077)
The density runs from 0.597 to 1.565 multiples of the mean, a factor of 2.620. A measured ADF must therefore be compared with this reference, not with a constant.
The axis distribution of boundary misorientations
A grain is a phase-homogeneous, spatially connected region of EBSD pixels produced by segmentation. A grain boundary is a segment between two neighbouring pixels that belong to different grains. Load the magnesium map, segment its indexed pixels at \(5^\circ\), and smooth the boundary geometry for five iterations. The plotting convention states the specimen frame used by this data set.
plottingConvention.default('y↑→x')
ebsd = mtexdata('twins', verbose=False)
grains = calcGrains(ebsd, angle=5 * degree)
grains = smoothBoundary(grains, 5)
# retain boundaries between magnesium grains
gB = grains.boundary['Magnesium', 'Magnesium']
mori = gB.misorientation
axis selects the smallest-angle symmetry-equivalent representative and returns its axis in the crystal frame. The summary reports one axis for each of the 2803 boundary segments.
axesCrystal = axis(mori)
axesCrystal
vector3d (Magnesium)
size: 2808
h k i l
2.2869 0.7481 -3.035 0.8841
2.2657 0.7759 -3.0416 0.8978
1.6211 1.5877 -3.2088 0.0292
1.6054 1.6034 -3.2089 0.0142
1.5557 0.0844 -1.6401 4.2605
⋮ ⋮ ⋮ ⋮
1.6377 1.5704 -3.2081 0.0986
1.656 1.5521 -3.2081 0.0642
1.6592 1.5489 -3.2081 0.0483
1.6592 1.5489 -3.2081 0.0483
1.6054 1.603 -3.2084 0.0944
Each boundary segment contributes once by default. Passing its segLength as a weight
instead estimates a distribution by boundary trace length. The \(5^\circ\) halfwidth
controls the spherical kernel smoothing.
plotAxisDistribution(mori, contourf=True, halfwidth=5 * degree, weights=gB.segLength)
mtexColorbar()

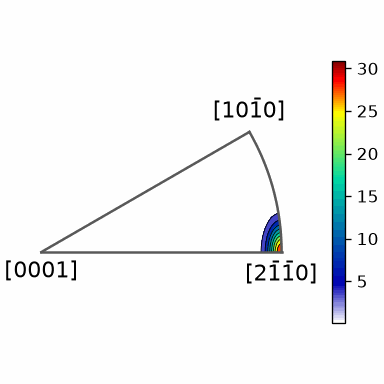

The isolated maximum is the extension-twin prism axis. Computing the underlying spherical density returns a peak of 30.8 multiples of the mean and prints the indexed direction at that peak.
peakDensity, twinAxis = max(calcDensity(axesCrystal, halfwidth=5 * degree, weights=gB.segLength))
peakDensity
30.8638
indexedTwinAxis = round(twinAxis)
indexedTwinAxis
vector3d (Magnesium)
antipodal: true
h k i l
2 -1 -1 0
The symmetry-only reference for magnesium
Use the two symmetries stored with the misorientation to plot the random reference for the same problem.
plotAxisDistribution(mori.CS, mori.SS, antipodal=True)
mtexColorbar()

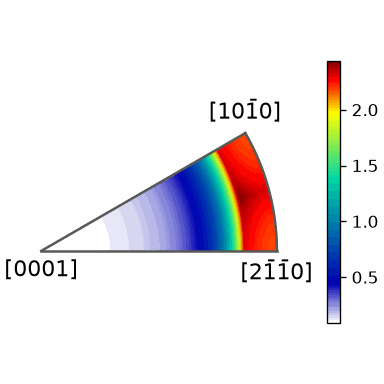

This reference is not essentially flat. It has the broad variation caused by hexagonal symmetry, but it has no isolated peak at the twin axis. The comparison separates a preferred boundary relationship from the geometry of the misorientation fundamental region.
An ADF has discarded the angle, so an axis peak alone does not identify a twin law. Confirm the complete misorientation against the ideal relation, as in Twinning.
Crystal versus specimen coordinates
A reference frame is the coordinate system in which data are expressed; it is distinct from the symmetry attached to it. The crystal frame is fixed to the lattice, whereas the specimen frame is fixed to the sample. The crystal-coordinate ADF above asks which lattice direction is the axis.
Passing two orientations separately to plotAxisDistribution asks where that axis points
in the specimen frame. The two EBSD ids stored for every segment recover the orientations
on its two sides. A segment that smoothing simplified or resampled no longer runs between
one pair of pixels, and the port leaves its ids empty, so the pairs are read from the
boundaries smoothed without those two stages, as the help of smoothBoundary advises.
gBp = smoothBoundary(calcGrains(ebsd, angle=5 * degree), 5, simplify=False, refine=False)
gBp = gBp.boundary['Magnesium', 'Magnesium']
ori1 = ebsd['id', gBp.ebsdId[:, 0]].orientations
ori2 = ebsd['id', gBp.ebsdId[:, 1]].orientations
plotAxisDistribution(ori1, ori2, contourf=True, halfwidth=5 * degree, weights=gBp.segLength)
mtexColorbar()

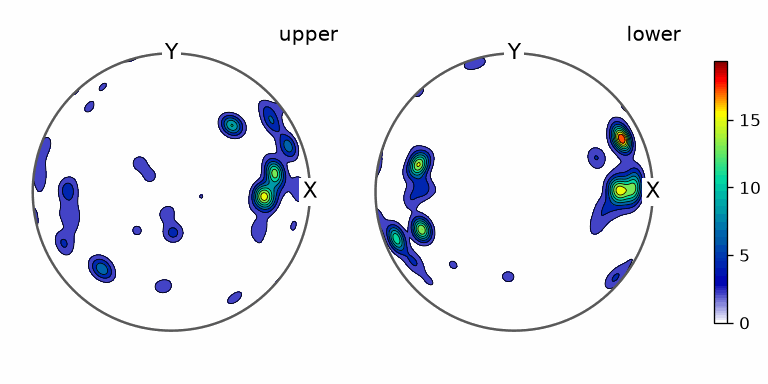

The directed axes occupy the full sphere because the stored first and second sides fix an order and the specimen symmetry is trivial. The single crystal direction becomes several specimen-frame clusters because each grain carries that lattice direction into a different sample direction.
For an unordered same-phase population, add antipodal to identify opposite specimen
directions. Tilt and Twist Boundaries uses the
specimen-coordinate axis to classify boundaries.
The texture-dependent uncorrelated reference
There are three distinct comparisons. The measured boundary ADF is correlated because its grains touch. A symmetry-only ADF assumes random orientations. Between them lies the uncorrelated ADF predicted by the measured texture when grain orientations are paired independently.
Estimate the magnesium ODF from grain mean orientations. Area weights make this a
sampled-area texture rather than a one-grain-one-vote texture. The Fourier flag selects
the harmonic representation used efficiently by calcMDF.
mgGrains = grains['Magnesium']
odf = calcDensity(mgGrains.meanOrientation, weights=mgGrains.area, halfwidth=10 * degree, Fourier=True)
mdf = calcMDF(odf)
adfTexture = calcAxisDistribution(mdf)
plot(adfTexture, upper=True, antipodal=True)
mtexColorbar()

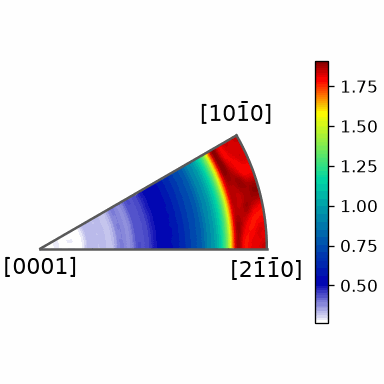

The texture-dependent reference has broad symmetry-related maxima, but it lacks the boundary distribution’s sharp twin-axis peak. Texture alone, under independent pairing, therefore does not explain that boundary population.
Axis and angle remain coupled in the MDF
The ADF and angle distribution are separate marginals. Peaks in the two plots need not belong to the same misorientations, and the two marginals cannot reconstruct the full MDF.
For an MDF \(f(\mathbf{h},\omega)\), MTEX evaluates the full-angle ADF as
\[A(\mathbf{h}) = \frac{2N}{\pi}\int_0^{\omega_{\max}(\mathbf{h})} f(\mathbf{h},\omega)\sin^2(\omega/2)\,\mathrm{d}\omega.\]Here \(\mathbf{h}\) is the axis, \(\omega\) is the angle, and \(N\) accounts for the symmetry copies represented by the fundamental region. The upper limit \(\omega_{\max}(\mathbf{h})\) is why a uniform MDF has a non-constant ADF.
calcAxisDistribution accepts minAngle and
maxAngle to study an angle window. Its resolution option is the angular quadrature
step; reduce it when a narrow window must be integrated to better than percent accuracy.
The axis-angle description is singular at zero angle. Small orientation errors can therefore produce large axis errors for low-angle rotations. Restrict the angle range before interpreting a low-angle axis maximum.
References
- A. Morawiec, Distributions of Misorientation Angles and Misorientation Axes for Crystallites with Different Symmetries, Acta Crystallographica A 53 (1997), 273–285.
- F. Basson, Probabilities of Random Disorientation Axes in Cubic Polycrystals, Journal of Applied Crystallography 30 (1997), 102–106.
- A. Morawiec, Orientations and Rotations: Computations in Crystallographic Textures, Springer, 2004, chapter 7.
- A. Morawiec, On the Magnitude of Error in the Determination of Rotation Axes, Journal of Applied Crystallography 57 (2024), 1059–1066.
Next
Angle Distribution keeps the angle and integrates out the axis. Return to Misorientation Distribution Function when the coupling between axis and angle matters. Continue to Grain Boundaries when the boundary plane and trace must be considered as well.
Technical Details
The symmetry-only ADF is computed in closed form here, from the largest angle of the fundamental region about each axis, where MTEX expands it in harmonics up to bandwidth
- The exact minimum and maximum are 0.598 and 1.578; the expansion rounds the maximum down to 1.565.
Which side of a segment is first follows the numbering of the grains, the smaller id first. MATLAB numbers the grains along the y rows of the map first, the port along x, so many segments swap sides between the two and the directed specimen-frame axes of those segments reverse; the picture above differs from MATLAB’s by that, while every undirected distribution on this page agrees.
