Fitting the Orientation Relationship

An orientation relationship (OR) is the rotation that relates the parent crystal frame to the child crystal frame during a phase transition. calcParent2Child estimates this rotation when only the child phase remains in an EBSD map.

The fit uses misorientations between neighbouring child grains. It assumes that most retained pairs are variants from a common parent grain. This page first fits and checks an OR, then explains the objective and the convergence of the algorithm. The full derivation and implementation decisions are recorded in docs/adr/0005-parent-to-child-fit.md.

plottingConvention.default('y↑→x');

Prepare the child-grain pairs

Load the martensite map and segment its bcc measurements into grains. A grain is a phase-homogeneous, spatially connected region of EBSD pixels.

mtexdata martensite

[grains,ebsd] = calcGrains(ebsd,'angle',3*degree,'minPixel',2,'alpha',12);

job = parentGrainReconstructor(ebsd,grains);
csParent = job.csParent;
csChild = job.csChild;

ebsd = EBSDsquare (y↑→x, row↑→col)

 Phase  Orientations         Mineral         Color  Symmetry  Crystal reference frame
     0   92415 (27%)      notIndexed          none
     1  251187 (73%)  Iron bcc (old)  LightSkyBlue       432

 Properties: bands, bc, bs, error, mad, reliabilityindex, oldId
 Scan unit : um
 X × Y × Z : [0 → 353] × [0 → 242] × [0 → 0]
 Normal vector: (0,0,1)
 Square grid  :486 × 707

neighbors returns pairs of child grains that share a boundary. The mean orientations of each pair give one child-to-child misorientation.

grainPairs = neighbors(job.grains(csChild));
oriChild = job.grains(grainPairs).meanOrientation;
mori = inv(oriChild(:,1)) .* oriChild(:,2);

Pairs below 5 degrees are usually subgrain boundaries or the same variant. They cannot constrain the OR and are removed before fitting.

mori(mori.angle < 5*degree) = [];

Fit from all possible starting regions

An ideal Kurdjumov-Sachs (KS) relationship is a useful initial candidate. By default, calcParent2Child also scans the complete fundamental region. It refines the best candidates and returns the one with the lowest misfit.

p2cKS = orientation.KurdjumovSachs(csParent,csChild)
[p2cGlobal,fitGlobal] = calcParent2Child(mori,p2cKS);
p2cGlobal

p2cKS = misorientation (Iron fcc → Iron bcc (old))

 (111) || (011)   [101̅] || [111̅]


p2cGlobal = misorientation (Iron fcc → Iron bcc (old))

  Bunge Euler angles in degree
     phi1     Phi    phi2
  96.5525 45.6916 272.976

Inspect the residuals

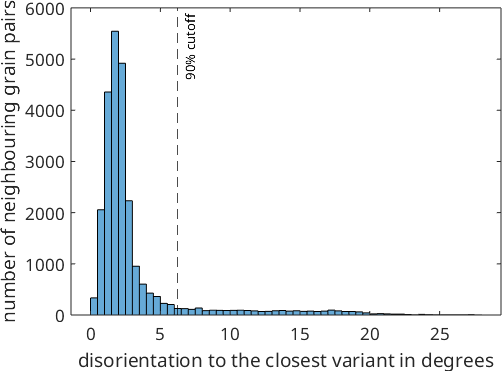

The second output contains one residual for every input misorientation. A residual is the disorientation to the closest predicted child-to-child variant, excluding the identity variant.

close all
histogram(fitGlobal./degree)
hold on
xline(quantile(fitGlobal,0.9)./degree,'--k','90% cutoff')
hold off
xlabel('disorientation to the closest variant in degrees')
ylabel('number of neighbouring grain pairs')

Notice the main population at small residuals and the longer tail. Not every neighbouring pair belongs to one former parent grain. The default fit therefore uses the best 90 percent rather than allowing the tail to pull an ordinary mean away from the main population.

The 'quantile' option changes that retained fraction. The 'threshold' option caps the loss of larger residuals. Use a threshold in degrees only when the experiment supplies a defensible angular tolerance; otherwise the default quantile needs no new scale.

Compare local and global fits

The 'local' option skips the scan and starts the fixed-point iteration at the supplied relationship. It is useful when the starting OR is already trusted.

p2cLocal = calcParent2Child(mori,p2cKS,'local')
localToGlobal = angle(p2cLocal,p2cGlobal)./degree

p2cLocal = misorientation (Iron fcc → Iron bcc (old))

  Bunge Euler angles in degree
    phi1     Phi    phi2
  348.14 10.2947 55.8811

localToGlobal =
    1.4594

The printed value is the angular separation of the two fitted ORs. The global solution is a good degree away from the KS-started local result and gives the lower objective value. That difference is not negligible when habit planes are computed from the fitted relationship.

Nishiyama-Wassermann, Pitsch, and Greninger-Trojano starting relationships all reach the better basin on this map; Kurdjumov-Sachs does not. The complete scan is therefore the default. The supplied starting OR remains one candidate, so scanning cannot discard a better local result. It costs about two and a half times one local fit on this data.

The scan is deterministic. Its subsamples stride through an angle-sorted list instead of drawing at random, so repeated fits to the same data return the same result. A local fit reaches a stationary point rather than a guaranteed best fit, so its starting relationship can decide the answer. Use 'local' when refining a trusted OR or fitting many small data sets in a loop, where the fixed cost of the scan dominates.

The model: child variants determine the observed misorientations

A variant is one crystallographically equivalent child orientation predicted from a single parent orientation by a known OR. For a parent orientation oriParent, the possible child variants have the form p2c * S, where S runs through the parent point group.

Two child grains from one parent may select different variants. Their possible child-to-child misorientations are the following set.

p2cVariants = reshape(p2cGlobal.variants,[],1);
c2c = p2cGlobal * inv(p2cVariants)

c2c = misorientation (Iron bcc (old) → Iron bcc (old))
  size: 1 × 24

In symbols, each member is p2c * inv(S) * inv(p2c). This is the parent point group conjugated by p2c. Conjugation leaves the rotation angles unchanged. Without child symmetry reduction, a cubic parent supplies only 0, 90, 120, and 180 degree rotations.

unique(round(angle(c2c,'noSymmetry')./degree))

ans =
     0    90   120   180

Only the rotation axes depend on the OR. Child symmetry reduces each misorientation to its disorientation, which spreads those four angles into the longer list below. The list belongs to the fitted relationship, not to ideal KS, whose disorientation angles are 10.53, 14.88, 20.61, 21.06, 47.11, 49.47, 50.51, 51.73, 57.21, and 60 degrees.

unique(round(angle(c2c)./degree,2)).'

ans =
         0
    4.4500
    9.4200
   12.5600
   15.2400
   17.3600
   17.7800
   50.9800
   51.4600
   52.1200
   52.5100
   52.8500
   55.8400
   56.5400
   57.0200
   59.6700
   60.3100

See the axis fit

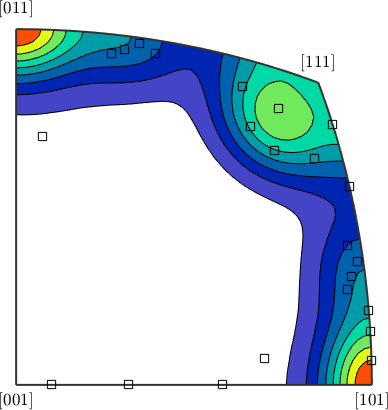

The coloured density shows axes of the measured child-to-child misorientations. Black squares mark axes predicted by the fitted OR.

plot(mori.axis,'contourf','fundamentalRegion','halfwidth',5*degree)
hold on
isInformative = angle(c2c) > 1e-3*degree;
plot(c2c(isInformative).axis,'Marker','s','MarkerFaceColor','none',...
  'MarkerEdgeColor','k','MarkerSize',8)
hold off

Notice that the black squares lie on the main measured axis clusters. Fitting an OR is therefore mainly an axis-alignment problem: it rotates the parent's symmetry axes onto those observed clusters.

The predicted set also contains the identity rotation at zero degrees. It is produced by S = identity for every possible OR and carries no information about the fit. calcParent2Child excludes this identity variant.

The objective function

For a candidate OR, the residual of each observation is its disorientation to the closest informative child-to-child variant.

omega = min(angle_outer(mori,c2c(isInformative)),[],2);

calcParent2Child minimises a trimmed chordal misfit. It averages 1 - cos(omega) over the best quantile fraction of the observations, which is 90 percent by default. This robust objective limits the influence of pairs from different parents.

The misfit is unchanged when p2c is multiplied by child symmetry on the left or parent symmetry on the right. Its search domain is therefore the misorientation fundamental region of the phase pair. For cubic-to-cubic symmetry its volume is 8*pi^2/(24*24), or about 0.137 radians cubed. The domain is only three-dimensional, which makes a complete scan practical.

The fixed-point algorithm

Each observation becomes a direct measurement of the OR once a variant has been assigned. If mori exactly equals the variant c2c(k), the following product returns p2cGlobal itself.

k = 5;
c2c(k) * p2cVariants(k)

ans = misorientation (Iron fcc → Iron bcc (old))

  Bunge Euler angles in degree
     phi1     Phi    phi2
  96.5525 45.6916 272.976

A noisy observation therefore votes for an OR near the true one. Averaging many such votes averages away part of the noise. One iteration performs four operations:

The vote depends on the current p2c, so this is a fixed-point iteration rather than a descent step. The misfit need not decrease at every step. The implementation therefore backtracks whenever a full step does not lower the objective.

Why the iteration converges

Write p2c = pStar * exp(xi) for a small error xi around the solution. A vote from variant k has error R_k' * xi, where R_k is the matrix of the corresponding parent symmetry operation. One iteration maps the error with

\[A = \sum_k w_k R_k^{\prime},\]

where w_k is the fraction assigned to variant k. The matrix A is an average of rotation matrices, so its norm cannot exceed one and the local iteration cannot diverge.

For evenly populated variants, the parent-group matrices sum to zero.

R = csParent.properGroup.rot;
Aeven = zeros(3);
for j = 1:length(R)
  Aeven = Aeven + matrix(R(j));
end
norm(Aeven)

ans =
   1.9307e-15

This cancellation follows from group theory. The three-dimensional vector representation of the cubic rotation group has no copy of the trivial representation. A martensitic microstructure usually populates many variants, so the error contracts in only a handful of iterations.

Removing the identity operation gives A = -I/23 for even occupancy. Its convergence rate is therefore 1/23 per iteration. On this map the variant occupancies range from 1.5 to 12 percent, and the measured local rate is about 0.24 per iteration.

The iteration stalls only if A has an eigenvalue with modulus one. That requires every populated variant to share a common rotation axis. Two populated variants with non-parallel axes are enough to rule this out.

What the classical damping factor does

Classical implementations average the old and new estimates, using a weight alpha on the old estimate. In the linearised error map this replaces A by

\[(\alpha I + A)/(1 + \alpha).\]

An eigenvalue lambda becomes (alpha + lambda)/(1 + alpha). The damping factor can therefore cancel a negative real eigenvalue exactly. This explains the traditional alpha = 1/numSym(csParent) default. For even occupancy the eigenvalue is -1/23, and 1/24 nearly cancels it.

Its benefit depends on the spectrum of A:

The last row is the important counterexample. Fourfold operations give A complex eigenvalues, and a real shift cannot move that conjugate pair towards zero. Damping treats oscillation along a direction, not rotation between directions.

On this map the eigenvalues are -0.238, -0.099, and 0.021. Theory predicts that alpha = 0.11 would roughly halve the asymptotic rate. Measured from several starting points, however, no tested damping shortened the fit. Undamped fits needed 12, 23, and 18 iterations. With alpha = 1/24 they needed 13, 24, and 19 iterations. With alpha = 1/4 they needed 15, 22, and at least 25 iterations. The middle alpha = 1/4 fit had not converged at the iteration cap. All runs stopped at the same misfit.

The asymptotic rate governs only the final digits. Early iterations are dominated by changing variant assignments and changing membership of the trimmed set. Damping merely shortens those early steps. MTEX therefore leaves the iteration undamped and uses backtracking for steps that do not descend.
